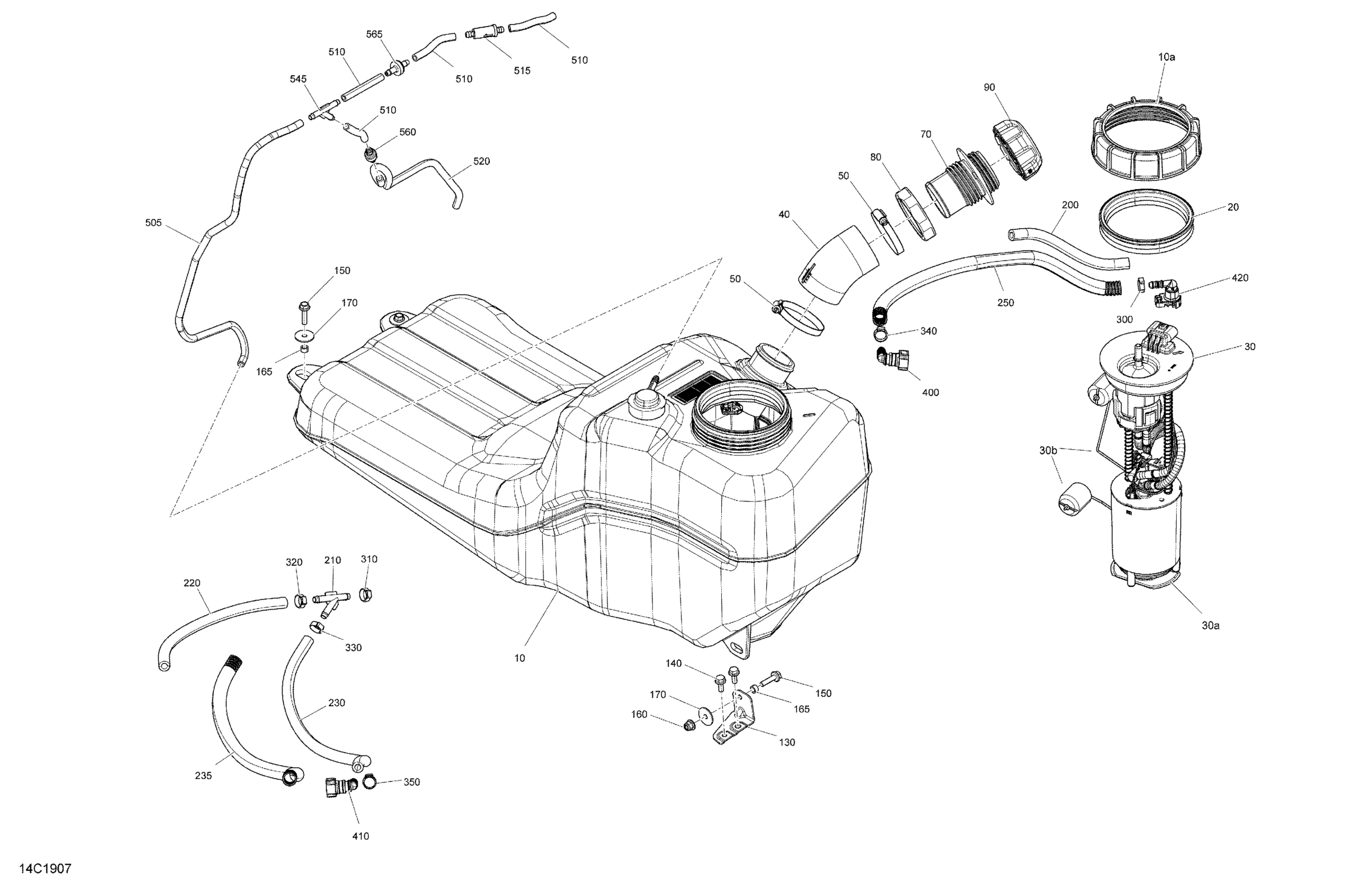

Can-Am Maverick Sport 1000R - XMR - 2019 Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$401.51

10a

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30

Fuel Pump | Includes 30 to 30b

709001056

$349.97

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$138.43

40

Fil Neck Hose

709000828

$32.28

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Filler Neck Nut, Fuel

211100012

$10.02

90

Fuel Cap

709000868

$32.28

130

Tank Bracket

709000997

$5.52

140

Hex. Flange Screw M6 X 16

207661644

$0.61

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$1.66

165

Bushing | DS 650 X

293900104

$5.26

170

Washer M6

250200029

$1.83

200

Was 709000163 Fuel Line

219704440

$108.43

210

Y-Fitting, 5/16''

293710136

$6.45

220

Was 709000163 Fuel Line

219704440

$108.43

230

Was 709000163 Fuel Line

219704440

$108.43

235

Tubing 16 Mm 1000Mm Long

219704408

$6.23

250

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp, 15.3-706R

293650047

$2.64

310

Crimp Clamp, 15.3-706R

293650047

$2.64

320

Crimp Clamp, 15.3-706R

293650047

$2.64

330

Crimp Clamp, 15.3-706R

293650047

$2.64

340

Crimp Clamp, 15.3-706R

293650047

$2.64

350

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Quick Attach 90°

275500700

$12.61

410

Quick Attach 90°

275500700

$12.61

420

Quick Disconnect

275500921

$12.61

505

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

510

Polyurethane Hose 10000Mm Long

219704410

$46.12

515

Filter

709000330

$8.29

520

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

545

Y-Fitting

293710059

$8.19

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57
