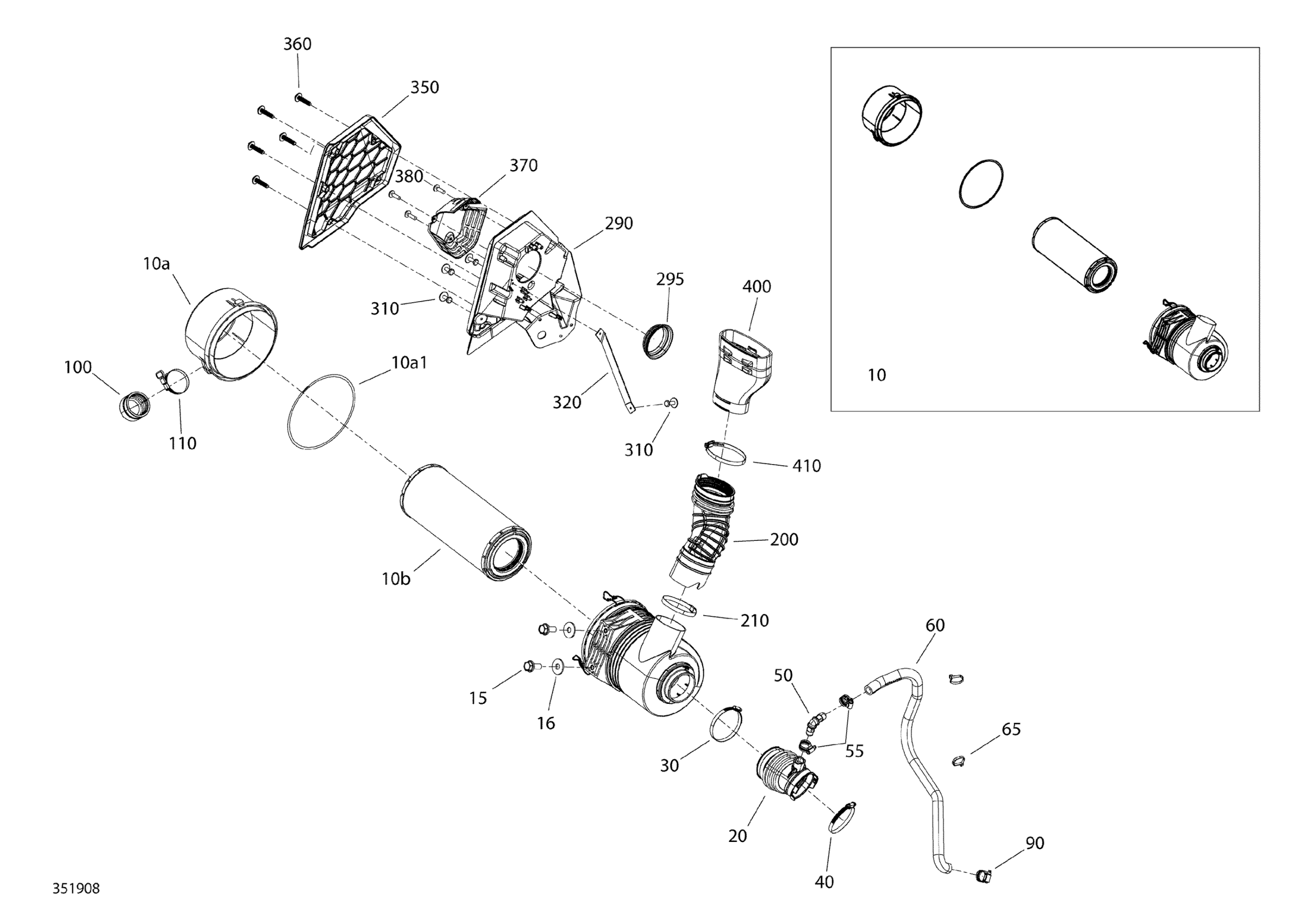

Can-Am Maverick Sport 1000R - XMR - 2019 Air Intake 0006FKD00 Diagram

#

Description
Price

10

Air Box | Includes 10 to 10b

707800720

$184.58

10a

Silencer-Air Cover | Includes 10a to 10a1

715900528

$87.66

10a1

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$23.05

10b

Air Filter

715900422

$50.34

15

Hex. Flange Screw M8 X 20

207682044

$0.92

16

Flat Washer 8 mm

234082410

$1.11

20

Air Intake Adapter

707800754

$27.66

30

Norma Clamp

293650096

$3.09

40

Norma Clamp

293650091

$4.60

50

Elbow Fitting 90

293710155

$8.45

55

Tridon Gear Clamp

293650173

$2.46

60

Blow-By Hose

707800755

$27.66

65

Tie Wrap 368 mm

293750008

$0.85

90

Tridon Gear Clamp

293650173

$2.46

100

Vacuator Cap

707800769

$36.89

110

Turn Key Clamp

293650269

$7.37

200

Inlet Hose

707800791

$64.58

210

Norma Clamp

293650096

$3.09

290

Air Intake Box

707800865

$36.89

295

Plug

707002217

$2.75

310

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

320

Support

707800784

$5.52

350

Air Intake Grid

707800818

$46.12

360

Hex. Screw Pt K60 X 25

250000980

$1.74

370

Baffle

707800762

$16.89

380

Torx Screw K50 X 16

250000720

$1.39

400

Air Inlet Fitting

707800792

$27.66

410

Norma Clamp

293650096

$3.09
