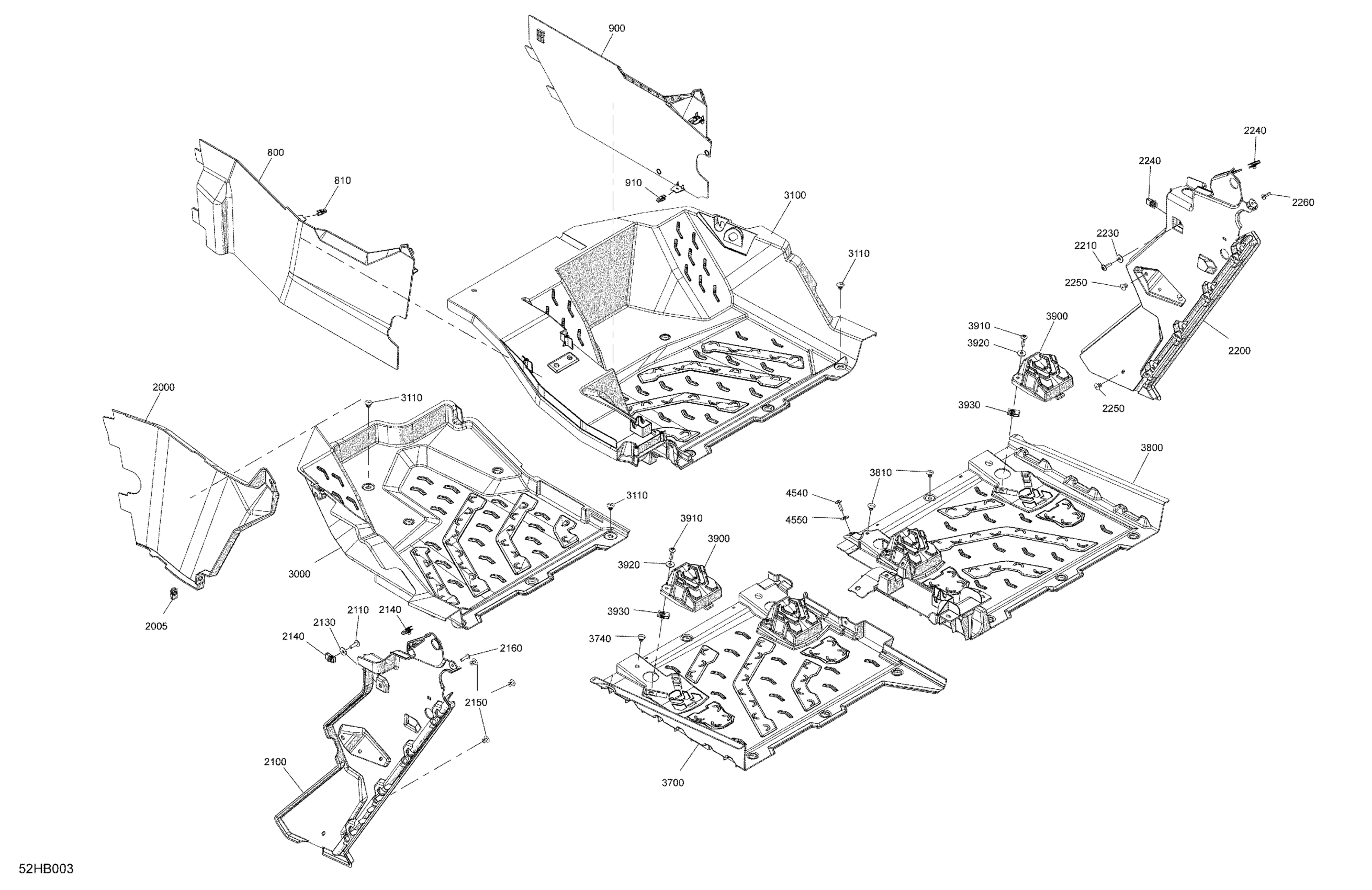

Can-Am 004 - Maverick MAX Turbo RR - XRS - CE, 2022 07- Cab Interior - Floor Diagram

Description

Price

800

LH Console Panel

707901087

$72.99

810

Clip

705010721

$2.61

900

RH Console Panel

707901088

$73.99

910

Clip

705010721

$2.61

2000

Side Panel Cover

707900477

$60.99

2005

Panel Nut M6 X 1.0

250100198

$2.11

2100

LH Central Cab Panel

707900804

$53.99

2110

Torx Screw M6 X 20

250000722

$1.68

2130

Stainless Steel Flat Washer

234062670

$2.11

2140

Panel Nut M6 X 1.0

250100198

$2.11

2150

Pop Rivet 3/16"

293150103

$0.55

2160

Torx Screw M6 X 20

250000722

$1.68

2200

RH Central Cab Panel

707900805

$53.99

2210

Torx Screw M6 X 20

250000722

$1.68

2230

Stainless Steel Flat Washer

234062670

$2.11

2240

Panel Nut M6 X 1.0

250100198

$2.11

2250

Pop Rivet 3/16"

293150103

$0.55

2260

Torx Screw M6 X 20

250000722

$1.68

3000

LH Front Floor

707900339

$67.99

3100

RH Front Floor

707900340

$67.99

3110

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3700

LH Floor

707900495

$67.99

3740

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3800

Rear Right Floor

707900496

$67.99

3810

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3900

Footrest Support

707900595

$4.09

3910

Torx Truss Screw M6 X 25

250000807

$2.11

3920

Stainless Steel Flat Washer

234062670

$2.11

3930

Panel Nut M6 X 1.0

250100198

$2.11

4540

Torx Screw M6 X 20

250000722

$1.68

4550

Stainless Steel Flat Washer

234062670

$2.11
