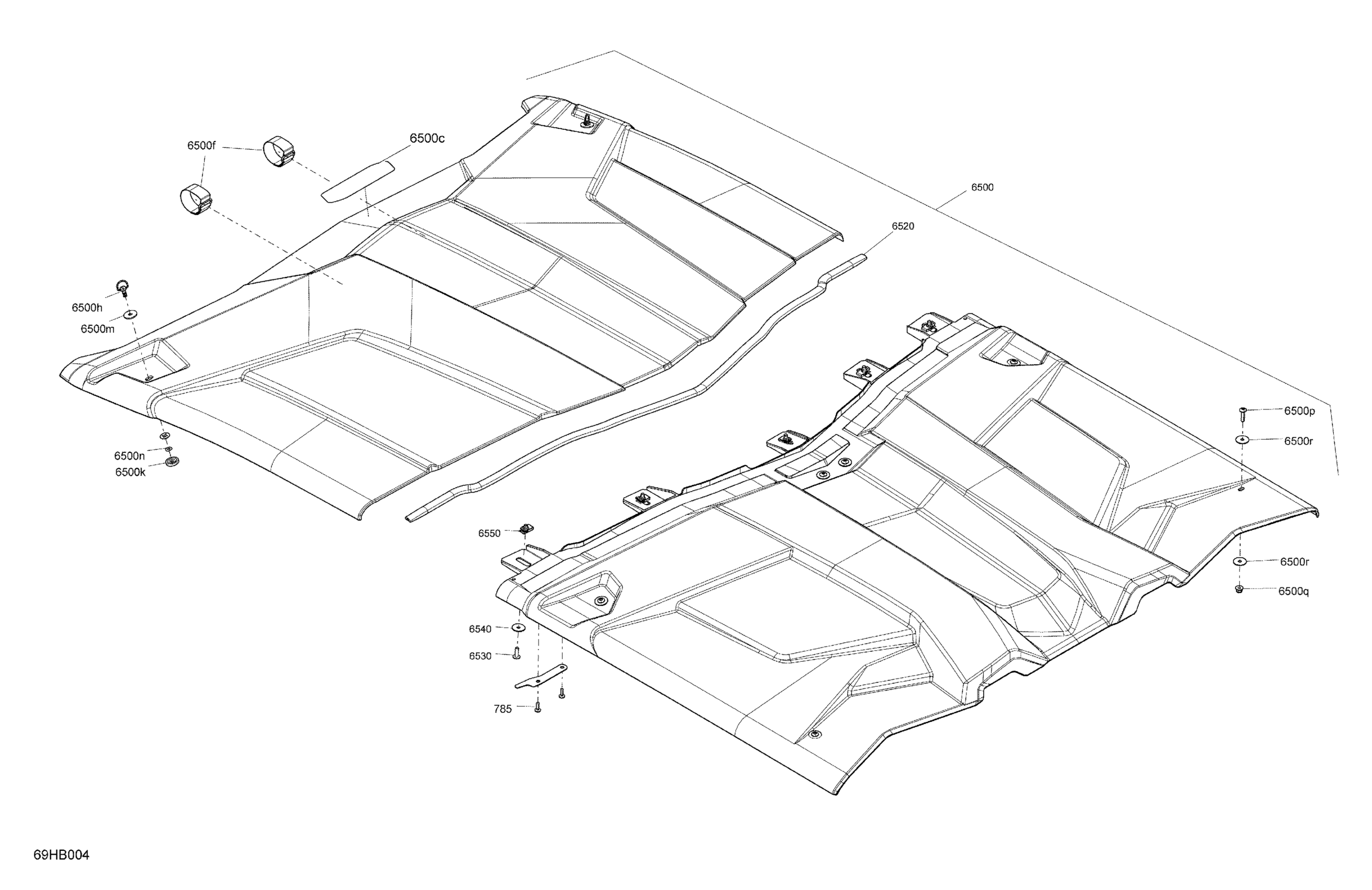

Can-Am Maverick MAX Turbo RR - XRS - CE, 2022 Body - Roof Diagram

Description

Price

6500

Max Sport Roof | Includes 6500 to 6500s

715003750

$909.99

6500c

Decal "Can-Am" | Not Shown

704904566

$9.25

6500d

Was 293250424 Seal | Model X3 Xrs

219704385

$59.97

6500e

Seal Tray 1000Mm Long

219704368

$12.91

6500f

Strap

705011280

$23.05

6500g

Quarter Turn Screw

705002649

$12.57

6500h

Quarter Turn Service Kit

715003815

$22.07

6500j

Quarter Turn Nut

705002651

$3.84

6500k

Quarter Turn Urethane Washer

705011055

$1.37

6500m

Flat Washer M6

250200165

$1.91

6500n

Washer

705002650

$2.75

6500p

Torx Truss Screw M6 X 25

250000807

$1.74

6500q

Hex. Flange Elastic Nut M6

233261466

$1.66

6500r

Washer M6

250200029

$1.83

6520

Seal

705800728

$39.20

6530

Torx Screw M6 X 20

250000722

$1.34

6540

Washer M6

250200029

$1.83

6550

Panel Nut M6 X 1.0

250100198

$1.73

785

Torx Screw K50 X 16

250000720

$1.39
