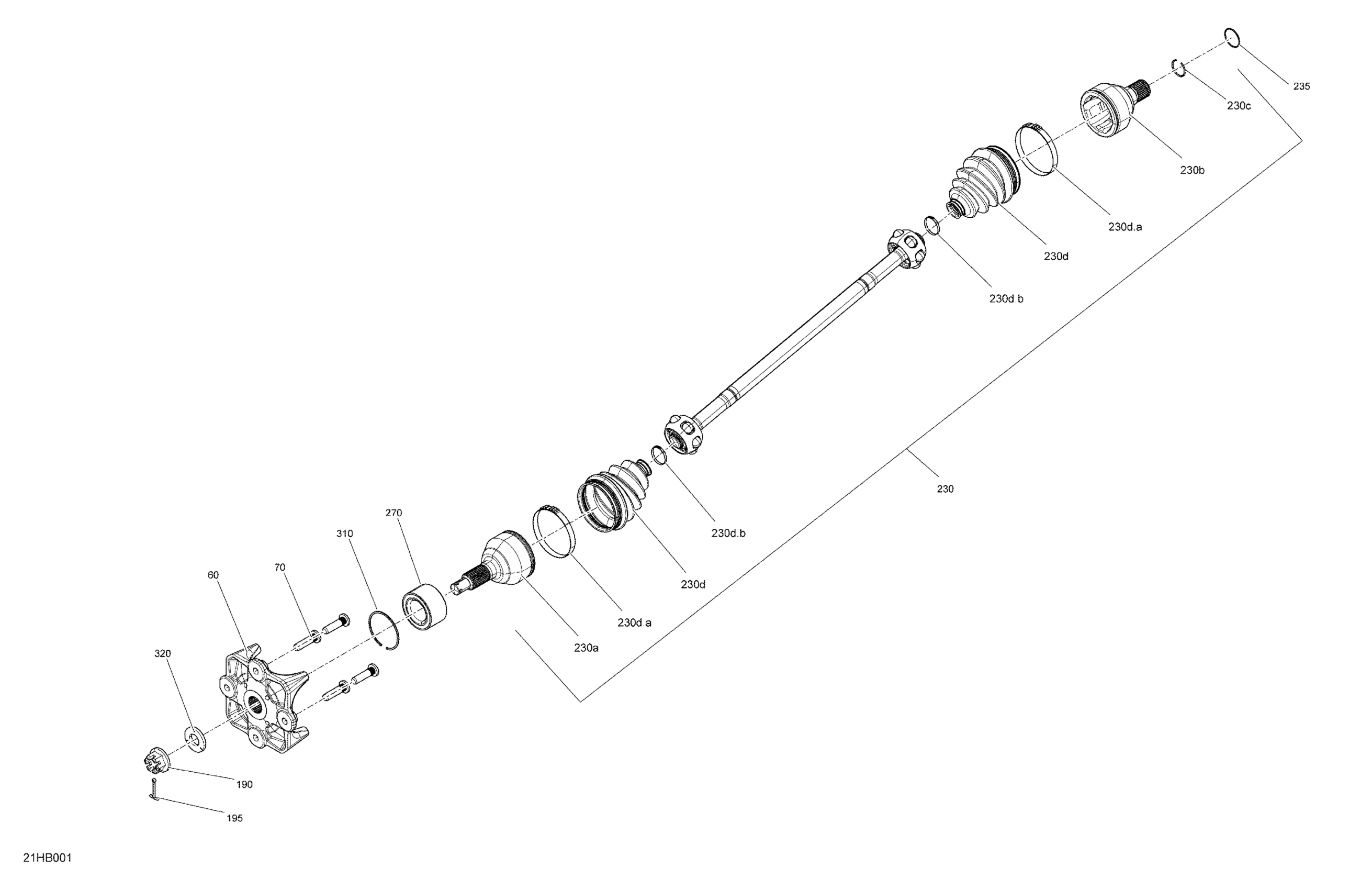

Can-Am Maverick MAX Turbo RR - XRS - CE, 2022 Drive - Rear - Common Parts Diagram

Description

Price

Wheel Hub

705502122

$116.49

Wheel Stud M12X1.5

250300625

$3.91

190

Castle Nut M20

250100193

$8.05

195

Cotter Pin

250400084

$2.29

230

Performance CV Axle - Rear | Includes 230 to 230d2

705502362

$275.49

230a

CV Joint

715900447

$259.49

230b

Plunging Joint

715900448

$259.49

230c

Circlip Joint

715900449

$5.50

230d

Boot Kit, Wheel Side | Includes 230d to 230d2

715900450

$42.49

230d.a

Oetiker Clamp, Large

715900455

$11.58

230d.b

Oetiker Clamp, Small

715900456

$5.82

235

O-Ring

293300196

$2.51

270

Ball Bearing

293350151

$71.49

310

Internal Retaining Ring

293370169

$1.37

320

Conical Spring Washer M20

250200170

$14.74
