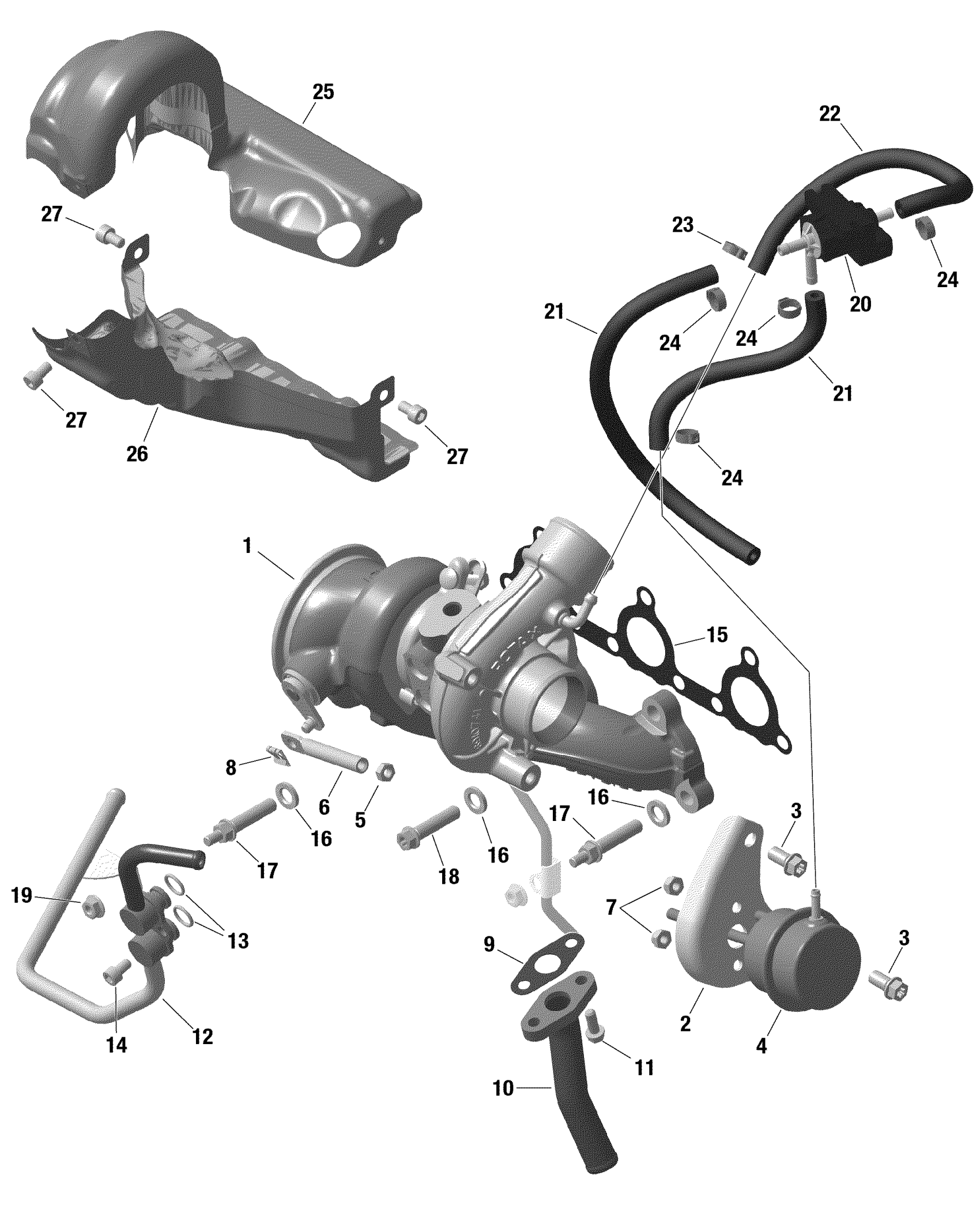

Can-Am Maverick MAX Turbo RR - XRS - CE, 2022 ROTAX - Turbocharger - Turbo RR Diagram

#

Description
Price

1

Turbocharger Ass'y | Includes no. 1-11

420893744

$1,869.99

2

Not Available As Spare Parts

XXX

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Not Available As Spare Parts

XXX

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Circlip

420845000

$1.01

9

Gasket | Included in gasket kit

420631205

$4.29

10

Oil Return Line

420456455

$66.49

11

Torx Flange Screw M6 X 16

420440164

$2.19

12

Water Cooling Tube

420822842

$158.99

13

O-Ring | Included in gasket kit

420650929

$2.24

14

Allen Screw M6 X 10

420241081

$2.11

15

Gasket | Included in gasket kit

420431850

$15.89

16

Washer

420827521

$5.50

17

Collar Screw M8 X 35

420440693

$4.79

18

Torx Flange Screw M8 X 35

420641188

$7.41

19

Hex Nut M6-10

420842890

$2.30

20

Solenoid Valve

420664636

$129.99

21

Hose 640mm

420260283

$23.99

22

Hose 640mm

420260283

$23.99

23

Gear Clamp

420851463

$7.51

24

Clamp 9.2-10.9 mm

420853133

$3.56

25

Upper Heat Shield

420975120

$229.99

26

Lower Heat Shield

420975125

$264.99

27

Allen Screw M6 X 10

420241081

$2.11
