Description

Price

1

Gear Box

420686788

$3,299.99

2

Oil Seal

420250452

$17.59

3

Oil Seal | Included in gasket set gearbox

420230137

$23.49

4

Oil Seal

420950089

$19.49

5

Crush Washer

420552280

$3.70

6

Drain Plug M18 X 1.5

420840278

$23.99

7

Oil Dipstick

420256806

$17.05

8

O-Ring

420631640

$2.11

9

Magnet

420256000

$17.99

10

Allen Screw M4 X12

420440292

$1.01

11

O-Ring

420230405

$4.55

12

Angle Of Rotation Sensor

420265122

$82.99

13

Torx Flange Screw M6 X 16

420440162

$3.17

14

Plug Screw M10X10

420241905

$2.24

15

Camshft Position Sensor Ass'y

420265727

$109.99

16

Torx Flange Screw M6 X 16

420440162

$3.17

17

Actuator Ass'y 4 pins

715900613

$319.99

17a

O-Ring

293300117

$4.44

17b

Shifting Fork

415129175

$16.49

17c

Circlip | 4X4

293370042

$3.17

18

Collar Screw M6 x 25

420441951

$2.19

19

Engine Bracket Rear Mag Side

420212638

$164.99

20

Torx Flange Screw M8 X 45

420441932

$1.79

21

Engine Bracket Front Mag Side

420212639

$26.99

22

Hex. Flange Screw M8 X 45

420641208

$7.51

23

Gear Box Bracket

420212641

$26.99

24

Torx Flange Screw M8 X 35

420440861

$3.27

25

Engine Bracket PTO Side

420212631

$174.99

26

Drive Shaft

420637600

$301.99

27

Ball Bearing

420232342

$26.49

28

Circlip

420945810

$2.11

29

Oil Seal

420831178

$35.99

30

Cover

420626990

$10.49

31

Ball Bearing

420632275

$43.49

32

Retaining Ring

420945610

$2.61

33

O-Ring | Included in gasket kit

420450393

$2.46

34

Torx Flange Screw M8 X 65

420440403

$2.19

35

Torx Flange Screw M8 X 35

420440861

$3.27

36

Support Plate

420651042

$19.99

37

Torx Flange Screw M6 X 16

420440162

$3.17

38

Tie Rap 212mm

420951346

$1.47

39

Dowel Pin 10 X 13

420929670

$11.60

40

Gasket Set

420686602

$99.49

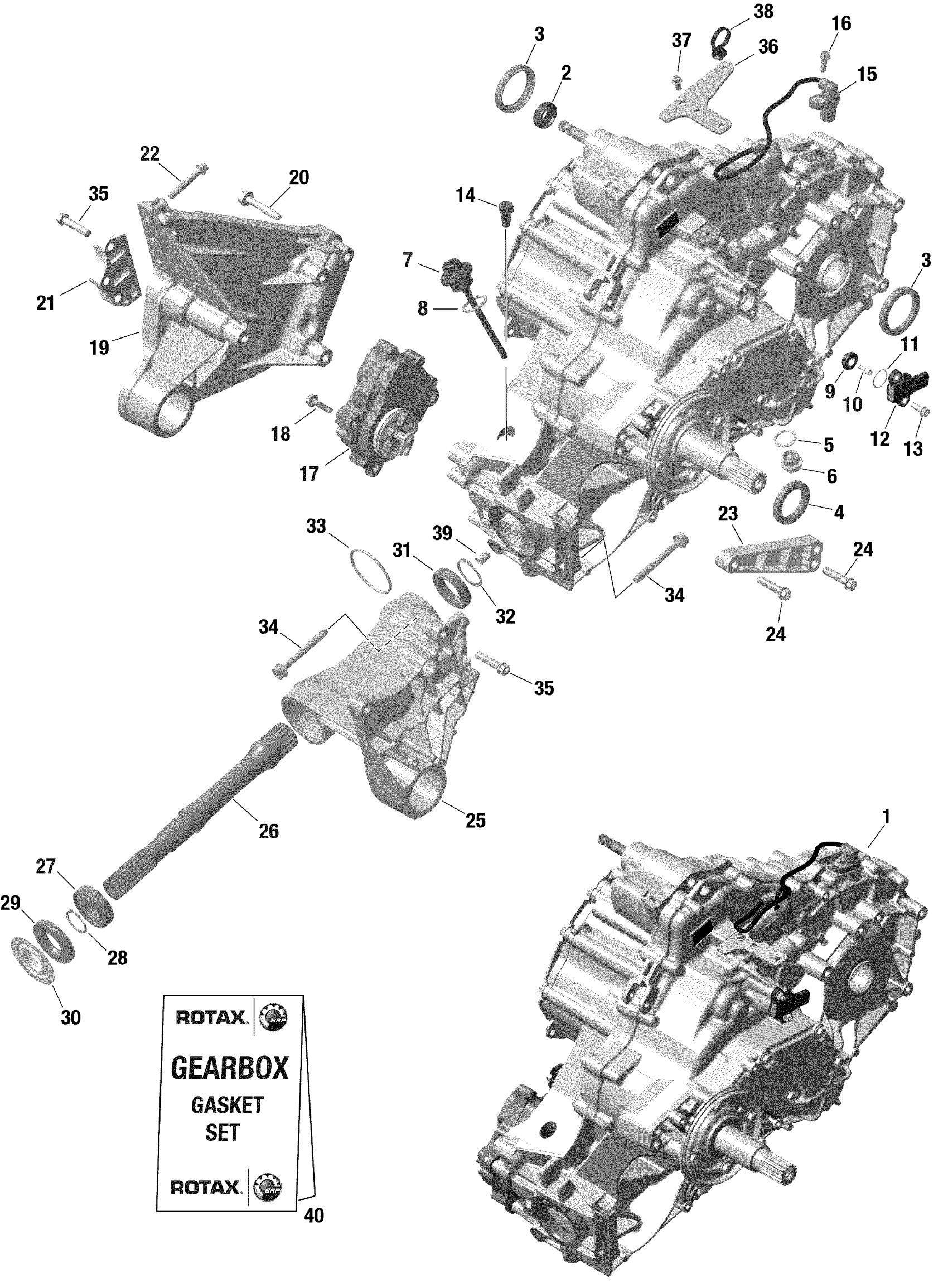

Can-Am 004 - Maverick MAX Turbo RR - XRS - CE, 2022 01- Rotax - Gear Box And Components - 509 Diagram

Gear Box

Oil Seal

Oil Seal | Included in gasket set gearbox

Oil Seal

Crush Washer

Drain Plug M18 X 1.5

Oil Dipstick

O-Ring

Magnet

Allen Screw M4 X12

O-Ring

Angle Of Rotation Sensor

Torx Flange Screw M6 X 16

Plug Screw M10X10

Camshft Position Sensor Ass'y

Torx Flange Screw M6 X 16

Actuator Ass'y 4 pins

O-Ring

Shifting Fork

Circlip | 4X4

Collar Screw M6 x 25

Engine Bracket Rear Mag Side

Torx Flange Screw M8 X 45

Engine Bracket Front Mag Side

Hex. Flange Screw M8 X 45

Gear Box Bracket

Torx Flange Screw M8 X 35

Engine Bracket PTO Side

Drive Shaft

Ball Bearing

Circlip

Oil Seal

Cover

Ball Bearing

Retaining Ring

O-Ring | Included in gasket kit

Torx Flange Screw M8 X 65

Torx Flange Screw M8 X 35

Support Plate

Torx Flange Screw M6 X 16

Tie Rap 212mm

Dowel Pin 10 X 13

Gasket Set
