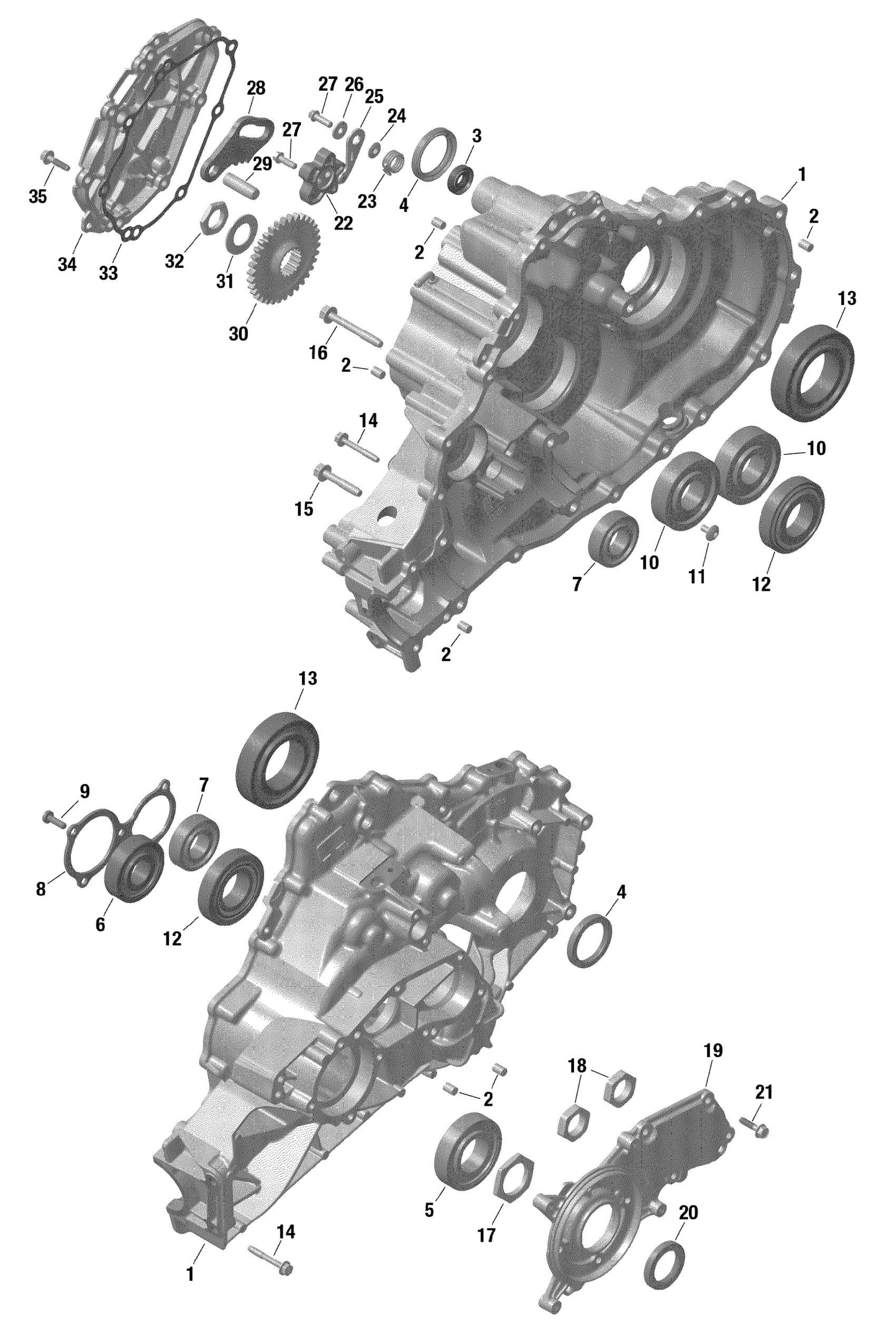

Can-Am Maverick MAX Turbo RR - XRS - CE, 2022 Rotax - Gear Box 1 - 509 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Seal

420250452

$17.59

4

Oil Seal | Included in gasket set gearbox

420230137

$23.49

5

Ball Bearing

420632745

$25.99

6

Ball Bearing

420832098

$28.49

7

Ball Bearing 6205

420232764

$25.99

8

Retaining Plate

420651830

$15.81

9

Torx Flange Screw M6 X 20

420441386

$2.11

10

Ball Bearing

420932574

$55.99

11

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Ball Bearing

420632871

$56.99

14

Collar Screw M6 X 45

420441921

$2.19

15

Torx Flange Screw M8 X 45

420441932

$1.79

16

Torx Flange Screw M8 X 65

420441942

$2.93

17

Hex Nut M34 X 1.5

420842600

$6.67

18

Hex. Nut M24

420242012

$16.33

19

Bearing Cover

420212381

$73.99

20

Oil Seal

420950089

$19.49

21

Collar Screw M6 x 25

420441951

$2.19

22

Index Washer

420248024

$62.49

23

Spring

420239566

$2.61

24

Step Ring

420227717

$12.12

25

Index Lever Ass'y

420248528

$46.99

26

Washer

420827300

$5.24

27

Torx Flange Screw M6 X 20

420441835

$3.17

28

Parking Lock Lever

420657440

$78.99

29

Needle Pin

420249190

$14.81

30

Gear

420634938

$53.99

31

Spring Washer

420245860

$7.41

32

Nut

420242879

$7.65

33

Gasket | Included in gasket set gearbox

420450410

$12.16

34

Gear Box Cover

420212391

$56.99

35

Collar Screw M6 x 25

420441951

$2.19
