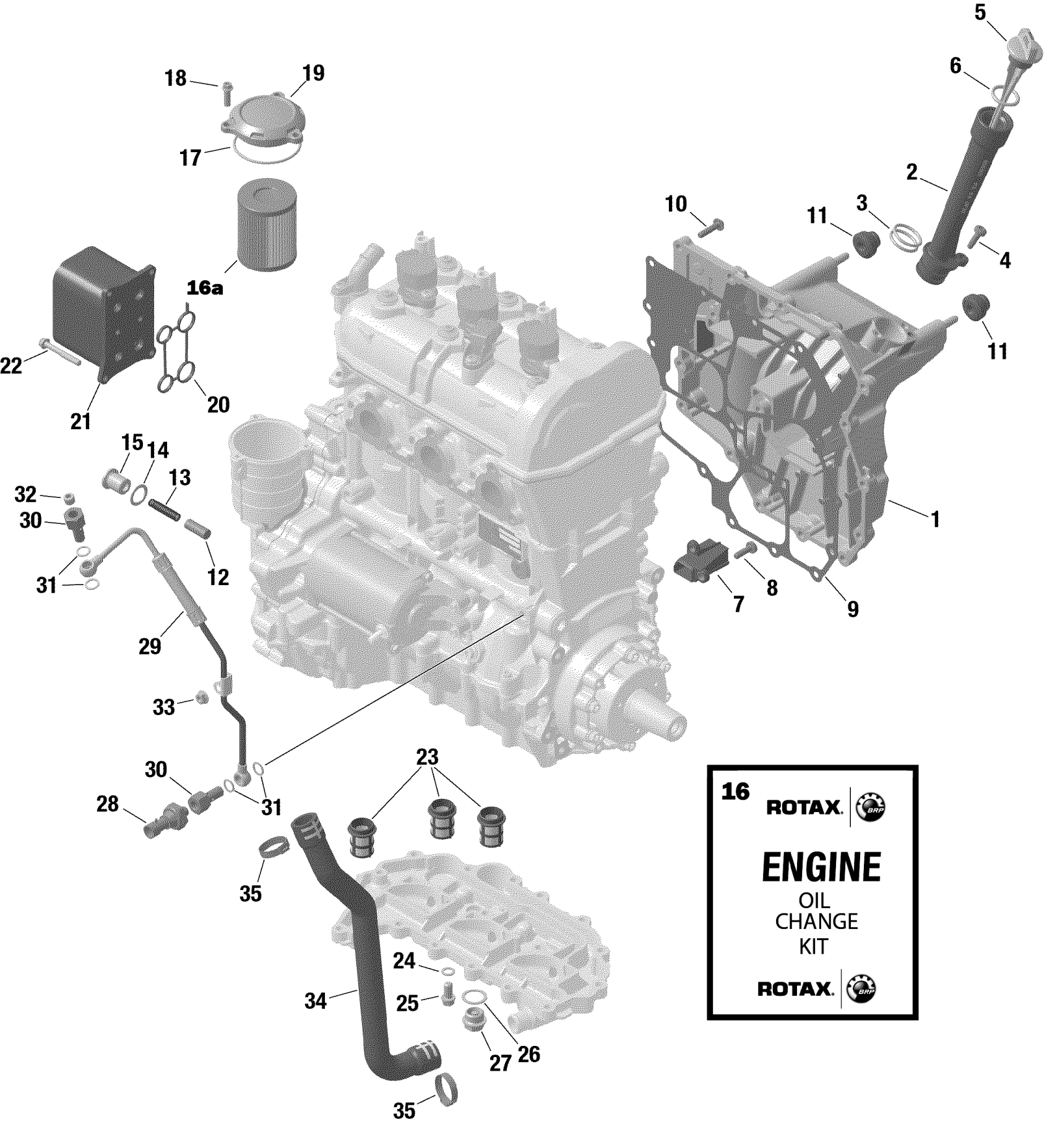

Can-Am Maverick MAX Turbo RR - XRS - CE, 2022 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$110.99

2

Oil Filler Tube

420656901

$9.02

3

O-Ring

420430440

$3.43

4

Torx Flange Screw M6 X 20

420441383

$5.40

5

Oil Dipstick

420856668

$13.24

6

O-Ring

420631640

$2.11

7

Oil Suction Pipe

420456260

$12.18

8

Torx Flange Screw M6 X 20

420441383

$5.40

9

Oil Sump Cover Gasket | Included in gasket kit

420431848

$18.49

10

Torx Flange Screw M6 X 25

420841548

$5.40

11

Rubber Grommet

420860150

$5.39

12

Pressure Regulating Piston

420256591

$14.22

13

Spring

420239445

$14.22

14

Gasket Ring

420430624

$1.89

15

Plug Screw

420441373

$13.76

16

CAN-AM Oil Change Kit 5W40 900C

9779489

$91.99

16

CAN-AM Oil CHange Kit 10W50 900 CC

9779261

$97.99

16a

Oil Filter

420956123

$13.77

17

O-Ring

420230923

$3.17

18

Torx Flange Screw M6 X 20

420440207

$3.06

19

Oil Filter cover

420612135

$11.63

20

Gasket

420431871

$11.60

21

Oil Water Heat Exchanger

420656689

$158.99

22

Torx Flange Screw M6 X 45

420440324

$0.98

23

Oil Sieve

420656680

$11.60

24

Sealing Ring

420950141

$2.00

25

Torx Flange Screw M8 X 16

420440852

$4.12

26

Crush Washer

420552280

$3.70

27

Drain Plug M18 X 1.5

420840278

$23.99

28

Oil Pressure Switch

420256915

$40.99

29

Pressure Oil Line

420456451

$158.99

30

Spacer

420947580

$12.18

31

Oil Seal

420230154

$3.06

32

Plug Screw M10 X 1

420641323

$14.28

33

Hex Nut M6-10

420842890

$2.30

34

Molded Hose

420201743

$44.49

35

Clamp

420251578

$8.57
