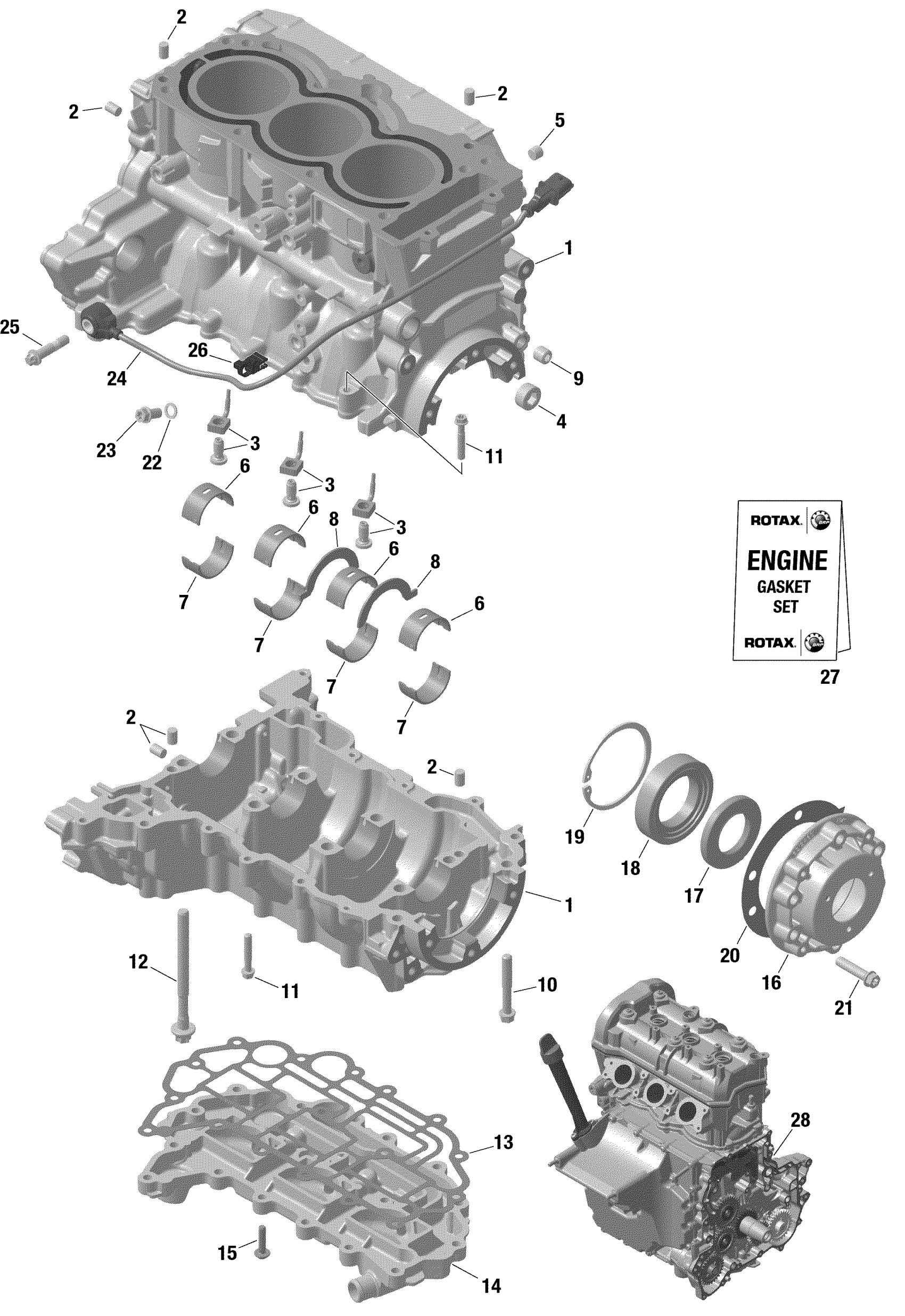

Can-Am 004 - Maverick MAX Turbo RR - XRS - CE, 2022 01- ROTAX - Crankcase - Turbo RR Diagram

#

Description
Price

1

Engine Block | Includes no. 1-7

420893001

$2,219.99

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spray Nozzle

420656731

$17.61

4

Plug Screw M20 X 1.5

420641317

$14.22

5

Plug Screw M10 X 1

420641323

$14.28

6

Cushion

420933180

$17.58

7

Cushion

420933185

$18.49

8

Ring Half

420933140

$11.60

9

Threaded Pin

420840508

$18.49

10

Torx Flange Screw M8 X 55

420641213

$7.41

11

Torx Flange Screw M6 X 35

420641258

$3.38

12

Torx Flange Screw M9 X 113

420940945

$13.70

13

Gasket

420431820

$15.89

14

Oil Sump

420911504

$112.99

15

Torx Flange Screw M6 X 25

420841548

$5.40

16

PTO Cover

420212461

$174.99

17

PTO Cover Oil Seal | Included in gasket kit

420630153

$19.49

18

Roller Bearing

420232497

$56.99

19

Retaining Ring

420845790

$7.51

20

PTO Cover Gasket

420450080

$7.65

21

Torx Flange Screw M8 X 35

420440861

$3.27

22

Sealing Ring | Included in gasket kit

420950144

$2.00

23

Torx Flange Screw M8 X 16

420440852

$4.12

24

Noise Sensor

420664031

$63.99

25

Torx Flange Screw M8 X 35

420641188

$7.41

26

Cable Clamp 150mm

420951650

$4.44

27

Gasket Kit

420686232

$635.49

28

Long Block

420090355

$4,751.99
