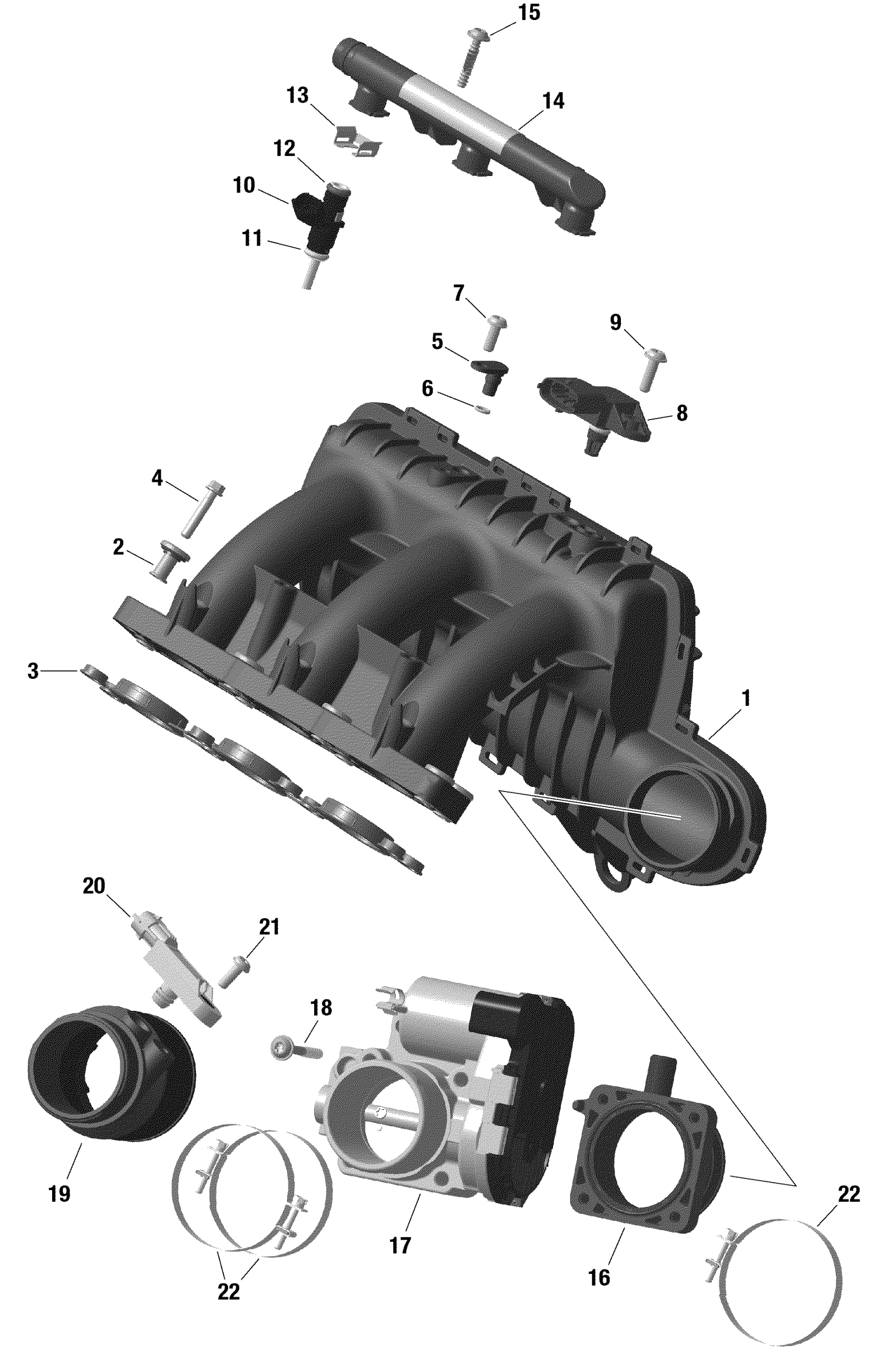

Can-Am Maverick MAX Turbo RR - XRS - CE, 2022 ROTAX - Air Intake Manifold And Throttle Body - Turbo RR Diagram

#

Description
Price

1

Air Intake Manifold Ass'y | Includes no. 1-3

420867347

$349.99

4

Torx Flange Screw M6 X 30

420440647

$2.00

5

Plug

420201052

$2.24

6

O-Ring

420230530

$3.17

7

Torx Flange Screw M6 X 16

420641588

$2.11

8

Pressure And Temperature Sensor

420874651

$169.99

9

Torx Flange Screw M6 X 20

420841103

$3.66

10

Injection Valve | Includes no. 10-12

420874858

$164.49

13

Injector Clip

420853030

$3.09

14

Fuel Rail

420874966

$14.49

15

Torx Screw 6X30

420441575

$3.06

16

Intake Neck

420267216

$38.99

17

Throttle Body

420893149

$646.49

18

Torx Flange Screw M6 X 50

420441588

$4.44

19

Connecting Socket

420867555

$38.99

20

Pressure Sensor

420274052

$139.99

21

Torx Flange Screw M6 X 20

420841103

$3.66

22

Hose Clamp 60-80

420251832

$15.27
