02- Engine - Cooling

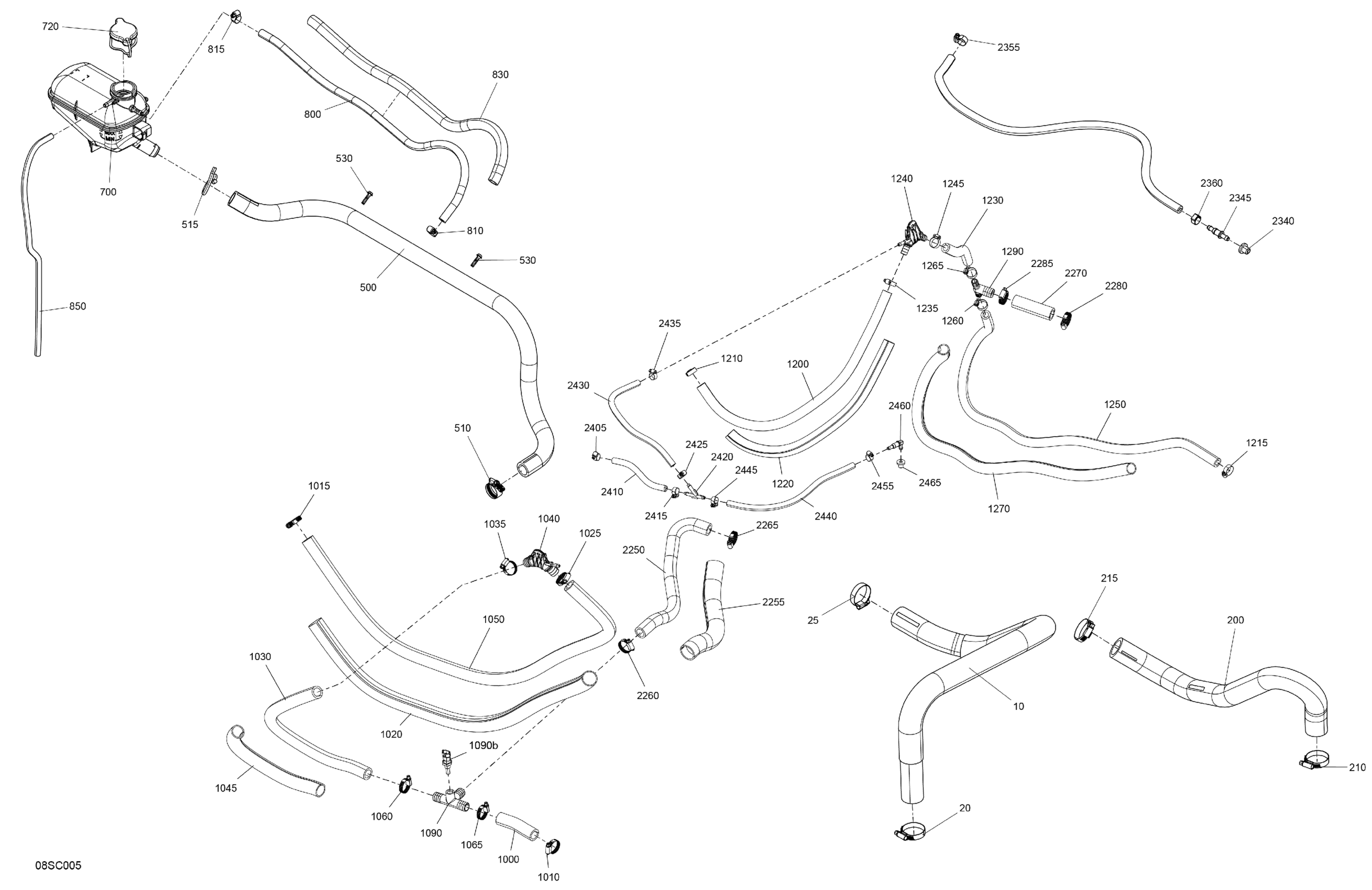

Sea-doo 004 - GTX LIMITED 300, 2023 02- Engine - Cooling Diagram
#
10
Hose
276000516
$70.49
20
Norma Clamp
293650245
$14.99
25
Norma Clamp
293650245
$14.99
200
Formed Hose
276000517
$56.99
210
Norma Clamp
293650245
$14.99
215
Norma Clamp
293650245
$14.99
500
Coolant Tank Hose
276000523
$39.99
510
Tridon Gear Clamp
293650019
$5.82
515
Spring Clamp
293650115
$3.09
530
Hex. Flange Screw K50 X 20
241152060
$1.99
700
Coolant Tank
276000419
$119.99
720
Pressure Cap | Includes 720 to 720a
276000100
$25.99
800
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
810
Tridon Gear Clamp
293650170
$1.99
815
Tridon Gear Clamp
293650170
$1.99
830
Was 409901800 Tubing (13 mm)
219704400
$14.49
850
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
$78.49
1000
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1010
Tridon Gear Clamp
293650051
$4.19
1015
Tridon Gear Clamp
293650051
$4.19
1020
Tubing 25 MM 1000MM Long
219704402
$15.99
1025
Tridon Gear Clamp
293650051
$4.19
1030
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1035
Tridon Gear Clamp
293650051
$4.19
1040
Fitting
276000547
$5.19
1045
Tubing 25 MM 1000MM Long
219704402
$15.99
1050
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1060
Tridon Gear Clamp
293650051
$4.19
1065
Tridon Gear Clamp
293650051
$4.19
1090
Temperature Sensor Fitting Ass'y | Includes 1090 to 1090b
293710164
$66.99
1090b
Temperature Sensor
278002895
$39.99
1200
Was 276000001 Hose 12.5 mm
219704394
$51.99
1210
Tridon Gear Clamp
293650172
$3.09
1215
Tridon Gear Clamp
293650172
$3.09
1220
Was 515175319 Tubing 22 mm
219704423
$14.99
1230
Was 276000001 Hose 12.5 mm
219704394
$51.99
1235
Tridon Gear Clamp
293650172
$3.09
1240
Fitting
276000548
$5.19
1245
Tridon Gear Clamp
293650172
$3.09
1250
Was 276000001 Hose 12.5 mm
219704394
$51.99
1260
Tridon Gear Clamp
293650172
$3.09
1265
Tridon Gear Clamp
293650172
$3.09
1270
Was 515175319 Tubing 22 mm
219704423
$14.99
1290
T-Fitting
293710132
$12.65
2250
Formed Hose
276000422
$22.49
2255
Tubing 25 MM 1000MM Long
219704402
$15.99
2260
Tridon Gear Clamp
293650051
$4.19
2265
Tridon Gear Clamp
293650051
$4.19
2270
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
2280
Tridon Gear Clamp
293650051
$4.19
2285
Tridon Gear Clamp
293650051
$4.19
2340
Grommet
293720029
$1.59
2345
Male Connector
414518500
$4.23
2355
Tridon Gear Clamp
293650170
$1.99
2360
Oetiker Gear Clamp
293650025
$3.09
2405
Tridon Gear Clamp
293650170
$1.99
2410
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
2415
Tridon Gear Clamp
293650170
$1.99
2420
Y-Fitting
293710059
$9.69
2425
Tridon Gear Clamp
293650170
$1.99
2430
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
2435
Tridon Gear Clamp
293650170
$1.99
2440
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
2445
Tridon Gear Clamp
293650170
$1.99
2455
Tridon Gear Clamp
293650170
$1.99
2460
Elbow Male Connector
414580600
$4.23
2465
Grommet
293720029
$1.59
