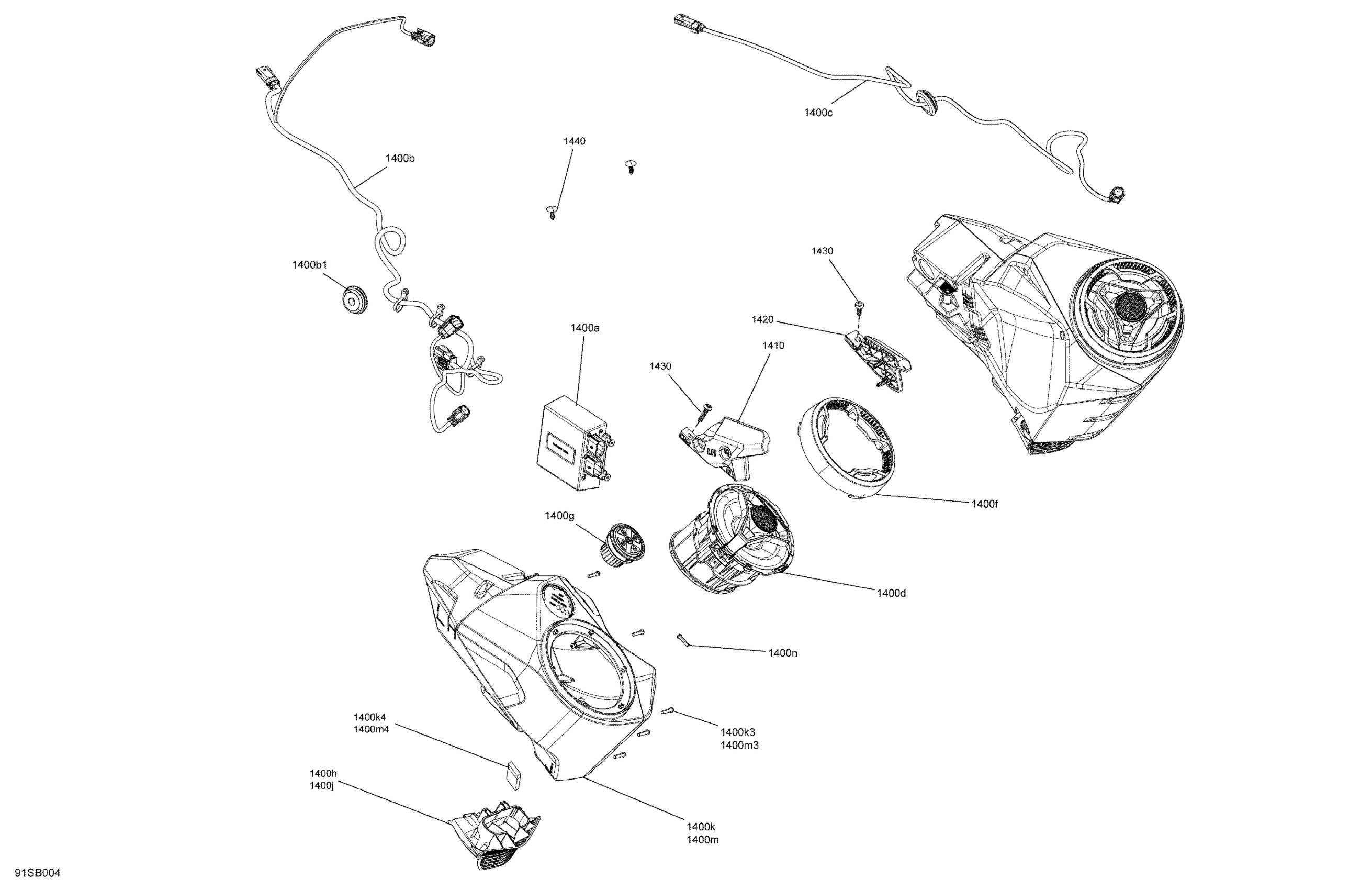

Sea-doo GTX LIMITED 300, 2022 Electric - Audio System Diagram

Description

Price

1400a

Amplifier

278003464

$371.12

1400b

Harness Amplifier | Includes 1400b to 1400b1

278003461

$355.94

1400b1

Grommet

708301025

$4.61

1400c

Speaker Harness

278003462

$16.22

1400d

Speaker

278003463

$124.12

1400f

Speaker Grille

278003466

$12.97

1400g

Audio Control

278003738

$269.07

1400h

Deep Black, LH Protective Grille

278003616

$7.29

1400j

Deep Black, RH Protective Grille

278003617

$7.29

1400k

LH Speaker Enclosure Ass'y | Includes 1400k to 1400k4

278003735

$261.92

1400k3

Plastite Torx Screw #10 X 7/8"

250000207

$1.64

1400k4

Stopper

278003860

$0.61

1400m

RH Speaker Enclosure Ass'y | Includes 1400m to 1400m4

278003736

$261.92

1400m3

Plastite Torx Screw #10 X 7/8"

250000207

$1.64

1400m4

Stopper

278003860

$0.61

1400n

Plastite Torx Screw #10 X 7/8"

250000207

$1.64

1410

LH Bracket

278003489

$4.54

1420

RH Bracket

278003518

$4.54

1430

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1440

Black, Dart

293730011

$0.79
