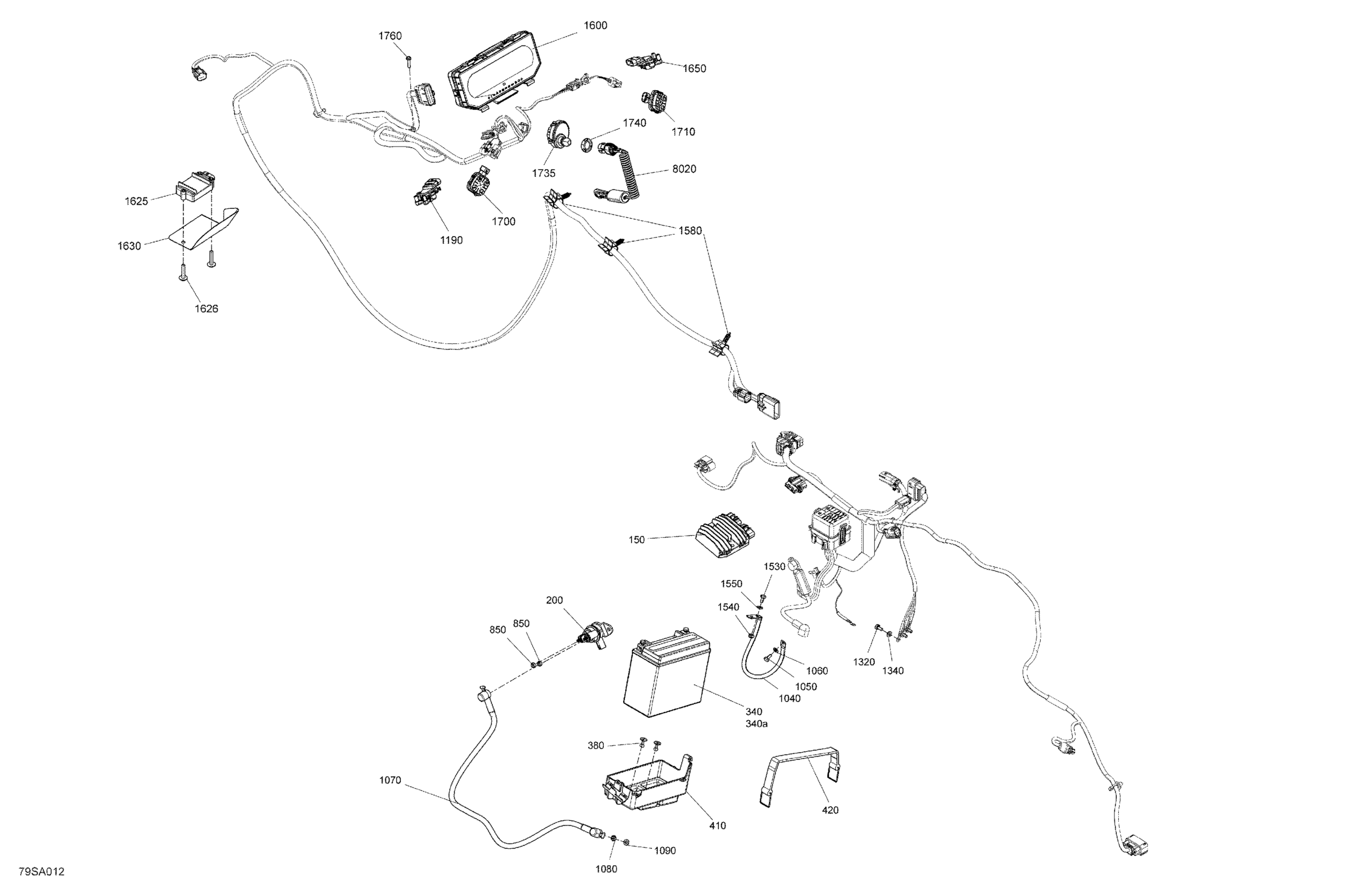

Sea-doo GTX LIMITED 300, 2021 Electric - System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$7.29

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

Full Size Multifunction Mono Gauge

278003432

$819.99

1600

Full Size Multifunction Color Gauge

278004097

$1.00

1625

External GPS Module

278003899

$189.99

1626

Hexagonal Cap Screw M6 X35

250000399

$4.44

1630

Bent Deflector

278003976

$10.99

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1735

Terminal_Dess One-Wire Open

515179239

Unavailable

1740

Safety Nut (DESS Switch)

278002963

$3.28

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.59

8020

Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j

278003402

$84.99
