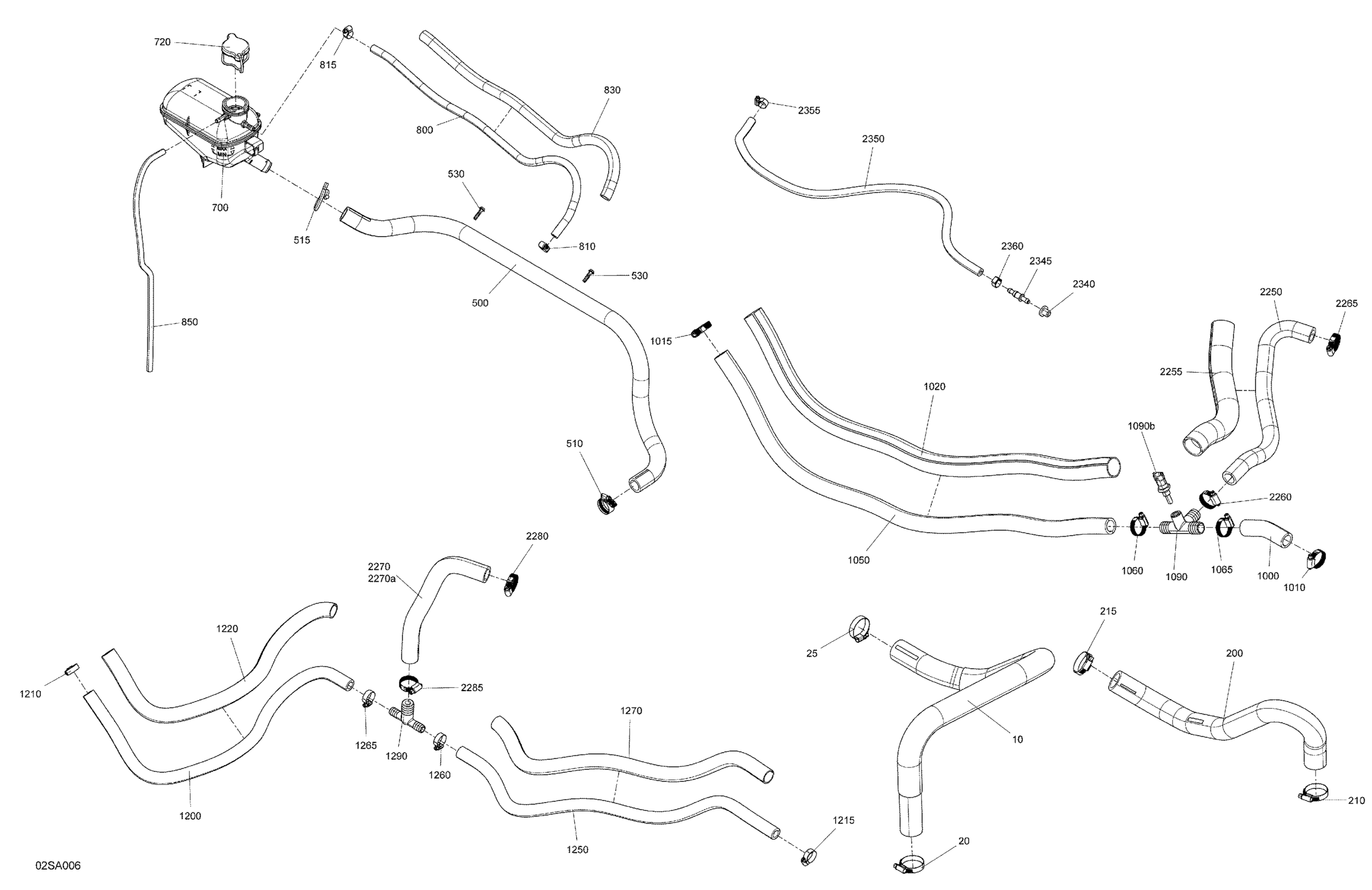

Sea-doo GTX LIMITED 300, 2021 Engine - Cooling Diagram

#

Description
Price

10

Hose

276000516

$70.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

200

Formed Hose

276000517

$56.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

500

Coolant Tank Hose

276000523

$39.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

530

Hex. Flange Screw K50 X 20

241152060

$1.99

700

Coolant Tank

276000419

$119.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

810

Tridon Gear Clamp

293650170

$1.99

815

Tridon Gear Clamp

293650170

$1.99

830

Was 409901800 Tubing (13 mm)

219704400

$14.49

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

1000

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1010

Tridon Gear Clamp

293650051

$4.19

1015

Tridon Gear Clamp

293650051

$4.19

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1050

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1060

Tridon Gear Clamp

293650051

$4.19

1065

Tridon Gear Clamp

293650051

$4.19

1090

Temperature Sensor Fitting Ass'y | Includes 1090 to 1090b

293710164

$66.99

1090b

Temperature Sensor

278002895

$39.99

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Tridon Gear Clamp

293650172

$3.09

1215

Tridon Gear Clamp

293650172

$3.09

1220

Was 515175319 Tubing 22 mm

219704423

$14.99

1250

Was 276000001 Hose 12.5 mm

219704394

$51.99

1260

Tridon Gear Clamp

293650172

$3.09

1265

Tridon Gear Clamp

293650172

$3.09

1270

Was 515175319 Tubing 22 mm

219704423

$14.99

1290

T-Fitting

293710132

$12.65

2250

Formed Hose

276000422

$22.49

2255

Tubing 25 MM 1000MM Long

219704402

$15.99

2260

Tridon Gear Clamp

293650051

$4.19

2265

Tridon Gear Clamp

293650051

$4.19

2270

Formed Hose | Includes 2270 to 2270a This part replaces 276000461.

276000423

$32.99

2270a

Hose

276000501

$29.49

2280

Tridon Gear Clamp

293650051

$4.19

2285

Tridon Gear Clamp

293650051

$4.19

2340

Grommet

293720029

$1.59

2345

Male Connector

414518500

$4.23

2350

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

2355

Tridon Gear Clamp

293650170

$1.99

2360

Oetiker Gear Clamp

293650025

$3.09
