01- Rotax - Magneto And Electric Starter - With IDF

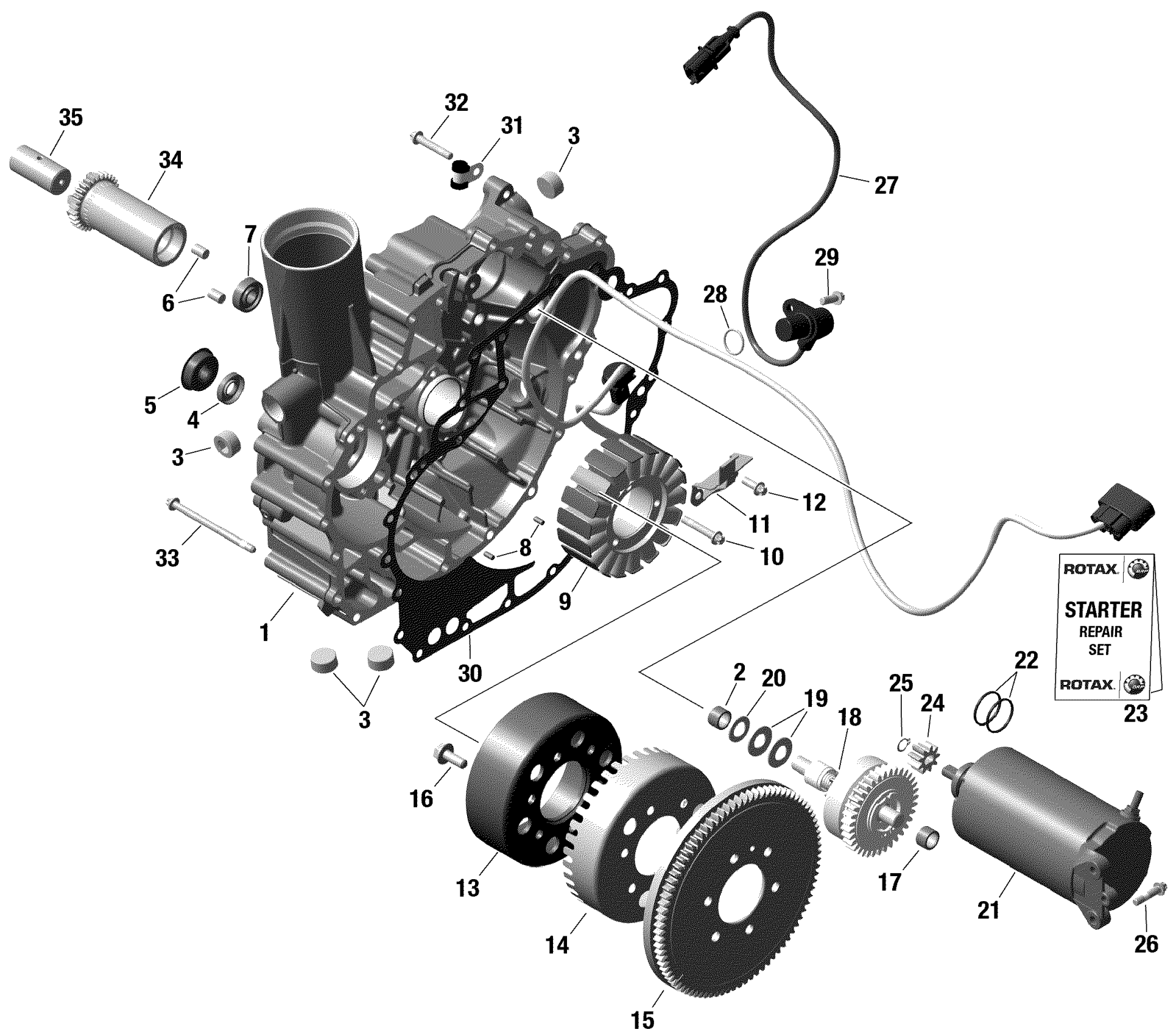

Sea-doo 004 - GTI SE 170, 2021 01- Rotax - Magneto And Electric Starter - With IDF Diagram
#
Description
Price
1
Timing / Drive Cover Ass'y 1603 NA | Includes no. 1-8
420912422
$550.99
2
Needle Bushing
420232482
$20.99
3
Plug Screw M20 X 1.5
420641317
$14.22
4
Oil Seal
420650315
$11.65
5
Rotary Seal
420650371
$43.49
6
Center Pin 8 X 12
420632010
$4.01
7
Ball Bearing
420232100
$20.99
8
Needle Pin
420929070
$1.90
9
Stator Plate
420889728
$319.49
10
Torx Flange Screw M6 X 35
420641258
$3.38
11
Retaining Plate
420926300
$16.37
12
Torx Flange Screw M6 X 16
420641048
$2.96
13
Magneto Flywheel
420296900
$461.99
14
Trigger Wheel
420966851
$18.49
15
Starter Gear, 86 Teeth
420835163
$309.99
16
Hex Screw
295501162
$15.28
17
Needle Bushing
420232482
$20.99
18
Starter Drive
420888041
$274.99
19
Spring Washer
420238300
$7.41
20
Thrust Washer
420827280
$8.47
21
Electric Starter Ass'y | Includes no. 20-21
420888995
$265.99
22
O-Ring
420631310
$4.44
23
Carbon Brush Set
420881340
$67.99
24
Starter Gear, 9 Teeth
420834522
$74.99
25
Retaining Ring
420845601
$4.55
26
Torx Flange Screw M6 X 25
420641238
$3.27
27
Crankshaft Position Sensor Ass'y | Includes 10 to 11
420966570
$109.99
28
O-Ring
420431580
$14.83
29
Torx Flange Screw M6 X 16
420641048
$2.96
30
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
$23.49
31
Clamp
420853414
$18.49
32
Torx Flange Screw M6 X 35
420641258
$3.38
33
Torx Flange Screw M6 X 85
420641228
$7.41
34
Input Shaft | 9 dog design
420820460
$77.49
35
Spacer
420244037
$13.75
