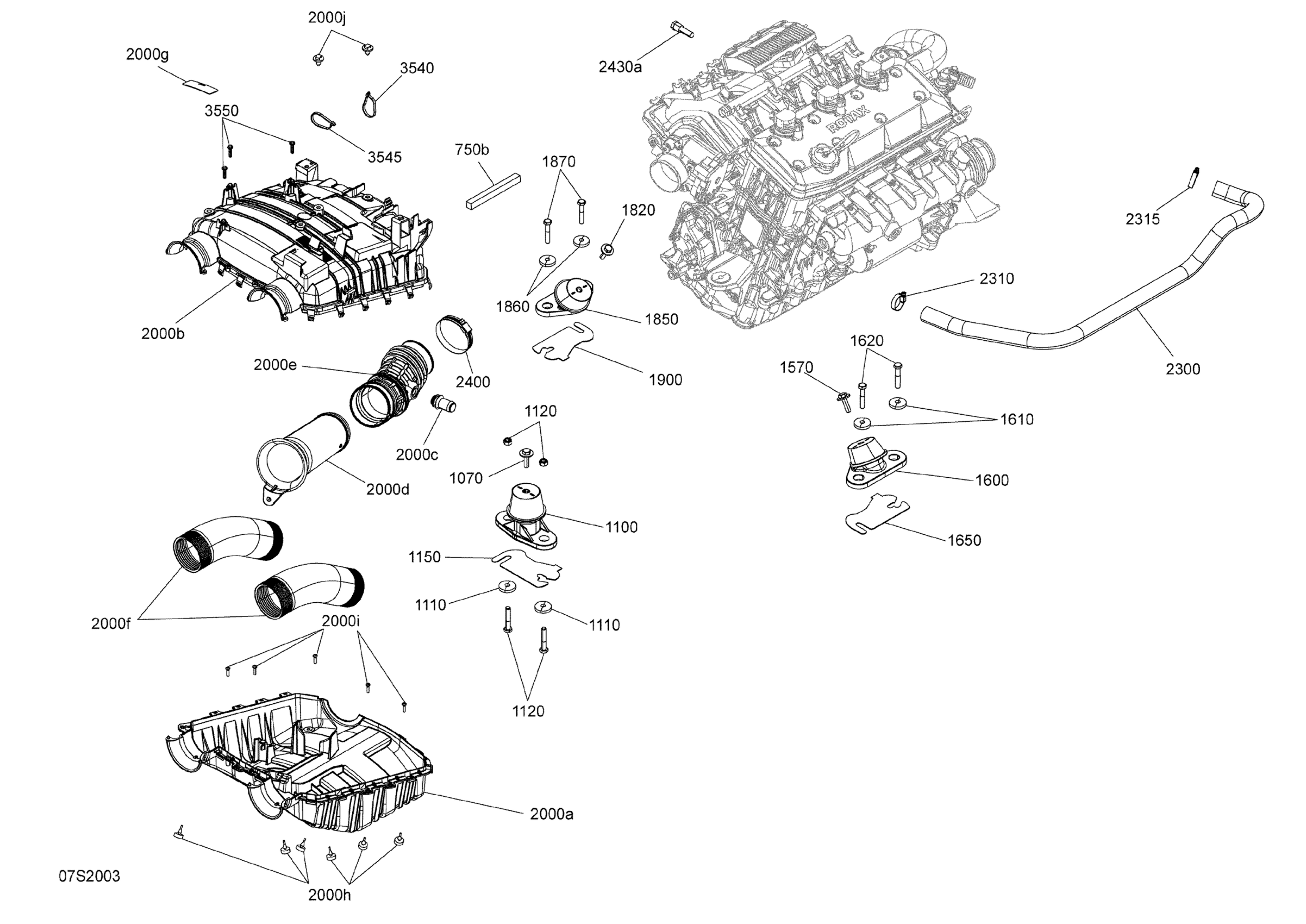

Sea-doo GTI SE 170, 2020 Engine Diagram

#

Description
Price

750b

Was 293250388 Seal

219704383

$25.34

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1100

Engine Support Ass'y

270001096

$88.78

1110

Cone Washer

250200018

$5.33

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1150

Shim 1.3 mm

270000762

$10.37

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1600

Engine Support Ass'y

270001081

$96.99

1610

Cone Washer

250200018

$5.33

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1650

Shim 1.3 mm

270000762

$10.37

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1850

Engine Support Ass'y

270001081

$96.99

1860

Cone Washer

250200018

$5.33

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1900

Shim 1.3 mm

270000762

$10.37

2000a

Airbox Base

273000342

$44.00

2000b

Intake Silencer Cover

273000394

$64.90

2000c

Breather Valve

273000234

$12.21

2000d

Intake Hose

273000359

$44.00

2000e

Hose Intake Silencer - Molded

273000395

$14.04

2000f

Air Silencer Hose

273000290

$20.12

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.15

2000i

Flange Torx Screw K40 X 16

250000287

$2.00

2000j

Mount Dart

293730040

$0.99

2300

Formed Hose

270000949

$42.51

2310

Tridon Gear Clamp

293650051

$4.15

2315

Tridon Gear Clamp

293650051

$4.15

2400

Tridon Clamp

293650179

$10.12

2430a

Anode Zinc

271001942

$15.64

3540

Tie-Rap 180 mm

414115200

$0.10

3545

Tie-Rap 180 mm

414115200

$0.10

3550

Hex. Flange Screw K50 X 20

241152060

$1.81
