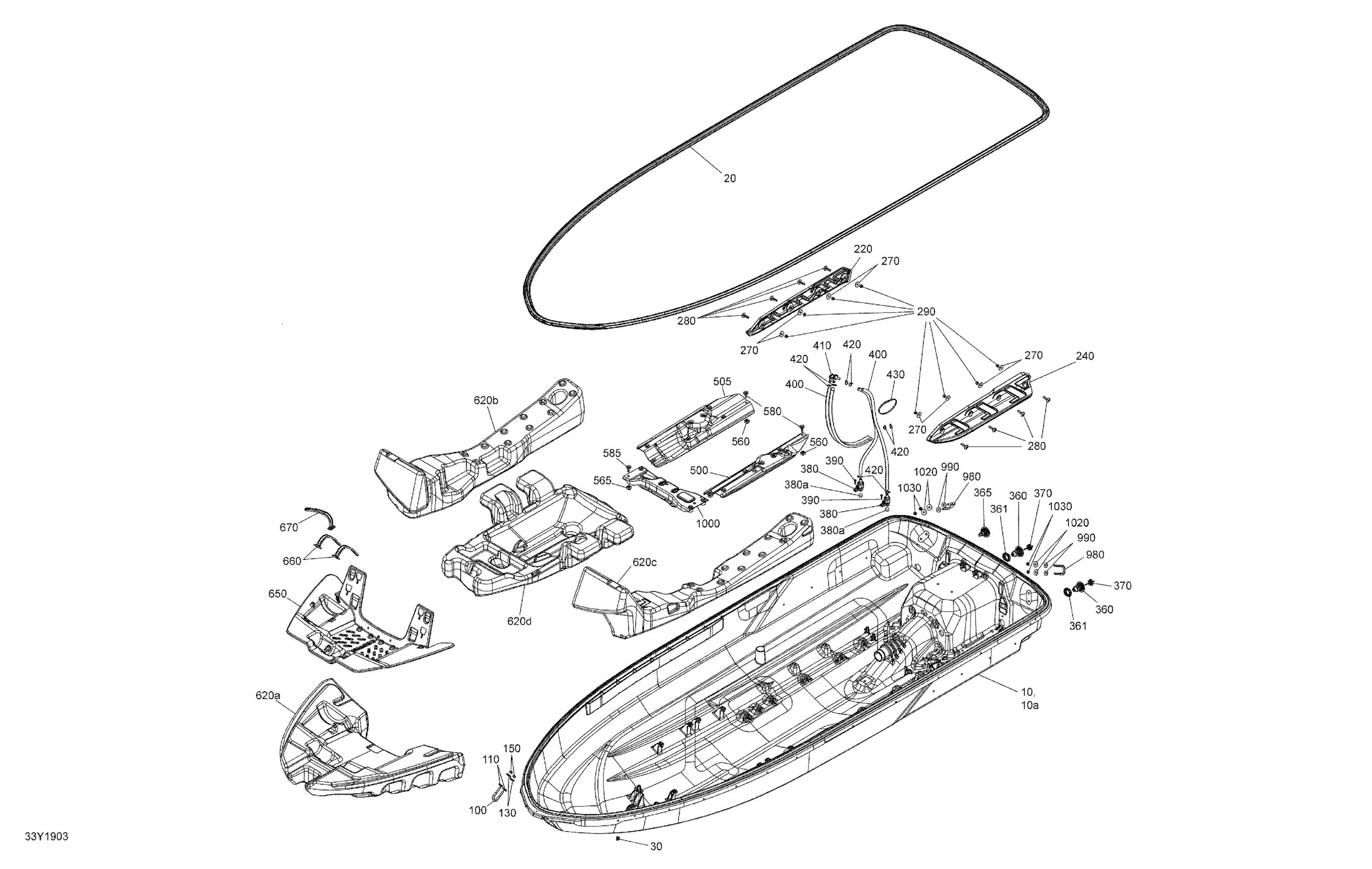

Sea-doo 004 - GTI 155, 2019 09- Hull Diagram
#
10>10a
Drilled Hull | Includes 10 To 10a
295501189
$2.00
10a
Hull Insert Kit | Includes 10a to 10a3
295501139
$43.99
20
Seal
292001940
$64.99
30
Insert
291003793
$3.56
100
U-Clamp
292000933
$59.49
110
Flat Washer M8.5 x 18
293050001
$3.07
130
Flat Washer 8 mm, Stainless
250200175
$3.06
150
Hex. Elastic Nut M8 Brass
232581200
$2.22
220
RH Sponson
292001878
$93.99
240
LH Sponson
292001877
$93.99
270
Flat Washer 8 mm, Stainless
250200175
$3.06
280
Torx Screw M8 X 35
250000697
$3.91
290
Hex. Elastic Nut M8 Brass
232581200
$2.22
360
Drain Ass'y
292001580
$16.49
361
Plastic Nut
292001825
$9.79
365
Drain Neck Ass'y
292001317
$27.99
370
Plug Ass'y | Includes 300f to 300f2
292002022
$14.49
380>380a
Bailer Pick-up Ass'y | Includes 540 to 540c
292001636
$25.99
380a
Floating Ball
293830080
$7.19
390
Hex. Screw 10-14 X 7/8”
211000023
$3.59
400
Polyurethane Hose 1000Mm Long | Not Shown
219704393
$7.20
410
Fitting Elbow 90°
293710152
$18.49
420
Tie Wrap 94 mm | 4X4
293750001
$1.03
430
Tie Wrap 368 mm
293750008
$1.04
500
LH Hull Stiffener
292001943
$92.99
505
RH Hull Stiffener
292001944
$92.99
560
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
565
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
580
Hexagonal Screw M8 X 30
250000888
$3.17
585
Hexagonal Screw M8 X 30
250000888
$3.17
620a
Lower Front Foam
292001947
$92.99
620b
Central Foam RH
292001948
$71.99
620c
Central Foam LH
292001949
$71.99
620d
Fuel Tank Foam
292001950
$104.99
650
Trunk Shield
292001868
$43.99
660
Strap
269502417
$17.69
670
Strap
269502417
$17.69
980
U-Clamp
292000933
$59.49
990
Flat Washer
279000336
$11.57
1000
Front Hull Stiffener
292002123
$134.99
1020
Flat Washer 8 mm, Stainless
250200175
$3.06
1030
Hex. Elastic Nut M8 Brass
232581200
$2.22
