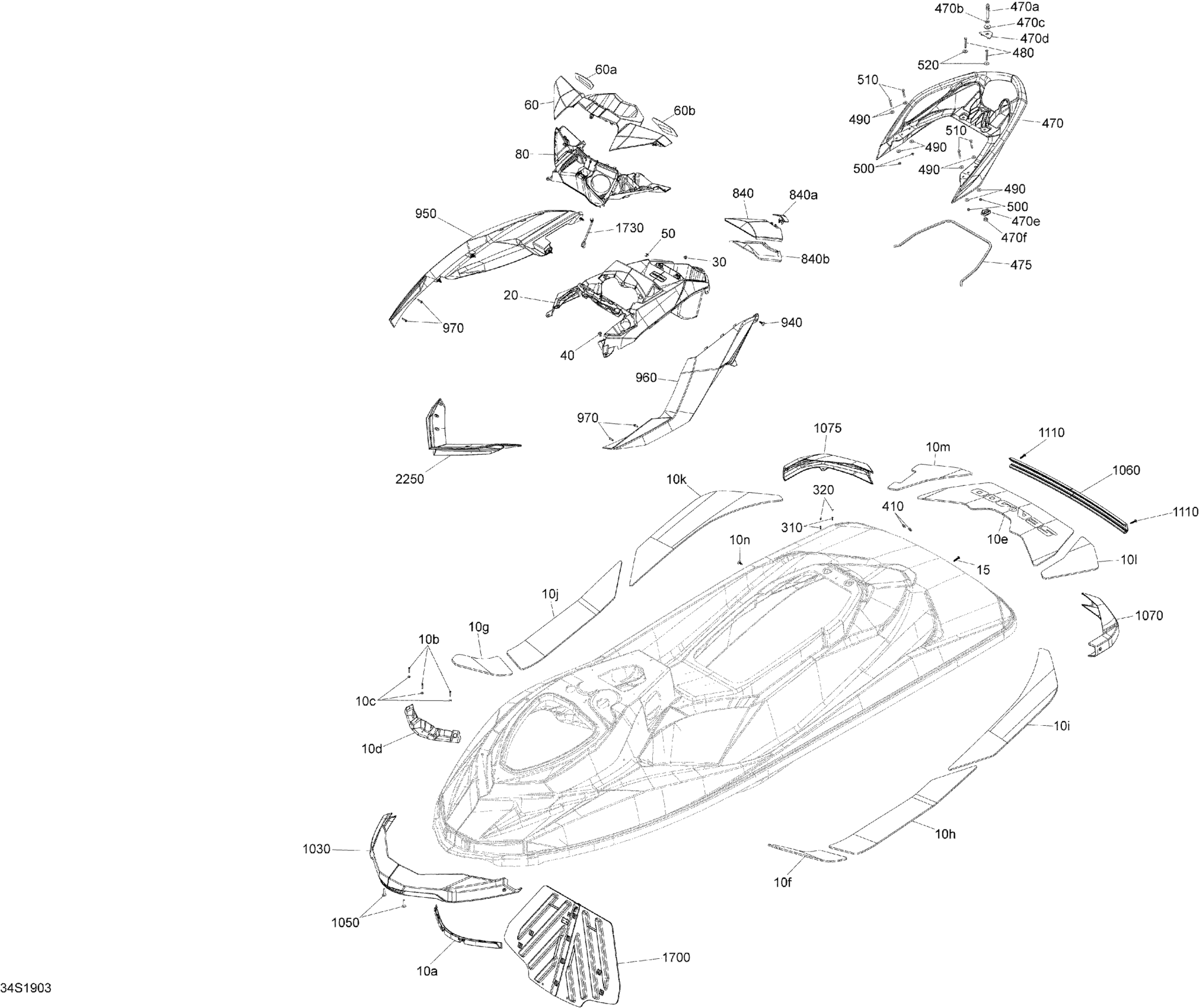

Sea-doo 004 - GTI 155, 2019 09- Body Diagram
#
10a
Deck Nose
291003897
$18.99
10b
Hex. Flange Screw K40 X 25
241142560
$2.64
10c
Flat Washer 4 mm, Stainless
234042600
$1.15
10d
Bumper Support | Package SE Manta Green
291003704
$21.99
10e
Swim Platform Carpet
291003096
$88.99
10f
Front Carpet LH
291003058
$24.99
10g
Front Carpet RH
291003059
$24.99
10h
Front Center Carpet LH
291003060
$28.49
10i
Rear Center Carpet LH
291003329
$34.99
10j
Front Center Carpet RH
291003061
$28.49
10k
Rear Center Carpet RH
291003330
$34.99
10l
Rear Carpet LH
291003062
$20.49
10m
Rear Carpet RH
291003063
$20.49
10n
Black, Dart
293730011
$0.99
20
Console
291004276
$134.99
30
Rubber Bumper
293830005
$8.09
40
Pop Rivet 3/16"
293150123
$4.29
50
Pop Rivet 3/16
293150186
$2.09
60>60b
Manta Green, Bezel Ass'y | Includes 60 TO 60c
291004264
$94.99
60>60b
Stone Grey Bezzel Ass'y | Package SE Long Beach Blue
291004746
$119.99
60a
Mirror RH, With Double-Face Tape
291003090
$48.49
60b
Mirror LH, With Double-Face Tape
291003091
$48.49
80
Deep Black, Mirror Support
291004271
$48.99
310
Rivet 1/8"
293150016
$0.40
320
Black, Snap Cap
293000014
$1.09
410
Flat Washer M8.5 x 18
293050001
$3.07
470>470f
Black, Rear Handle Ass'y
291004625
$142.99
470>470f
Manta Green, Rear Handle Ass'y | Includes 470 TO 470g
291004627
$153.49
470a
Stud Seat
291003877
$48.99
470b
Hex. Jam Nut M10
232100600
$2.22
470c
Flat Washer 10 mm, Stainless
234002600
$2.22
470d
Seat Stud Spacer
269002125
$8.19
470e
SEAT STUD SUPPORT - Call your local BRP dealership
269002126
$8.19
470f
Elastic Stop Nut M10, Brass
232501200
$2.64
475
Gasket 3000Mm Long
219704378
$26.49
480
Hex. Screw M6 X 50
207065060
$2.22
490
Flat Washer M6, Stainless
234062600
$0.77
500
Elastic Stop Nut M6, Brass
232561200
$4.23
510
Hex. Screw M6 X 40
207164060
$3.38
520
Flat Washer M6.6 X 22
250200022
$2.72
840>840b
Deep Black, Glove Door Ass'y | Includes 840 TO 840c
269502140
$65.99
840a
Black, Latch
264000164
$15.99
840b
Gasket
293250236
$41.49
940
Black, Dart
293730006
$0.99
950
Manta Green RH Cosmetic Panel
269502189
$204.99
950
Gray, RH Cosmetic Panel | Package SE Long Beach Blue
269502331
$194.99
960
Manta Green LH Cosmetic Panel
269502190
$204.99
960
Grey, LH Cosmetic Panel | Package SE Long Beach Blue
269502332
$194.99
970
Hex. Screw 10-14 X 7/8”
211000023
$3.59
1030
Front Bumper This part replaces 291005401.
291004277
$76.49
1050
Hexagonal Cap Screw M6 X35
250000399
$4.44
1060
Black, Side Bumper
291004451
$58.49
1070
Black, Corner Bumper This part replaces 291004152.
291004278
$33.99
1075
Black, Corner Bumper This part replaces 291004153.
291004279
$33.99
1110
Screw Torx M6.81 X 30
250001007
$2.54
1700
Divider Ass'y
291004572
$104.99
1730
Holding Strap
269502111
$18.49
2250
Deep Black, Body Deflector
291004273
$26.99
