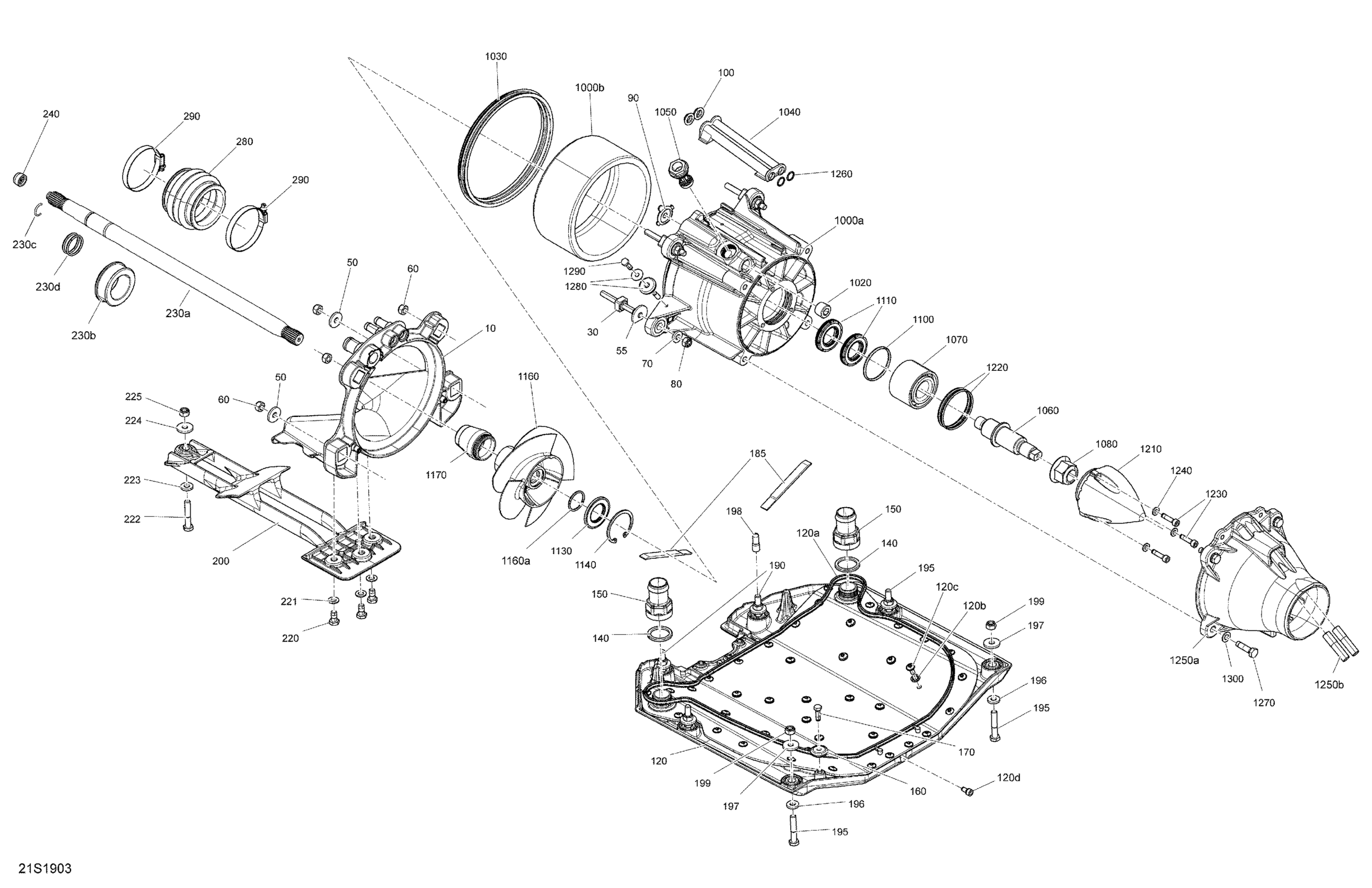

Sea-doo GTI 155, 2019 Propulsion Diagram

#

Description
Price

10

Pump Support

271001964

$38.03

30

Square Stud

250300046

$13.67

55

Flat Washer

279000326

$3.27

60

Hex. Elastic Nut M8 Brass

232581200

$1.48

70

Flat Washer M8.5 x 18

293050001

$1.48

80

Hex. Elastic Nut M8 Brass

232581200

$1.48

90

Reducer, Green This part replaces 271001586.

271002029

$14.72

100

Watertight Seal

293250084

$6.67

120

Riding Plate Ass'y | Includes 120 TO 120f

271001860

$208.18

120a

Seal

293250235

$7.90

120b

Sealing Washer

250200114

$4.15

120c

Torx Screw M6 X 14

250000384

$7.06

120d

Socket Drain Plug M6 X 12

250500005

$13.48

140

O-Ring

293300121

$7.09

150

Straight Fitting

293710166

$7.90

160

Anode Zinc

271001920

$13.12

170

Hex Screw M6 X 20

250000965

$2.00

185

Gasket, Neoprene 2000Mm Long

219704476

$14.51

190

Hexagonal Head Cap Screw M8 X 75

250000812

$2.70

195

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

196

Flat Washer M8.5 x 18

293050001

$1.48

198

Cap Plug

293000105

$3.88

200

Pump Grate

271001969

$49.22

220

Hex. Screw M8 X 16, Scotch Grip

207381660

$0.96

221

Stainless, Flat Washer 8 mm

234081600

$0.52

222

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

223

Flat Washer M8.5 x 18

293050001

$1.48

230a

Drive Shaft

271002004

$370.12

230b

Carbon Ring Kit | Includes 280b to 280b5

295501202

$76.09

230c

C-Clip

271001575

$5.21

230d

O-Ring

293300044

$0.99

240

Drive Shaft Plug

272000173

$8.06

280

Bellow This part replaces 271001422.

271001933

$21.61

290

Tridon Clamp

293650179

$10.12

1000a

Impeller Housing

271002018

$261.16

1000b

Wear Ring

267000419

$79.07

1020

Black, Plastic Plug

267000469

$6.88

1030

Neoprene Seal

293200087

$10.55

1040

Water Outlet

271000785

$3.49

1050

Plug | Includes 370z to 370z1

267000282

$16.39

1060

Impeller Shaft

267000388

$108.18

1070

Angled Bearing This part replaces 267000030.

267000900

$76.09

1080

Elastic Flange Nut M20

250100104

$11.15

1100

O-Ring

293300090

$6.85

1110

Seal

271002071

$30.57

1130

Oil Seal

293200089

$17.88

1140

Circlip

293370038

$8.18

1160

Impeller Ass'y | Starboard, Includes 19 to 20 This part replaces 267000431.

267000940

$364.15

1160a

O-Ring

293300044

$0.99

1170

Guard

271002225

$10.57

1210

Impeller Cover

267000428

$16.39

1220

O-Ring

293300086

$3.33

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

1240

Stainless Flat Washer M6

234061600

$0.28

1250a

Venturi | With IBR

267000864

$194.75

1250b

Siphon Tube

271001885

$1.46

1260

O-Ring

293300013

$6.54

1270

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.73

1280

Anode Zinc

271001920

$13.12

1290

Hex Screw M6 X 20

250000965

$2.00

1300

Stainless, Flat Washer 8 mm

234081600

$0.52
