01- Cooling System

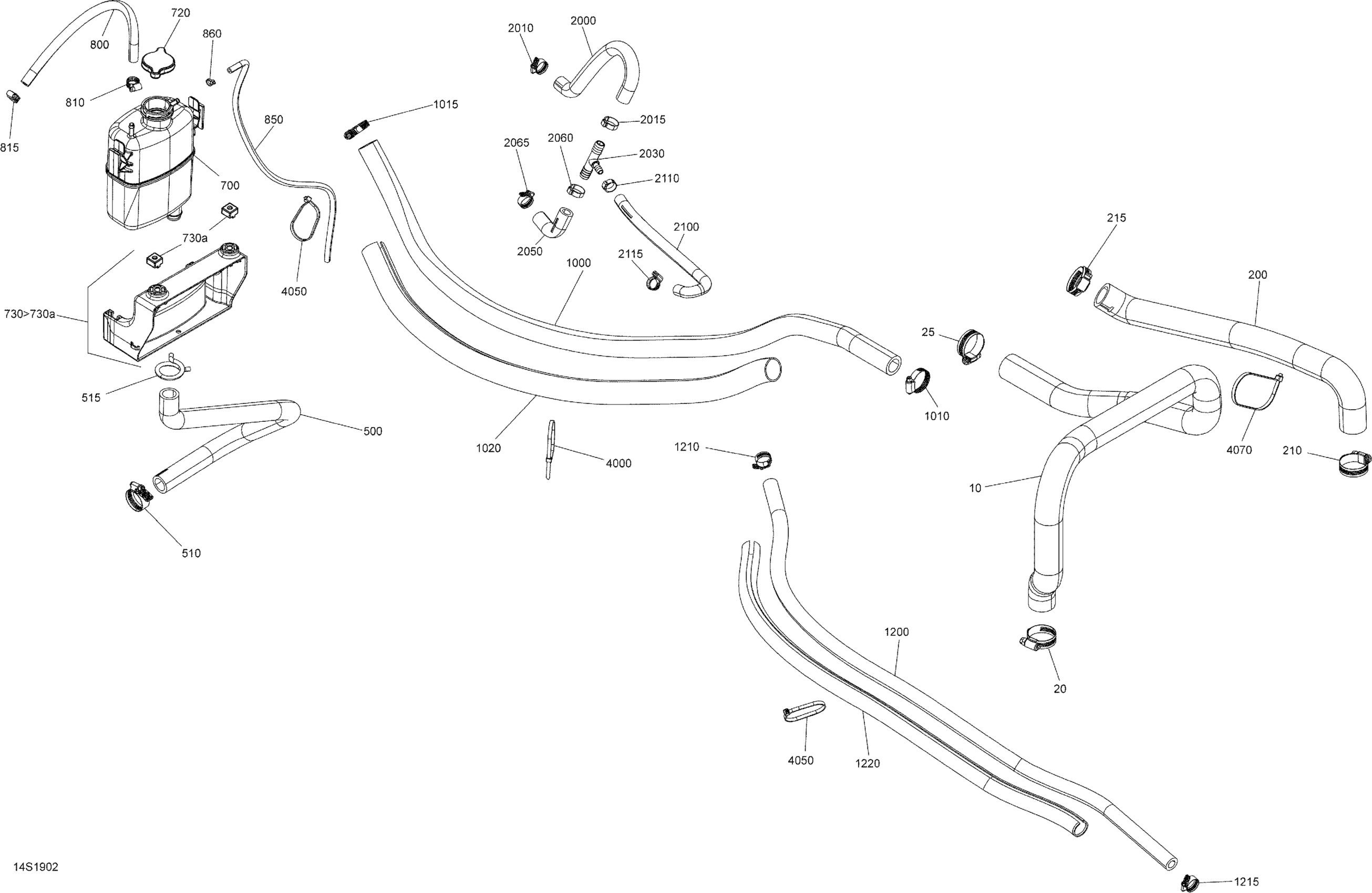

Sea-doo 004 - GTI 155, 2019 01- Cooling System Diagram
#
Description
Price
10
Radiator Hose, LH
276000459
$66.49
20
Norma Clamp
293650245
$14.99
25
Norma Clamp
293650245
$14.99
200
RH Radiator Hose
276000248
$58.99
210
Norma Clamp
293650245
$14.99
215
Norma Clamp
293650245
$14.99
500
Hose, Coolant Tank Lower
276000486
$29.49
510
Tridon Gear Clamp
293650019
$5.82
515
Spring Clamp
293650115
$3.09
700
Coolant Tank
276000086
$109.99
720
Pressure Cap | Includes 720 to 720a
276000100
$25.99
730>730a
Tank Holder Ass'y | Includes 730 TO 730a
291004446
$27.49
730a
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
800
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
810
Gear Clamp
293650287
$2.11
815
Gear Clamp
293650287
$2.11
850
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
$78.49
860
Tie Wrap 94 mm | 4X4
293750001
$1.03
1000
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1010
Gear Clamp
293650284
$4.44
1015
Gear Clamp
293650284
$4.44
1020
Tubing 25 MM 1000MM Long
219704402
$15.99
1200
Was 276000001 Hose 12.5 mm
219704394
$51.99
1210
Clamp Gear
293650285
$3.27
1215
Clamp Gear
293650285
$3.27
1220
Was 515175319 Tubing 22 mm
219704423
$14.99
2000
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
2010
Clamp Gear
293650285
$3.27
2015
Oetiker Clamp
293650012
$7.49
2030
T-Fitting
293710116
$17.62
2050
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
2060
Oetiker Clamp
293650012
$7.49
2065
Clamp Gear
293650285
$3.27
2100
Formed Hose | Without Catalyst
276000246
$19.49
2110
Oetiker Clamp | Europe
293650030
$5.19
2115
Clamp Gear
293650285
$3.27
4000
Tie Wrap 368 mm
293750008
$1.04
4050
Tie-Rap 180 mm
414115200
$0.11
4070
Tie Wrap 368 mm
293750008
$1.04
