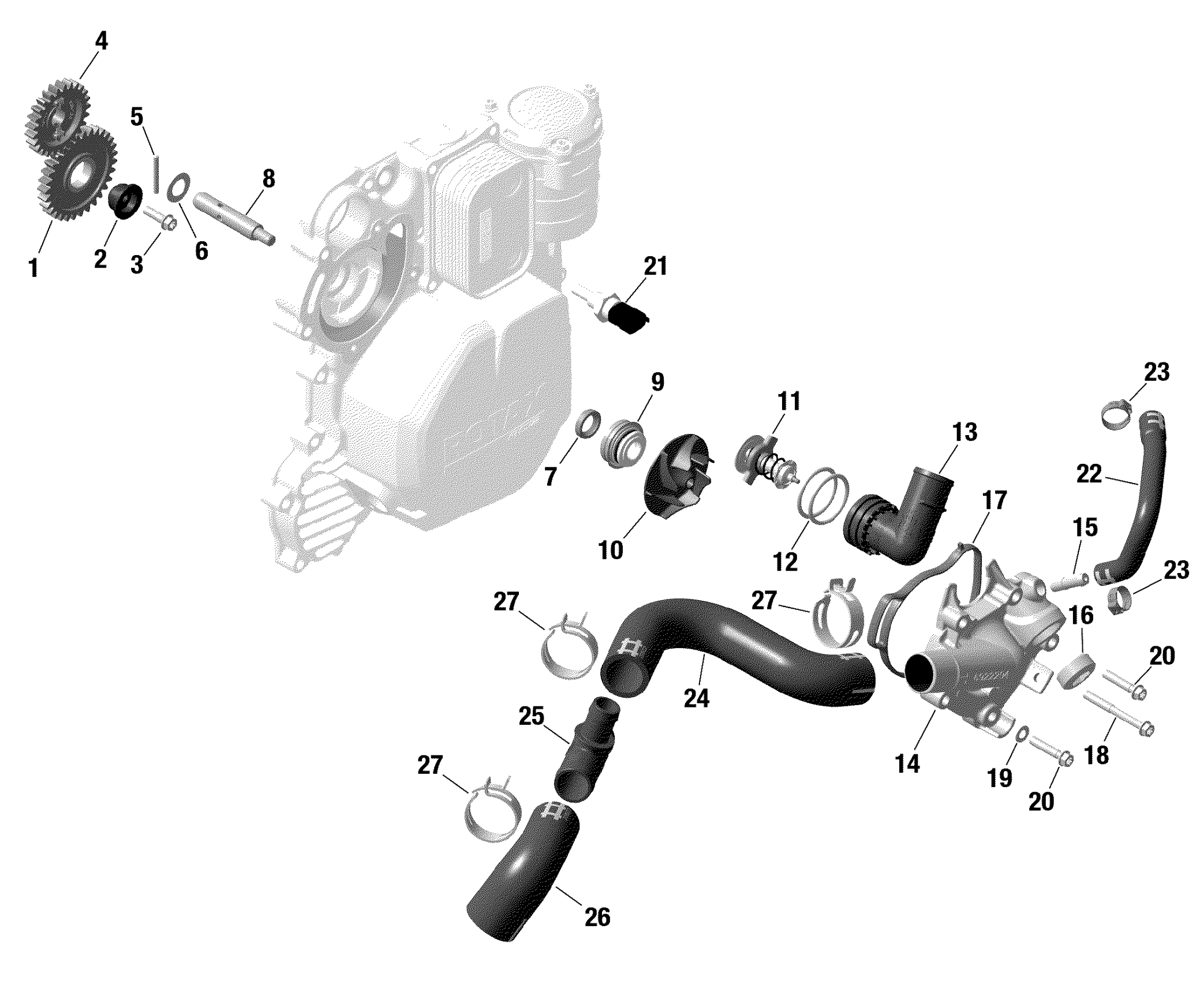

Ski-Doo GRAND TOURING 900 ACE TURBO - LTD - 2022 ROTAX - Engine Cooling Diagram

#

Description
Price

1

Idle Gear, 31 Teeth

420835067

$22.36

2

Spacer

420947394

$23.85

3

Torx Flange Screw M6 X 20

420440207

$2.91

4

Water Pump Gear

420835230

$6.07

5

Needle Pin

420232432

$4.21

6

Thrust Washer

420827261

$7.09

7

Oil Seal

420931802

$6.07

8

Waterpump Shaft

420820150

$23.85

9

Seal

420850946

$32.06

10

Water Impeller

420822750

$17.88

11

Thermostat

420822655

$30.57

12

Water Pump Housing O-Ring

420950896

$10.04

13

Thermostat cover

420922158

$8.09

14

Water Pump Housing | Includes no. 14-17

420922300

$68.63

15

Hose Nipple

420924925

$6.93

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Water Pump Housing Gasket

420431682

$17.88

18

Torx Flange Screw M6 X 55

420440702

$2.91

19

Sealing Washer

404146600

$0.72

20

Torx Flange Screw M6 X 30

420440647

$1.91

21

Temperature Sensor

278002895

$36.54

22

Hose

420822895

$23.10

23

Clamp

420853308

$5.06

24

Molded Hose

420201502

$20.12

25

T Fitting

420660551

$5.52

26

Molded Hose

420201503

$10.21

27

Self Compensating Clamp 35

420951350

$5.33
