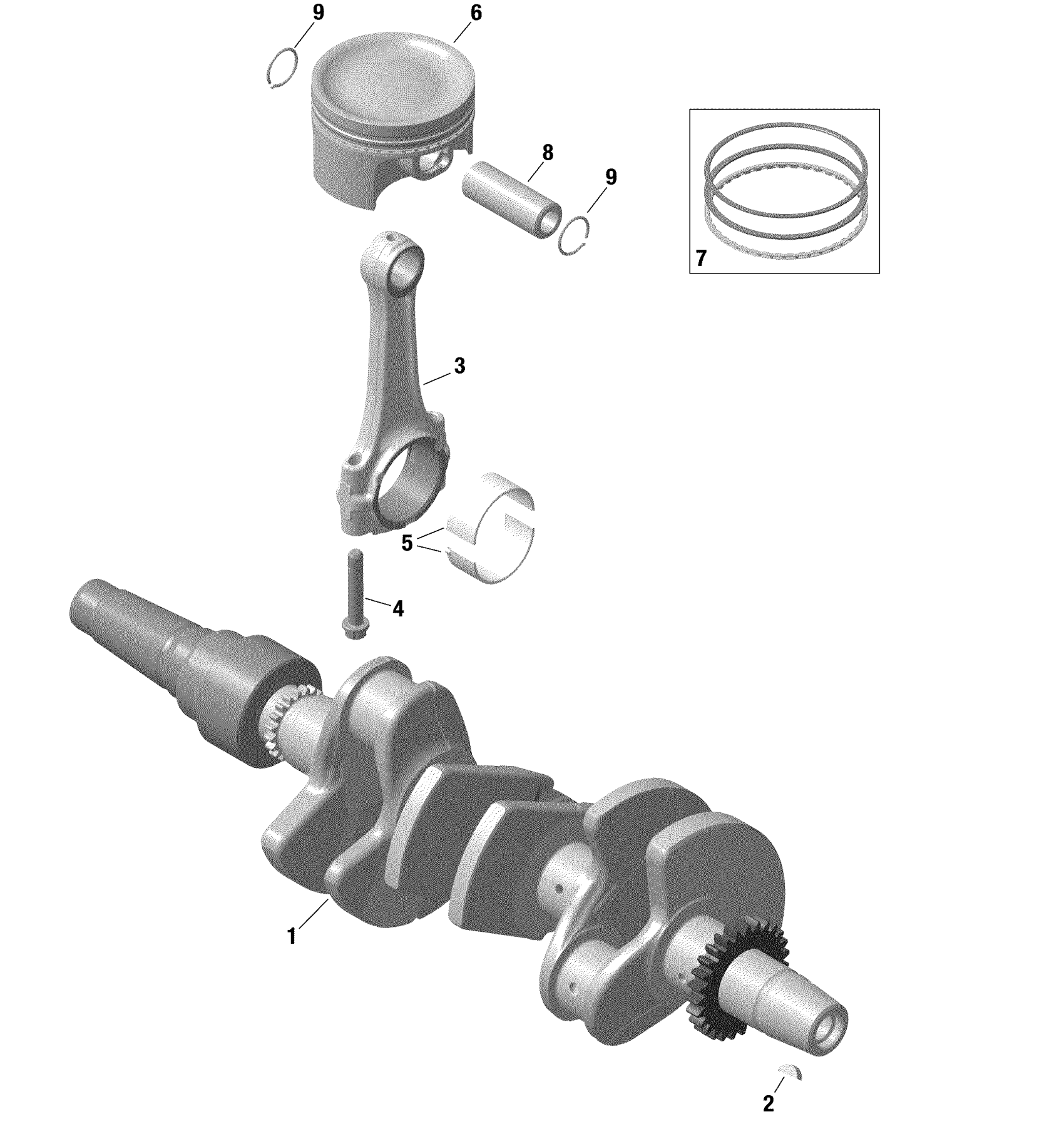

Ski-Doo GRAND TOURING 900 ACE TURBO - LTD - 2022 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft | Includes no. 1-2

420819937

$1,029.99

2

Woodruff Key

420246571

$3.61

3

Connecting Rod With Cover Ass'y

420917521

$259.99

4

Connecting rod Screw M7 X 1

420641794

$12.97

5

Plain Bearing

420933195

$13.59

6

Piston Ass'y 73.958MM | Includes no. 6-7

420893970

$175.74

7

Piston Ring Set

420892824

$51.97

8

Piston Pin

420916550

$28.92

9

Piston Circlip

420845540

$4.33
