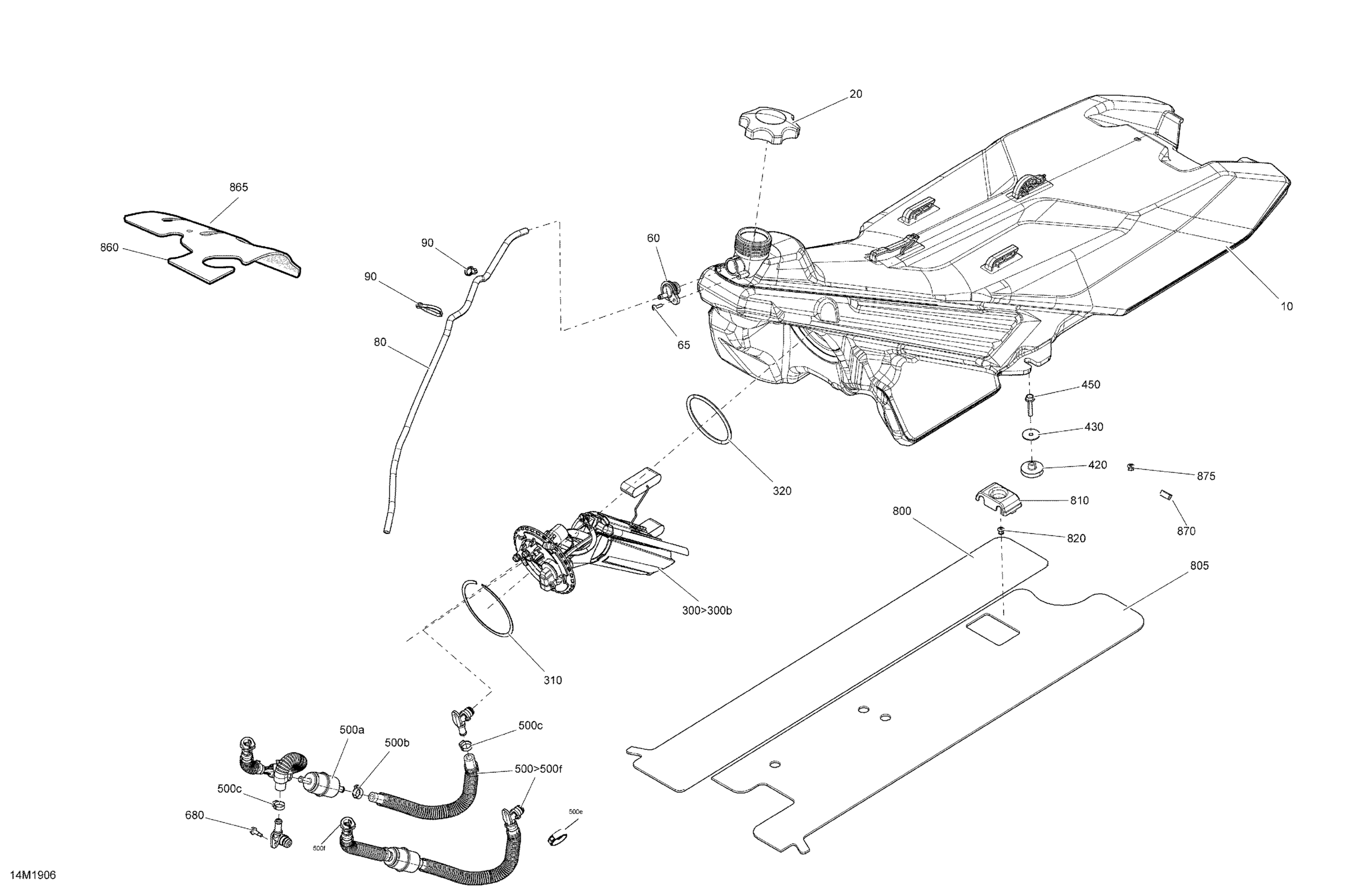

Ski-Doo GRAND TOURING 900 ACE Turbo, 2019 Fuel - North America Diagram

#

Description
Price

10

Fuel Tank

415130432

$261.91

15

Tube Ass'y

513033959

$26.09

20

Fuel Tank Cap

513033860

$22.36

60

Check Valve

513033849

$34.30

65

Truss Torx Screw K40 X 16

250000918

$2.00

80

Polyurethane Hose 10000Mm Long

219704410

$52.96

90

Tie-Rap 180 mm

414115200

$0.10

95

Tie-Rap 180 mm

414115200

$0.10

100

Protector Tube

504153074

$12.21

300

Fuel Pump Ass'y | Includes 300 to 300b

513034235

$249.97

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130726

$132.81

310

Circlip

513033798

$12.45

320

O-Ring

513033862

$17.13

420

Bushing

513033807

$7.25

430

Washer | Not Shown

503193995

$4.25

450

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00

500

Kit Hose Assy | Includes 500 to 500f This part replaces 513033938.

861805535

$77.58

500a

Fuel Filter

513034047

$35.99

500b

Oetiker Clamp

293650125

$3.09

500c

Crimp Clamp

293650053

$2.78

500d

O-Ring

513033668

$9.16

500e

Ring

513033910

$6.66

500f

Elbow Fitting 90°

293710105

$12.15

680

Hex. Flange Screw M5 X 16

250000911

$0.81

800

Insulated Foam

513033913

$5.09

805

Insulated Foam

513033914

$14.90

810

Tank Guide

513033826

$2.06

820

Pop Rivet 3/16"

390402200

$0.30

860

Foam

513033915

$17.13

865

Foam

513033916

$4.30

870

Retainer Plate

513033917

$0.52

875

Pop Rivet 3/16" | DS 650 X

293150104

$0.99
