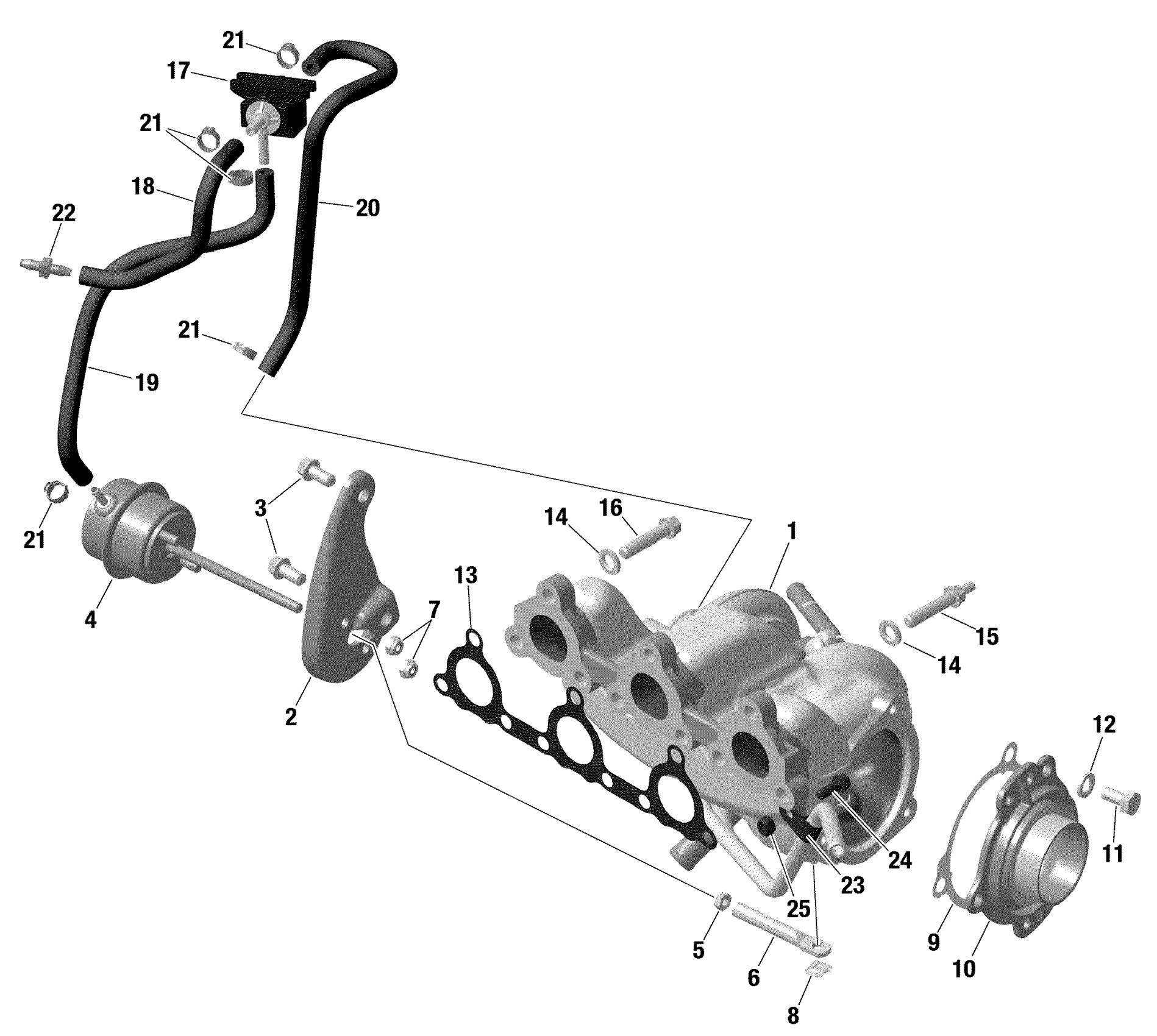

Ski-Doo GRAND TOURING 900 ACE Turbo, 2019 Turbocharger Diagram

#

Description
Price

1>12

Turbo Ass'y - for turbine/exhaust manifold replacement see TST 143931

420893881

$1,814.15

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4>6

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Circlip

420845000

$0.96

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Gasket | Included in gasket kit

420431850

$14.90

14

Washer

420827521

$5.19

15

Collar Screw M8 X 35

420440693

$4.37

16

Torx Flange Screw M8 X 35

420641188

$7.01

17

Solenoid Valve

420664636

$117.13

18

Hose 390MM This part replaces 420201231.

420201233

$20.12

19

Hose 390MM This part replaces 420201231.

420201233

$20.12

20

Hose 390MM This part replaces 420201231.

420201233

$20.12

21

Clamp 9.2-10.9 mm

420853133

$2.87

22

Tube Connector

420922160

$5.15

23

Cable Clamp

420851101

$1.99

24

Torx Flange Screw M6 X 16

420440162

$3.01

25

Lock Nut M6-10

420942046

$12.15
