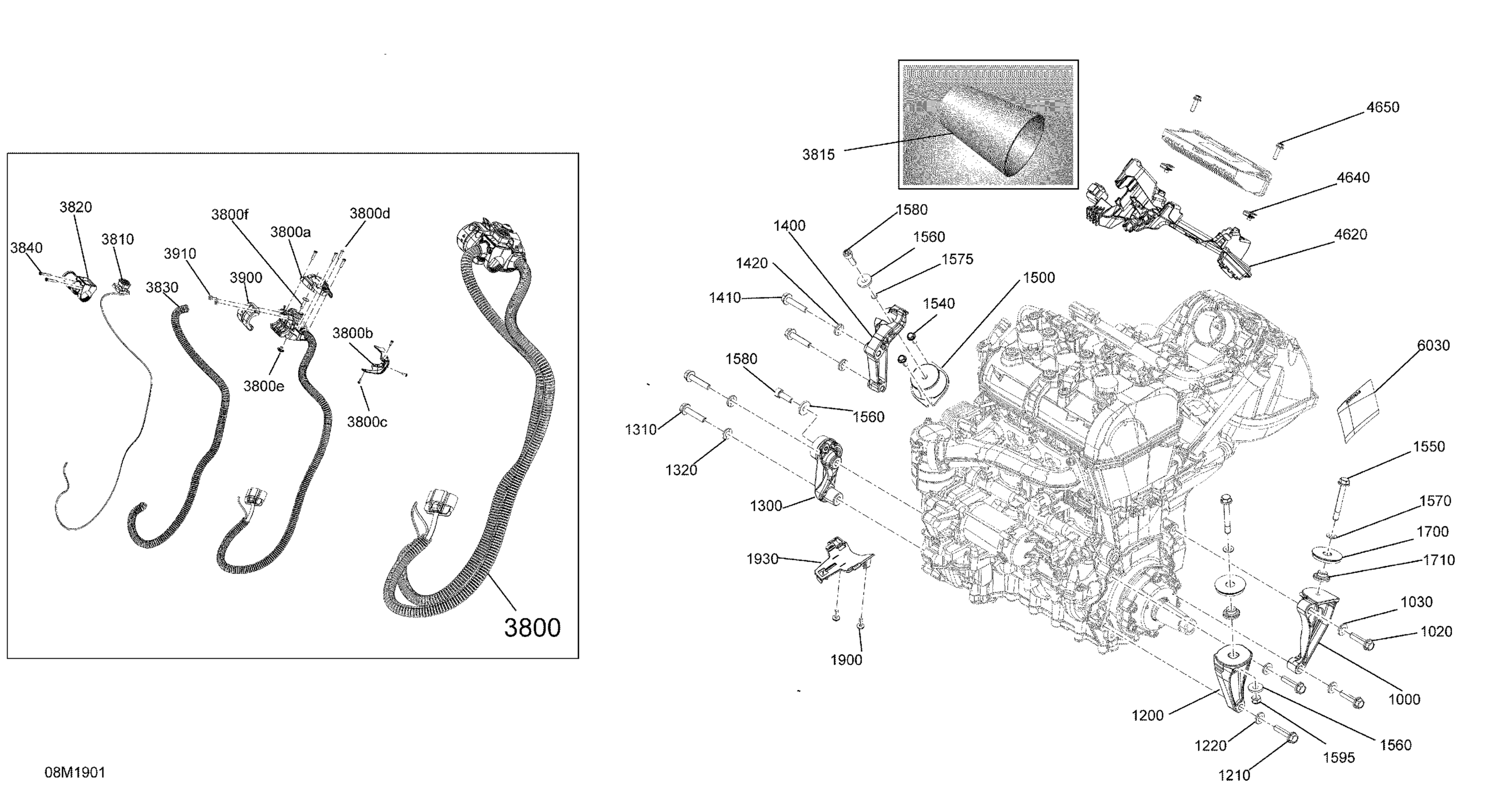

Ski-Doo GRAND TOURING 900 ACE Turbo, 2019 Engine - 900 ACE Turbo Diagram

#

Description
Price

1000

Rear PTO Support

512061220

$17.13

1020

Hex. Flange Screw M8 X 35

250000986

$2.00

1030

Conical Spring Washer M8

250200146

$0.96

1200

Front PTO Support

512061193

$17.13

1210

Hex. Flange Screw M8 X 35

250000986

$2.00

1220

Conical Spring Washer M8

250200146

$0.96

1300

Engine Support Ass'y | Includes 1300 to 1300c

512061519

$99.22

1310

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.22

1320

Conical Spring Washer M8

250200146

$0.96

1400

Rear Support, Mag

512061194

$17.88

1410

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.22

1420

Conical Spring Washer M8

250200146

$0.96

1500

Rubber Mount

512060729

$67.88

1540

Hex. Flange Screw M6 X 16

250001062

$1.39

1550

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

1560

Yellow, Washer

503183200

$2.91

1570

Flat Washer With Teflon 8 mm

250200008

$3.58

1575

O-Ring

293300123

$0.97

1580

Socket Head Screw M8 X 25

205082544

$1.06

1595

Hex. Elastic Stop Nut M8

232581414

$0.54

1700

Engine Stopper

512061536

$17.88

1710

Spacer

512060285

$17.13

1900

Torx Screw K50 X 16

250000720

$1.60

1930

Support Solenoid

512061327

$5.06

3800

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$270.12

3800a

Handle Ass'y kit

415130364

$91.01

3800b

Cap

512060862

$11.22

3800c

Torx Screw M2.9 x 9.5

250000623

$3.01

3800d

Torx Screw

250000671

$0.96

3800e

Screw

512060961

$10.21

3800f

Torx Screw M5 X 20

250000528

$2.00

3810

Emergency Stop Switch

515177931

$72.36

3815

Protector

512061214

$2.00

3820

Switch Support

512061453

$8.13

3830

Protector Tube

515177716

$4.28

3840

Torx Screw #8-18

250000263

$0.99

3900

Front Housing

512060987

$8.09

3910

Torx Screw M5 X 14

250000632

$7.09

4620

Module Support

512061197

$13.99

4640

Panel Nut M5 X 0.8

250000958

$4.00

4650

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

6030

Decal Checking Engine Oil

516007500

Unavailable
