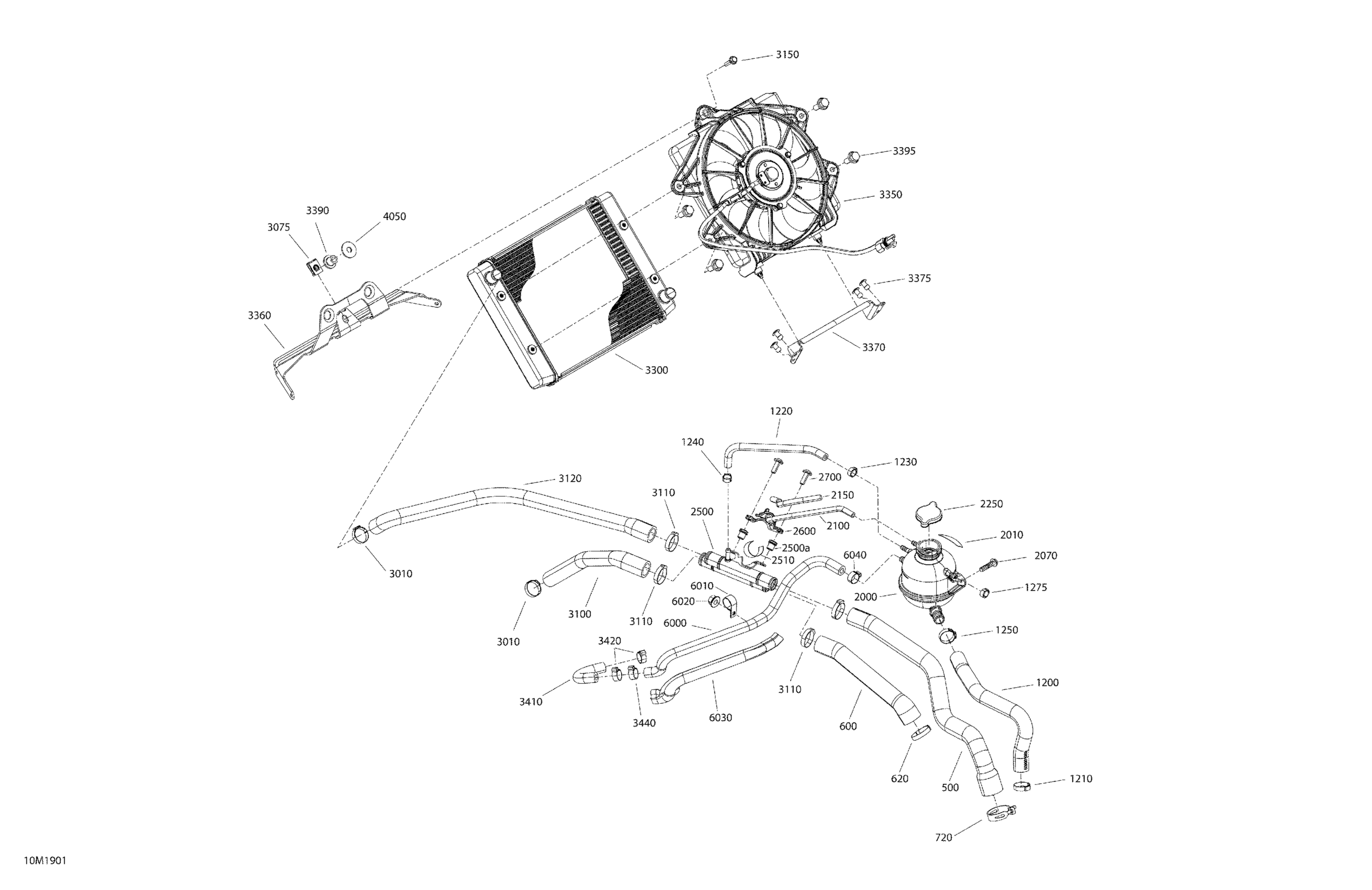

Ski-Doo 004 - GRAND TOURING 900 ACE Turbo, 2019 01- Cooling - 900 ACE Turbo - With Air Radiator Kit Diagram

Description

Price

500

Hose Radiator In

509001080

$14.49

600

Engine Outlet Hose

509001013

$18.49

620

Oetiker Gear Clamp 36.1MM

509000045

$8.29

720

Norma Spring Clamp

293650264

$4.44

1200

Coolant Tank Hose

509001083

$14.49

1210

Crimp Clamp

293650099

$4.29

1220

Hose

509001035

$23.49

1230

Oetiker Clamp

293650046

$2.89

1240

Oetiker Clamp

293650046

$2.89

1250

Oetiker Clamp

509001041

$2.09

1275

Oetiker Clamp

293650046

$2.89

2000

Cooling Tank

509001034

$91.99

2010

Warning Decal

516005904

Unavailable

2070

Hex. Flange Screw K50 X 20

241152060

$1.99

2100

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

2150

Protector Tube

504153074

$14.49

2250

Radiator Pressure Cap

509000180

$20.49

2500

Coolant Pipe | Includes 2500 to 2500f

509001030

$25.99

2500a

Insert M5 X 0.8

293450268

$2.09

2510

Protector

512061214

$2.11

2600

Clamp

509001049

$4.55

2700

Torx Screw M5 X 14

250000742

$1.47

3010

Crimp Clamp

293650099

$4.29

3075

Panel Nut M6 X 1.0

250100208

$1.46

3100

Hose Radiator In

509001350

$13.82

3110

Oetiker Clamp

293650141

$4.29

3120

Hose Radiator Out

509001084

$14.49

3150

Hex. Flange Screw M6 X 25

207562544

$1.69

3300

Front Radiator This part replaces 509001465.

509001057

$174.99

3350

Fan

509001114

$154.99

3360

Central Radiator Support

509001023

$19.49

3370

Lower Radiator Support

509001024

$4.12

3375

Avex Rivet

390909100

$0.30

3390

Bushing

293900100

$7.65

3395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

3410

Hose

509001090

$23.49

3420

Oetiker Clamp

293650011

$3.09

3440

Oetiker Clamp

293650011

$3.09

4050

Flat Washer

250200082

$0.42

6000

Hose

509001092

$14.49

6010

Clamp

512061265

$6.19

6020

Hex. Flange Nut M6

233061414

$1.68

6030

Tube 25Mm 1000Mm Long | Engine 450

219704350

$53.99

6040

Oetiker Clamp

293650011

$3.09
