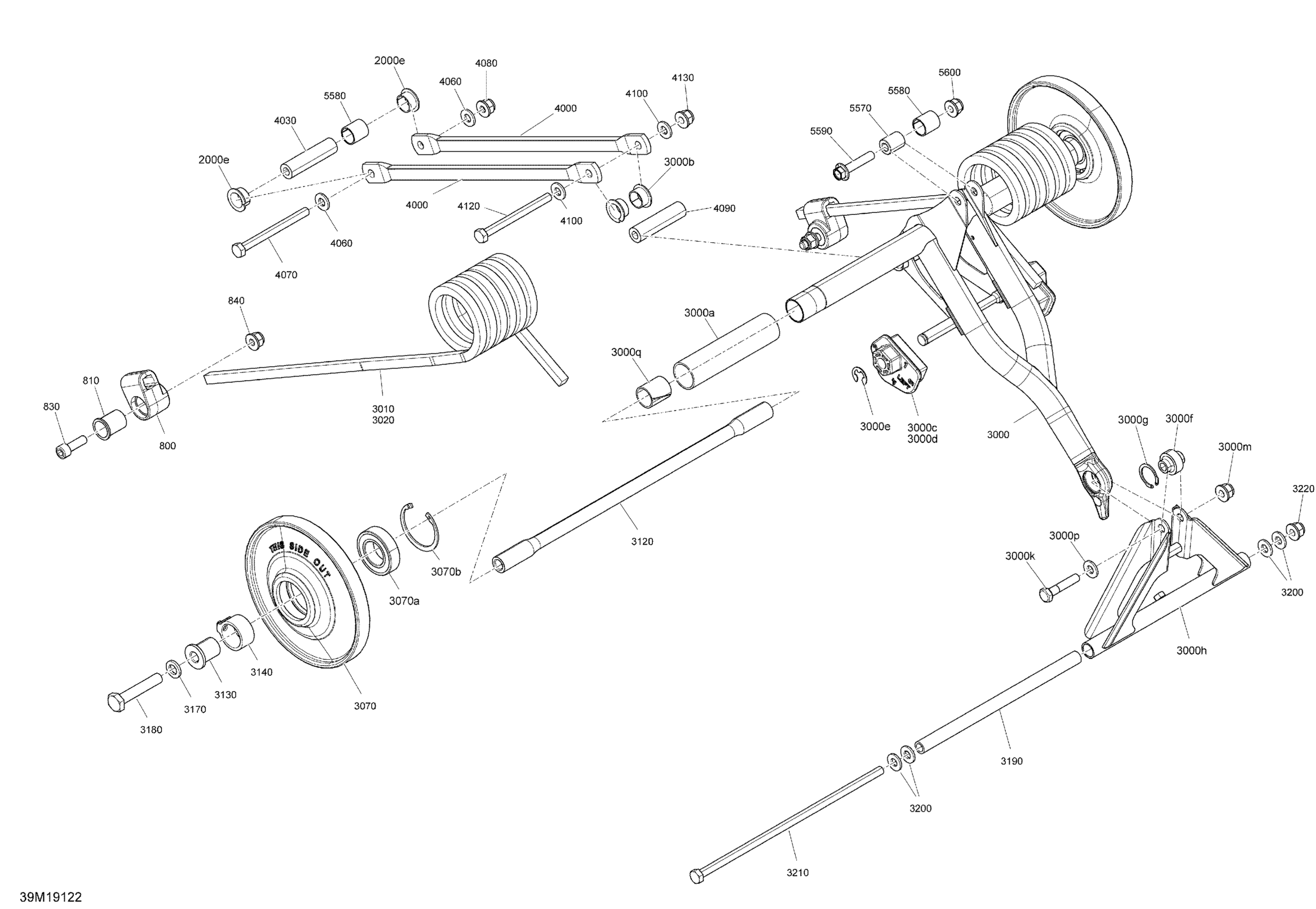

Ski-Doo FREERIDE 165 850 E-TEC, 2019 Rear Suspension - Upper Section Diagram

#

Description
Price

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

2000e

Swivel Bushing

503191555

$7.83

3000

Rear Arm Ass'y | Included 3000 to 3000q

503194296

$444.99

3000a

Bushing

503193218

$12.58

3000b

Swivel Bushing

503191555

$7.83

3000c

LH Cam Adjuster

503191565

$16.49

3000d

RH Cam Adjuster

503191566

$16.49

3000e

E-Circlip

293370013

$0.65

3000f

Radial Joint

503194035

$72.99

3000g

Inner Circlip

293370114

$4.54

3000h

Pivot Arm

503193699

$129.99

3000k

Hex. Screw M8 X 1.25 X 40

207084056

$3.17

3000m

Elastic Flange Nut M8

233281466

$1.01

3000p

Washer

503192494

$3.17

3000q

Extended Bushing

503191556

$7.83

3010

Black, LH Spring Square

503193158

$79.49

3020

Black, RH Spring Square

503193159

$79.49

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503193441

$38.99

3130

Bushing

503194970

$15.79

3140

Retaining Ring

503193439

$16.49

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Acceleration Link Rod

503192900

$28.49

4030

Axle

503193993

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle

503193993

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01
