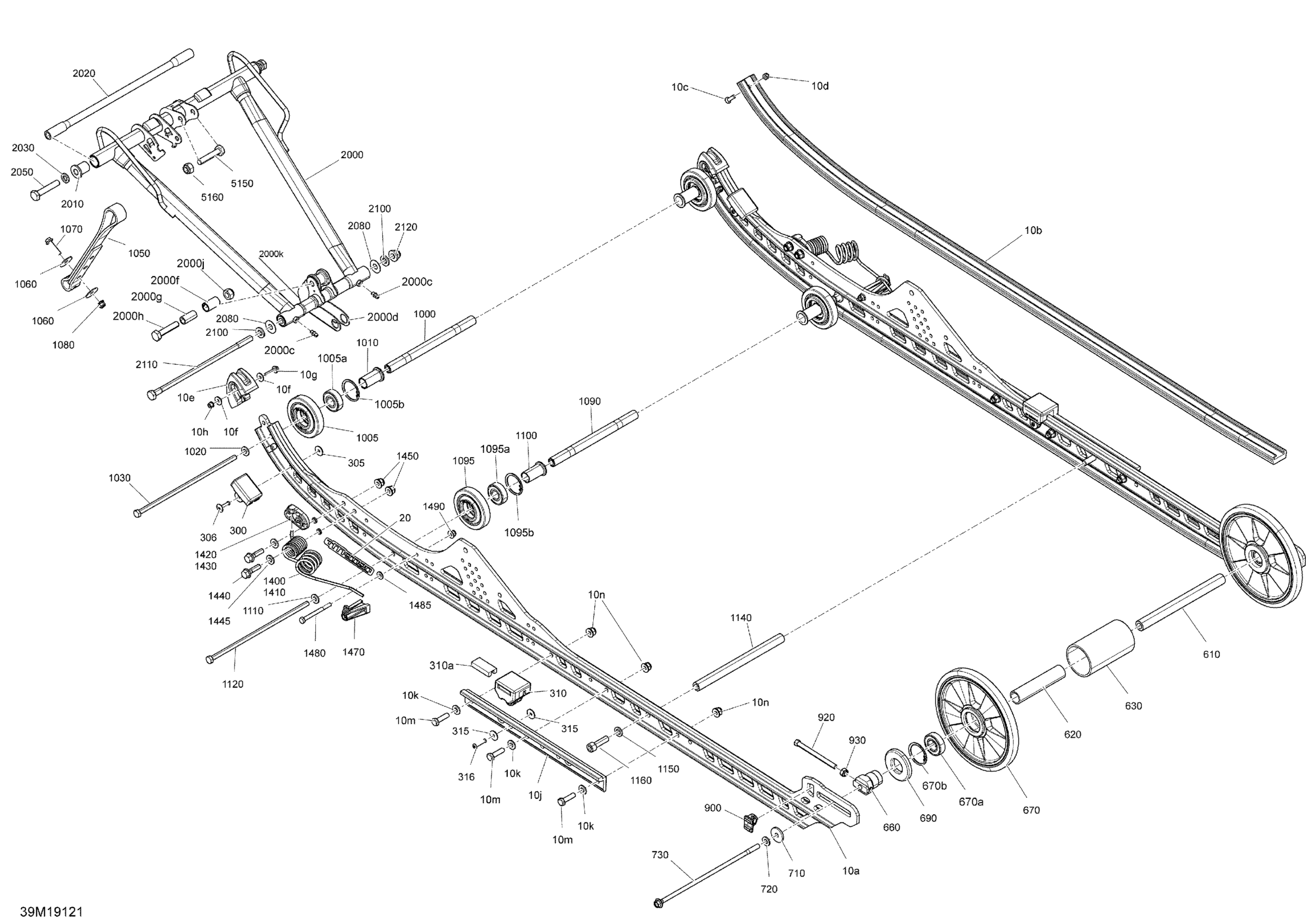

Ski-Doo FREERIDE 165 850 E-TEC, 2019 Rear Suspension - Lower Section Diagram

#

Description
Price

10a

Can-Am Red, Runner 165

503195164

$272.36

10b

Slider 165

503194254

$39.52

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561414

$1.78

10e

Rail Protector

503196874

$22.36

10f

Washer

250200140

$0.96

10g

Hex. Flange Screw M5 X 25

207652544

$0.48

10h

Flange Elastic Nut M5

233251434

$1.91

10j

Black Runner Reinforcement

503193853

$52.21

10k

Washer

503192494

$3.01

10m

Hex. Cap Screw M8 X 30

207183054

$4.15

10n

Elastic Flange Nut M8

233281466

$0.96

20

Runner Decal

516006381

$12.42

240

Flange Elastic Nut M5

233251434

$1.91

300

Rubber Stopper

503190576

$9.93

305

Washer

503191273

$1.03

306

Pop Rivet 3/16

293150224

$0.96

310

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$17.13

310a

Reinforcement Stopper

572084800

$5.09

315

Washer

503191273

$1.03

316

Pop Rivet 3/16"

293150013

$1.27

610

Rear Axle

503194261

$70.12

620

Spacer

503194280

$13.54

630

Bushing

503194286

$14.46

660

Tip

503194747

$18.63

670

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$48.48

670a

Ball Bearing | Package-STD

503190396

$8.18

670b

Retaining Ring

415129371

$8.66

690

Labyrinth Seal

503190434

$4.16

710

Washer

503194264

$10.03

720

Washer

503192494

$3.01

730

Bolt

503194265

$26.09

900

Tensioner

503194266

$6.39

920

Hex. Cap Screw M8 X 95

503194267

$6.21

930

Hex. Elastic Stop Nut M8

232581414

$0.54

1000

Axle

503196069

$10.13

1005

Black, Wheel Ass'y

503195125

$31.31

1005a

Ball Bearing

503194917

$12.15

1005b

Retaining Ring

415129371

$8.66

1010

Center Bushing

503191259

$8.70

1020

Washer

503192494

$3.01

1030

Bolt M8 X 248mm

503192440

$29.07

1050

Stopper Strap

503194679

$27.58

1060

Washer | Not Shown

503193995

$4.25

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

1080

Hex. Flange Elastic Nut M6

233261466

$1.91

1090

Pivot Axle

503195954

$9.18

1095

Black, Wheel Ass'y

503195125

$31.31

1095a

Ball Bearing

503194917

$12.15

1095b

Retaining Ring

415129371

$8.66

1100

Center Bushing

503191259

$8.70

1110

Washer

503192494

$3.01

1120

Bolt M8 X 248mm

503192440

$29.07

1140

Axle Strap

503191260

$28.33

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1400

LH Spring

503194900

$64.90

1410

RH Spring

503194901

$64.90

1420

LH Support

503194294

$38.78

1430

RH Support

503194295

$38.78

1440

Hex. Flange Screw M8 X 30

207683054

$2.00

1445

Washer

503192494

$3.01

1450

Elastic Flange Nut M8

233281466

$0.96

1470

Hook Ass'y

503195087

$7.16

1480

Hex. Cap Screw M6 X 70

207167054

$4.15

1485

Flat Washer

250200039

$0.70

1490

Hex. Flange Elastic Nut M6

233261466

$1.91

2000

Front Arm Ass'y | Includes 2000 to 2000n

503195197

$231.31

2000c

Grease Fitting

408200700

$3.21

2000d

Rocker

503193464

$76.09

2000f

Bushing

503193037

$14.90

2000g

Bushing | Includes 240d to 240d1

503189282

$4.06

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.63

2000k

Spacer

503194466

$22.36

2010

Bushing

503194970

$13.19

2020

Upper Shaft

503193441

$35.04

2030

Washer

503192496

$0.73

2050

Hex. Screw S.Grip M10 X 55

250000605

$7.09

2080

Washer

250200032

$4.84

2100

Flat Washer

250200143

$3.01

2110

Bolt M10 X 251MM

503193227

$15.64

2120

Flange Elastic Nut M10

233201466

$3.01

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5160

Elastic Locking Nut M10

233601466

$2.00
