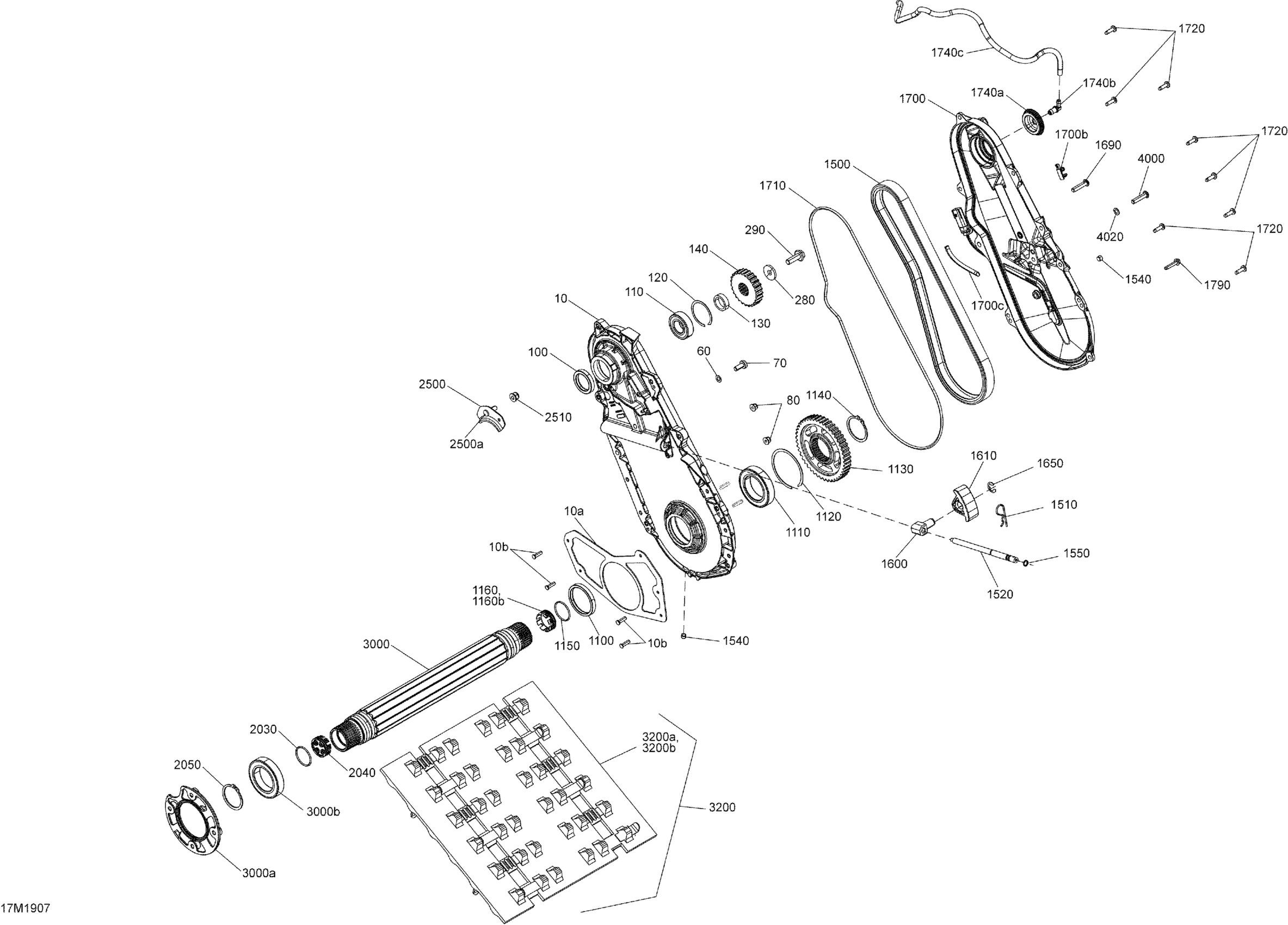

Ski-Doo FREERIDE 165 850 E-TEC, 2019 Drive - 165 - 850 E-TEC Diagram

#

Description
Price

10

Black, Chain Case Ass'y

504154102

$349.99

10a

Plate Ass'y

504153560

$79.99

10b

Flange Elastic Nut M6

233261434

$4.44

60

Washer

504082900

$2.64

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

130

Shim

504152628

$10.99

140

Sprocket, 21 Teeth

504096200

$93.99

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Sprocket, 53 Teeth

504153778

$189.99

1140

Circlip

504152572

$6.95

1150

O-Ring

293300201

$1.01

1160

Magnetic Cap Ass'y | Includes 1160 to 1160a

504153696

$26.49

1160a

Magnetic Cap

504153697

$2.11

1500

Drive Chain 116 Links

504153397

$227.99

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Magnetic Plug

504153704

$5.19

1550

O-Ring

293300202

$1.01

1600

Tensioner

504153559

$18.99

1610

Slider Chain

504153312

$65.99

1650

Circlip

293370105

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Chain Case Cover Ass'y | Includes 1700 to 1700c

504153903

$189.99

1700b

Clip Connector

515178223

$2.09

1700c

Braided Sleeve

415130141

$55.99

1710

O-Ring

293300200

$13.16

1720

Torx T-30 Pan HD Taptite M6X20

250001012

$0.55

1740

Cap Ass'y | Includes 1740 to 1740c

504153535

Unavailable

1740a

Cap

504152860

$20.49

1740b

Male Connector

414580700

$4.12

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1790

Hex. Flange Screw M6 X 35

250001015

$1.46

2030

O-Ring

293300201

$1.01

2040

Magnetic Cap

504153697

$2.11

2050

Circlip

504152572

$6.95

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500a

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000b

504153951

$529.99

3000a

Retaining Ring

504153886

$21.99

3000b

Ball Bearing

293350059

$30.99

3200

Track 16 X 165 X 2,5 | Includes 3200 to 3200b

504154406

$1.00

3200

Track 16 X 165 X 2,5 | Includes 3200 to 3200b

504154406

$1.00

3200

Track Ass'y 16" X 165" X 3" | Includes 3200 to 3200b

504153786

$1.00

3200

Track Ass'y 16" X 165" X 3" | Includes 3200 to 3200b

504153786

$1.00

3200a

Track Guide

415130083

$3.29

3200b

Cleat

415130084

$8.59

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64
