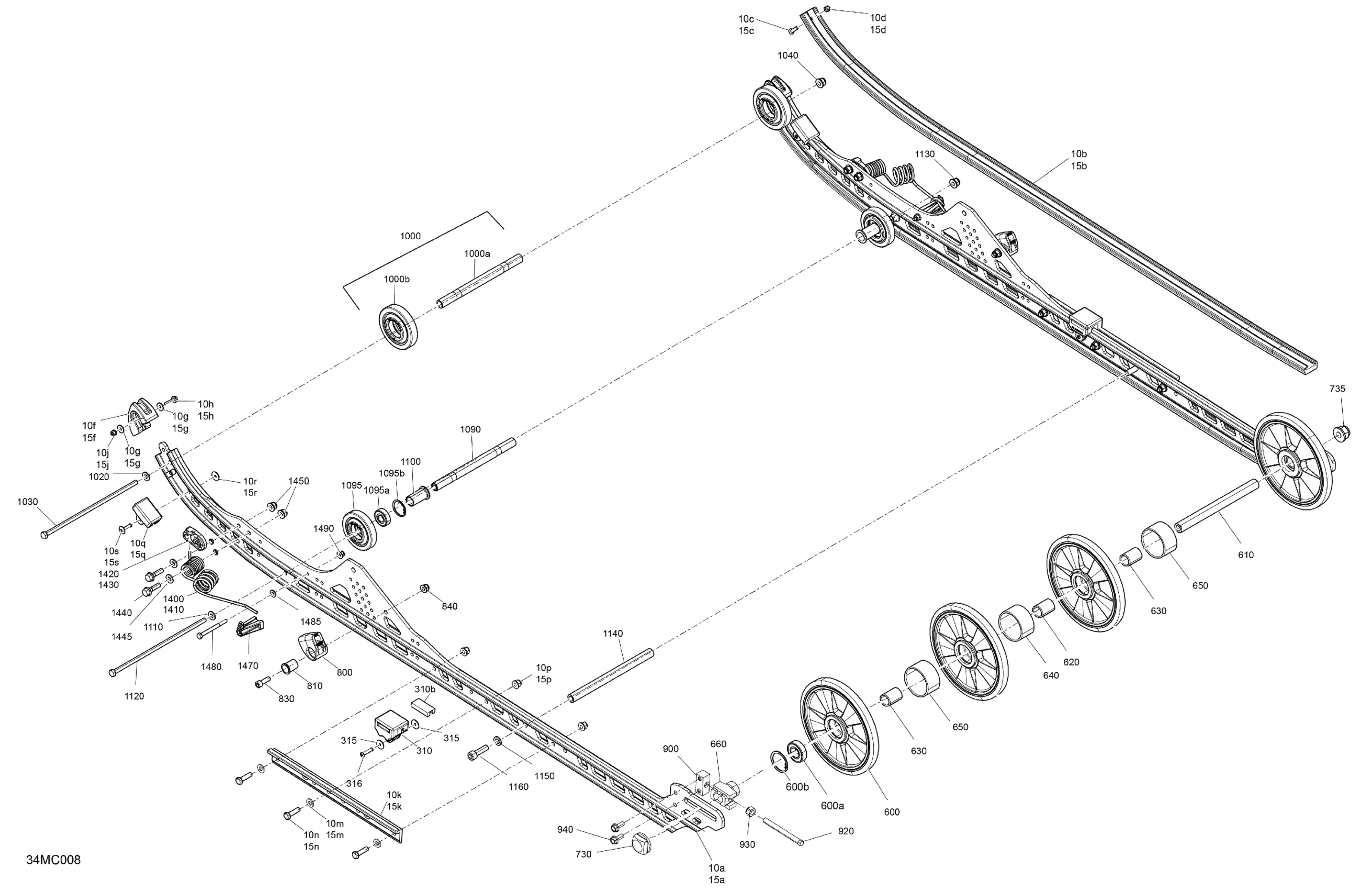

Ski-Doo 004 - FREERIDE 154 - 850 E-TEC Turbo R - North America, 2023 05- Suspension - Rear - Lower Section - Diagram

#

Description
Price

10a

Spartan Red, Rail Suspension 154 This part replaces 503196613.

503197301

$309.99

10b

Black, Slider 154

503191198

$34.99

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561434

$1.99

10f

Runner Protector

503192299

$24.99

10g

Washer

250200140

$1.01

10h

Hex. Flange Screw M5 X 25

207652544

$0.50

10j

Flange Elastic Nut M5

233251434

$2.00

10k

Rail Reinforcement

503195826

$57.99

10m

Washer

503192494

$3.17

10n

Hex. Cap Screw M8 X 30

207183054

$4.44

10p

Elastic Flange Nut M8

233281466

$1.01

10q

Rubber Stopper

503190576

$12.99

10r

Washer

503191273

$1.35

10s

Rivet Ornit 4.8 X 27.5

293150256

$2.40

15a

Spartan Red, Rail Suspension 154 This part replaces 503196613.

503197301

$309.99

15b

Black, Slider 154

503191198

$34.99

15c

Phillips Screw M6 X 25

208562531

$2.11

15d

Elastic Stop Nut M6

232561434

$1.99

15f

Runner Protector

503192299

$24.99

15g

Washer

250200140

$1.01

15h

Hex. Flange Screw M5 X 25

207652544

$0.50

15j

Flange Elastic Nut M5

233251434

$2.00

15k

Rail Reinforcement

503195826

$57.99

15m

Washer

503192494

$3.17

15n

Hex. Cap Screw M8 X 30

207183054

$4.44

15p

Elastic Flange Nut M8

233281466

$1.01

15q

Rubber Stopper

503190576

$12.99

15r

Washer

503191273

$1.35

15s

Rivet Ornit 4.8 X 27.5

293150256

$2.40

310

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$19.49

310b

Rubber Stopper Ass'y

503195523

$5.59

315

Washer

503191273

$1.35

316

Pop Rivet 3/16"

293150013

$1.37

600

Wheel 200 MM | Includes 600 to 600b

503196704

$51.99

600a

Ball Bearing

503193548

$17.99

600b

Retaining Ring

415129780

$15.79

610

Rear Axle

503193692

$139.99

620

Spacer

503196705

$25.99

630

Spacer

503196706

$17.49

640

Spacer

503196707

$5.59

650

Spacer

503196708

$5.59

660

Spacer

503193694

$38.99

730

Nut

503193695

$27.49

735

Nut

503193696

$25.99

800

Spring Support Kit

861805547

$10.49

810

Bushing

503196210

$12.64

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503193697

$40.99

920

Hex Screw M10 x 100

230100054

$6.45

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex Screw Washer Head M8 X 20

207582054

$3.17

1000

Front Wheel Axle Ass'y | Includes 1000 to 1000b

503196253

$73.99

1000a

Axle

503196663

$24.99

1000b

Black, Wheel Ass'y

503195125

$33.99

1020

Washer

503192494

$3.17

1030

Bolt M8 X 248mm

503192440

$30.49

1040

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503195954

$9.74

1095

Black, Wheel Ass'y

503195125

$33.99

1095a

Ball Bearing

503194917

$14.23

1095b

Retaining Ring

415130193

$8.68

1100

Spacer

503195825

$1.69

1110

Washer

503192494

$3.17

1120

Bolt M8 X 248mm

503192440

$30.49

1130

Elastic Flange Nut M8

233281466

$1.01

1140

Axle Strap

503191260

$30.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1400

LH Spring

503194900

$67.99

1410

RH Spring

503194901

$67.99

1420

LH Support

503194294

$42.99

1430

RH Support

503194295

$42.99

1440

Hex. Flange Screw M8 X 30

207683054

$2.11

1445

Washer

503192494

$3.17

1450

Elastic Flange Nut M8

233281466

$1.01

1470

Hook Ass'y

503196336

$9.39

1480

Hex. Cap Screw M6 X 70

207167054

$4.44

1485

Flat Washer

250200039

$0.74

1490

Hex. Flange Elastic Nut M6

233261466

$2.00
