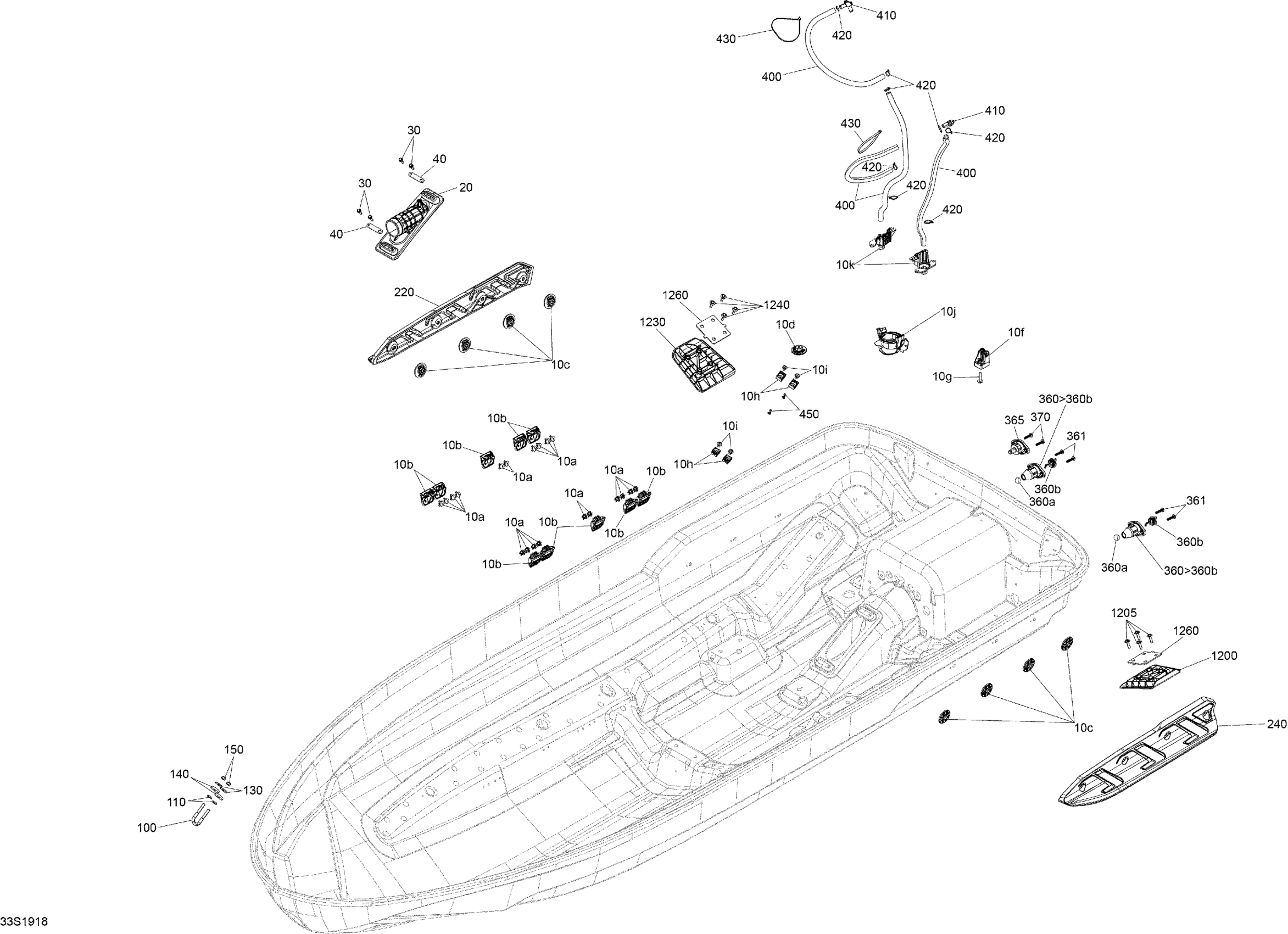

Sea-doo FISH PRO, 2019 Hull Diagram

#

Description
Price

10a

Rivet | Model-T3

293150067

$2.89

10b

Strap Retaining

270000933

$6.99

10c

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

10d

Insert M8

293450371

$12.99

10f

Strap Anchor

270000988

$10.28

10g

Hexagonal Cap Screw M6 X35

250000399

$4.44

10h

Strap Anchor

270000854

$7.76

10i

Pop Rivet 3/16

293150186

$2.09

10j

Transducer Support

292002128

$9.79

10k

Pump Support

269800956

$3.39

20

Through Hull Fitting

293450362

$36.99

30

Hex. Flange Screw M6.81 x 20

243162060

$3.72

40

Reinforcement

291004907

$2.89

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Rubber Washer

293830037

$2.68

150

Hex. Elastic Nut M8 Brass

232581200

$2.22

220

RH Sponson

292001953

$54.99

240

LH Sponson

292001954

$65.99

360>360b

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

360a

Floating Ball

293830080

$7.19

360b

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

361

Screw Torx M6.81 X 30

250001007

$2.54

365

Drain Neck Ass'y

292002153

$14.49

370

Screw Torx M6.81 X 30

250001007

$2.54

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

410

Fitting Elbow 90°

293710152

$18.49

420

Tie Wrap 94 mm | 4X4

293750001

$1.03

430

Tie Wrap 368 mm

293750008

$1.04

450

Avdel Rivet 3/16"

293150037

$0.56

1200

LH Trim Tab

292002102

$18.49

1205

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1230

RH Trim Tab

292002103

$18.49

1240

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1260

Gasket

277002171

$4.33
