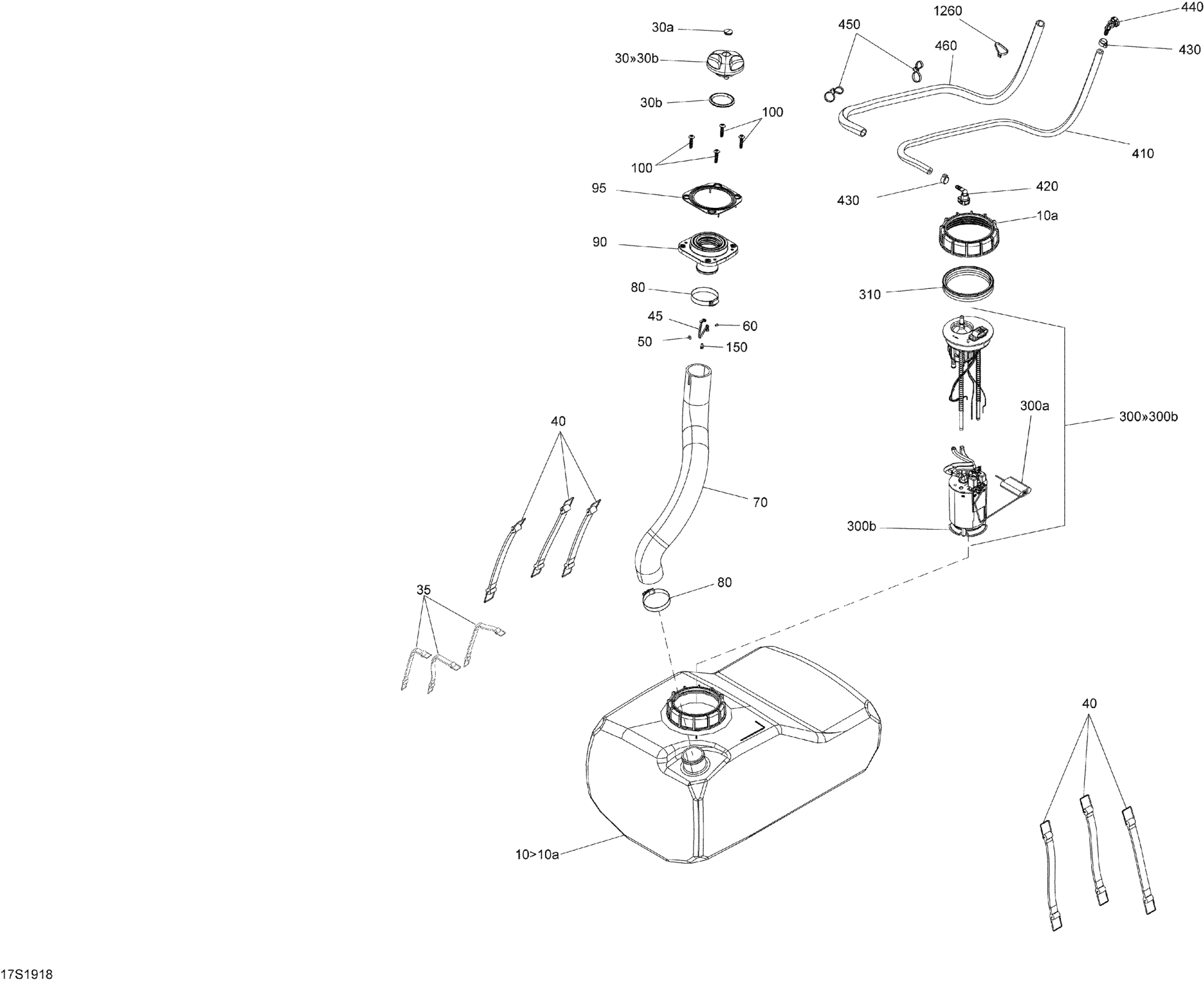

Sea-doo FISH PRO, 2019 Fuel System Diagram

#

Description
Price

10>10a

Fuel Tank | Includes 10 to 10a

275500997

$320.87

10a

Special Nut M130

250100062

$20.12

35

Holding Strap

293850112

$16.39

40

Holding Strap

293850112

$16.39

50

Holding Strap

293850134

$19.37

70

Formed Hose

275500999

$79.82

80

Norma Clamp

293650081

$11.33

90a

Filler Neck

275500986

$14.79

90b

Gasket

293250434

$3.54

90c

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$55.19

90c1

Black, Snap Cap

293000034

$8.58

90c2

Gasket

293250417

$3.64

90d

Fuel Cap Chain

275500972

$15.64

90e

Flat Washer M3, Stainless

234032600

$0.52

90f

Pop Rivet 1/8"

390407900

$1.34

100

Screw Torx M6.81 X 30

250001007

$1.85

150

Screw K40 X 10

241140060

$1.43

300>300b

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$426.84

300a

Sensor Lever

275500780

$202.21

300b

Fuel Filter

270600113

$31.31

310>310f

Gasket

293250173

$17.88

310a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

310b

Quick Disconnect

275500921

$14.48

310c

Crimp Clamp

293650053

$2.78

310d

Elbow Fitting 90°

293710105

$12.15

310e

Tie Rap 300mm

293750053

$1.99

310f

Tubing 16 Mm 1000Mm Long

219704408

$7.15

1260

Tie Wrap 368 mm

293750008

$0.97
