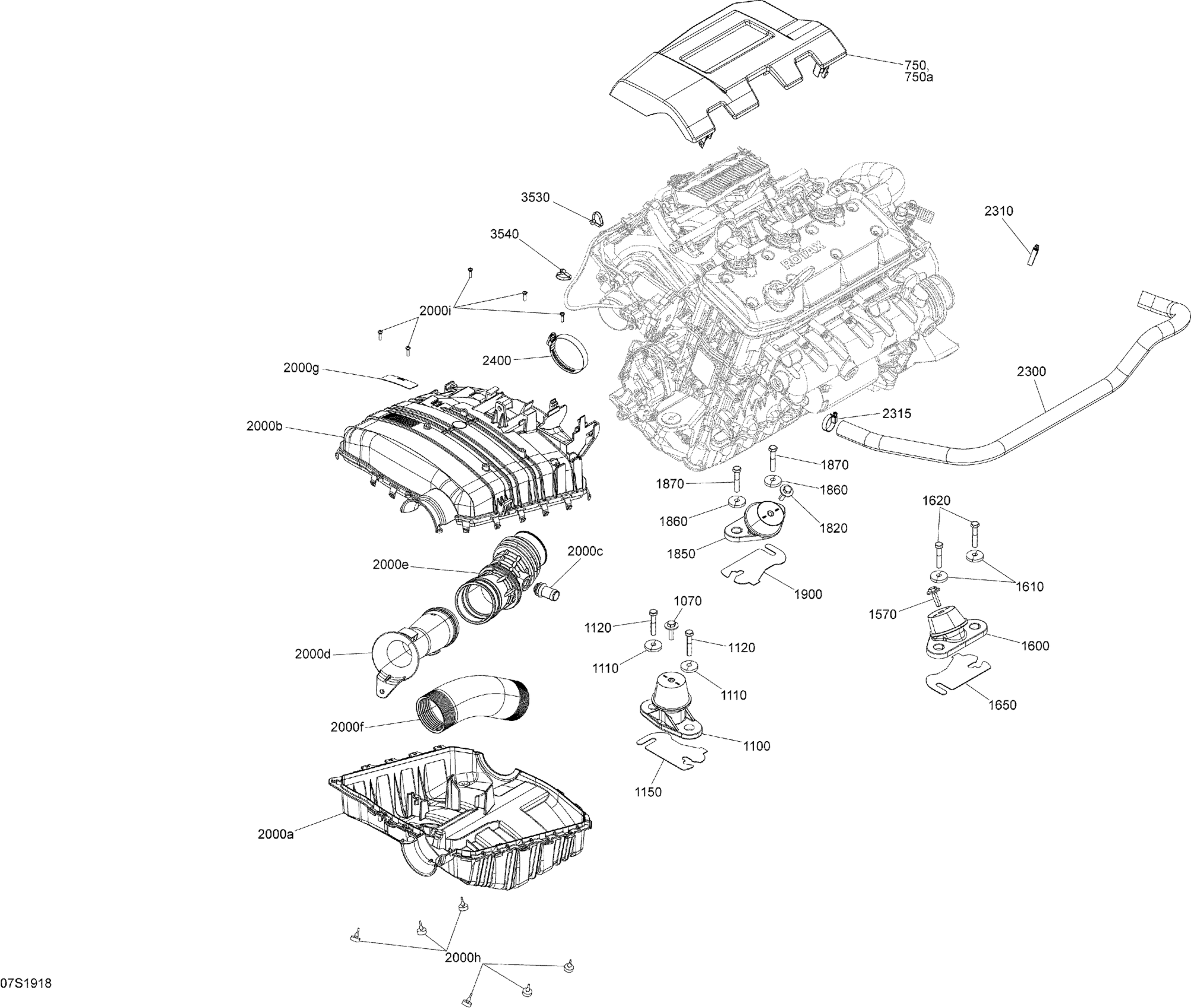

Sea-doo FISH PRO, 2019 Engine Diagram

Engine Cover Ass'y | Includes 750 TO 750b

270001002

$66.39

Was 293250388 Seal

219704383

$25.34

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

Engine Support Ass'y

270001096

$88.78

Cone Washer

250200018

$5.33

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

Shim 1.3 mm

270000762

$10.37

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

Engine Support Ass'y

270001081

$96.99

Cone Washer

250200018

$5.33

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

Shim 1.3 mm

270000762

$10.37

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

Engine Support Ass'y

270001081

$96.99

Cone Washer

250200018

$5.33

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

Shim 1.3 mm

270000762

$10.37

Airbox Base

273000354

$51.46

Intake Silencer Cover

273000389

$67.88

Breather Valve

273000234

$12.21

Intake Hose

273000358

$20.12

Hose Connector

273000382

$44.00

Air Silencer Hose

273000290

$20.12

Air Silencer Notice Decal

219903177

Unavailable

Rubber Stopper

708000759

$4.15

Flange Torx Screw K40 X 16

250000287

$2.00

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

Gear Clamp

293650284

$4.15

Gear Clamp

293650284

$4.15

Tridon Clamp

293650179

$10.12

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10
