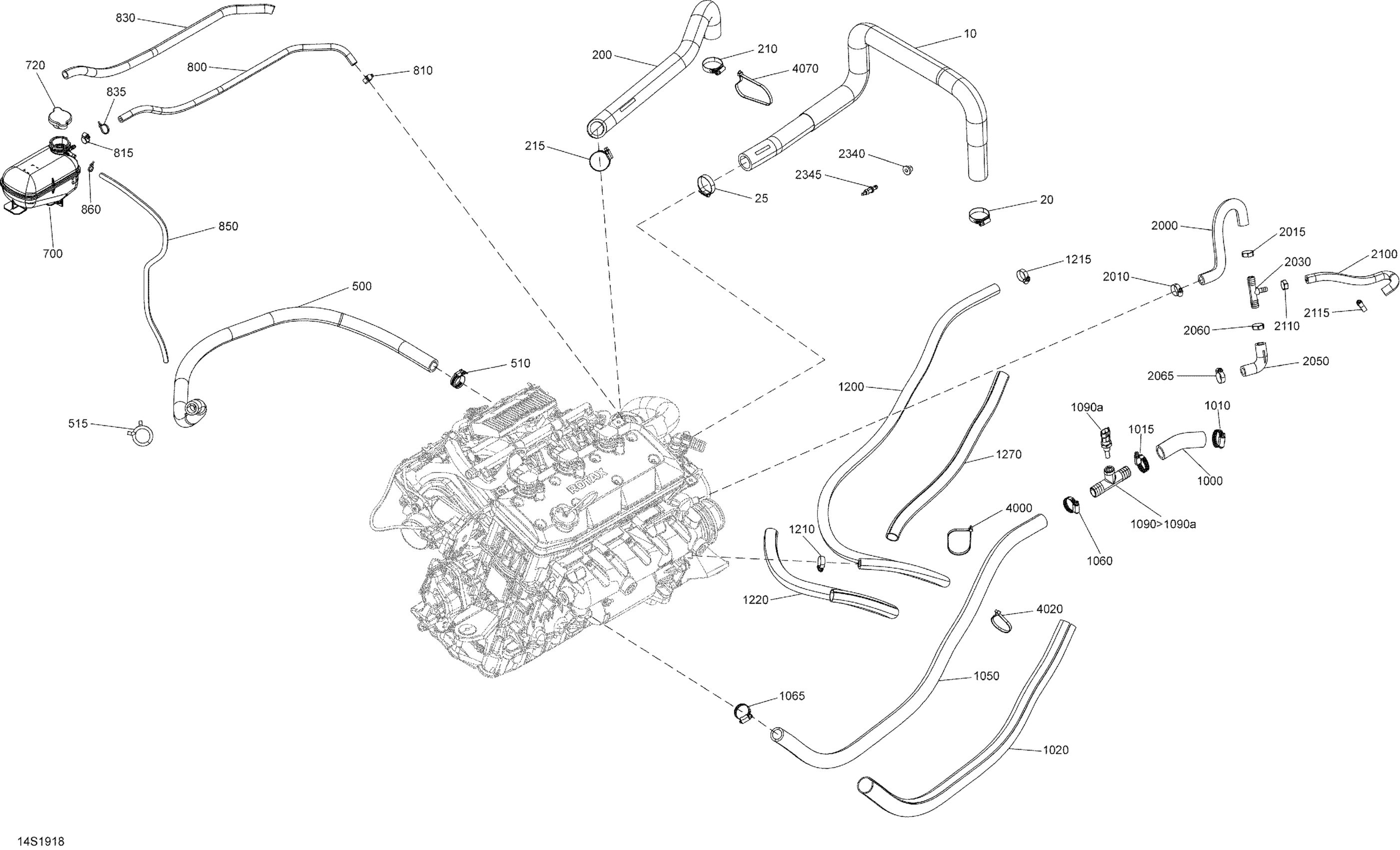

Sea-doo FISH PRO, 2019 Cooling System Diagram

#

Description
Price

10

Hose Riding Plate LH

276000462

$66.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

200

Hose Riding Plate RH

276000487

$52.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

500

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

700

Coolant Tank

276000419

$119.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

810

Tridon Gear Clamp

293650170

$1.99

815

Tridon Gear Clamp

293650170

$1.99

830

Was 409901800 Tubing (13 mm)

219704400

$14.49

835

Tie Wrap 94 mm | 4X4

293750001

$1.03

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

860

Tie Wrap 94 mm | 4X4

293750001

$1.03

1000

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1010

Tridon Gear Clamp

293650051

$4.19

1015

Tridon Gear Clamp

293650051

$4.19

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1050

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1060

Tridon Gear Clamp

293650051

$4.19

1065

Tridon Gear Clamp

293650051

$4.19

1090

Sensor Ass'y | Includes 1090 to 1090b

293710143

$63.99

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Tridon Gear Clamp

293650172

$3.09

1215

Tridon Gear Clamp

293650172

$3.09

1220

Was 515175319 Tubing 22 mm

219704423

$14.99

1270

Was 515175319 Tubing 22 mm

219704423

$14.99

2000

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2010

Tridon Gear Clamp

293650172

$3.09

2015

Oetiker Clamp

293650012

$7.49

2030

T-Fitting

293710116

$17.62

2050

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

2060

Oetiker Clamp

293650012

$7.49

2065

Tridon Gear Clamp

293650172

$3.09

2100

Formed Hose | Without Catalyst

276000246

$19.49

2110

Oetiker Clamp | Europe

293650030

$5.19

2115

Tridon Gear Clamp

293650172

$3.09

2340

Grommet

293720029

$1.59

2345

Straight Fitting

293710133

$14.75

4000

Tie Wrap 368 mm

293750008

$1.04

4020

Tie-Rap 180 mm

414115200

$0.11

4070

Tie Wrap 368 mm

293750008

$1.04
