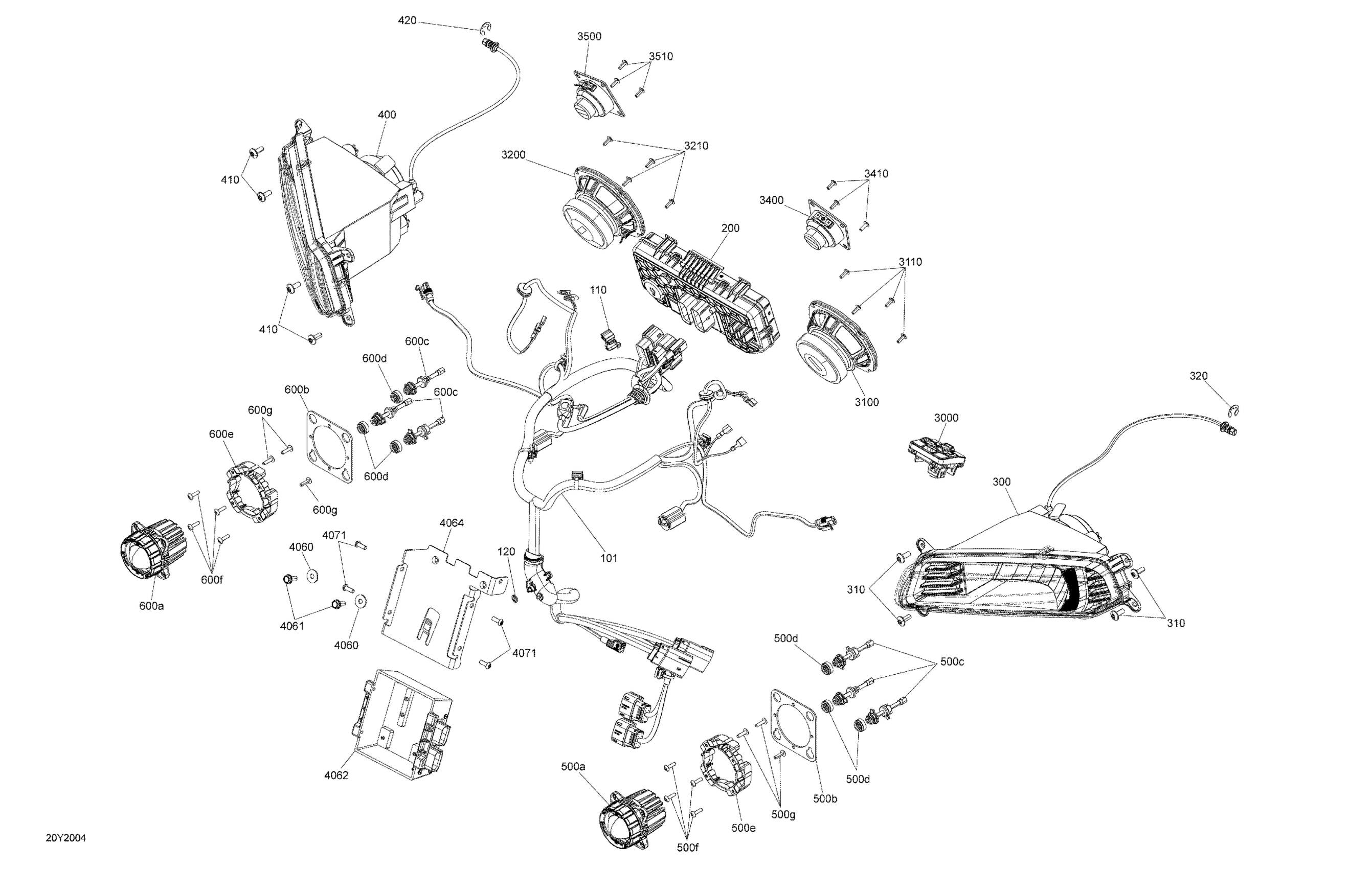

Can-Am F3 T SE6, 2021 Electrical System Console Diagram

#

Description
Price

101

Console Wiring Harness

710008436

$349.99

101

Console Wiring Harness

710008437

$349.99

110

Clip Tie-Rap

293750063

$8.75

120

Push Nut

250100034

$1.29

200

Multifunction Gauge | Models Liquid Titan

710006873

$1,219.99

300

LH Headlight | Includes 0b to 0b3

710006997

$239.99

310

Torx Truss Screw M6 X 16

250000721

$1.69

320

E-Circlip

293370013

$0.65

400

RH Headlight | Includes 0d to 0d3

710006998

$239.99

410

Torx Truss Screw M6 X 16

250000721

$1.69

420

E-Circlip

293370013

$0.65

500a

Low Beam Ass'y

710006007

$349.99

500b

Headlight Support

710007188

$15.49

500c

Adjustment Screw

710007200

$10.27

500d

Clip

293730095

$1.68

500e

Adapter

710007189

$3.59

500f

Torx-Truss Pt K40 X 16

250000759

$2.11

500g

Torx-Truss Pt K40 X 16

250000759

$2.11

600a

Low Beam Ass'y

710006007

$349.99

600b

Headlight Support

710007188

$15.49

600c

Adjustment Screw

710007200

$10.27

600d

Clip

293730095

$1.68

600e

Adapter

710007189

$3.59

600f

Torx-Truss Pt K40 X 16

250000759

$2.11

600g

Torx-Truss Pt K40 X 16

250000759

$2.11

3000

Audio Keypad

710006793

$88.99

3100

4.5" Speaker

710005433

$35.99

3110

Torx Truss Screw K40 X 12

250000577

$2.11

3200

4.5" Speaker

710005433

$35.99

3210

Torx Truss Screw K40 X 12

250000577

$2.11

3400

2.5" Speaker

710005432

$22.49

3410

Torx Truss Screw K40 X 12

250000577

$2.11

3500

2.5" Speaker

710005432

$22.49

3510

Torx Truss Screw K40 X 12

250000577

$2.11

4060

Stainless Steel Flat Washer

234062670

$2.11

4061

Hex. Flange Screw M6 X 16

210261650

$1.67

4062

Amplifier 6 x 20 Watts

710006566

$455.49

4064

Amplifier Holder

710005814

$17.49

4071

Screw-Torx Button Head M5 X 14

235551454

$7.51
