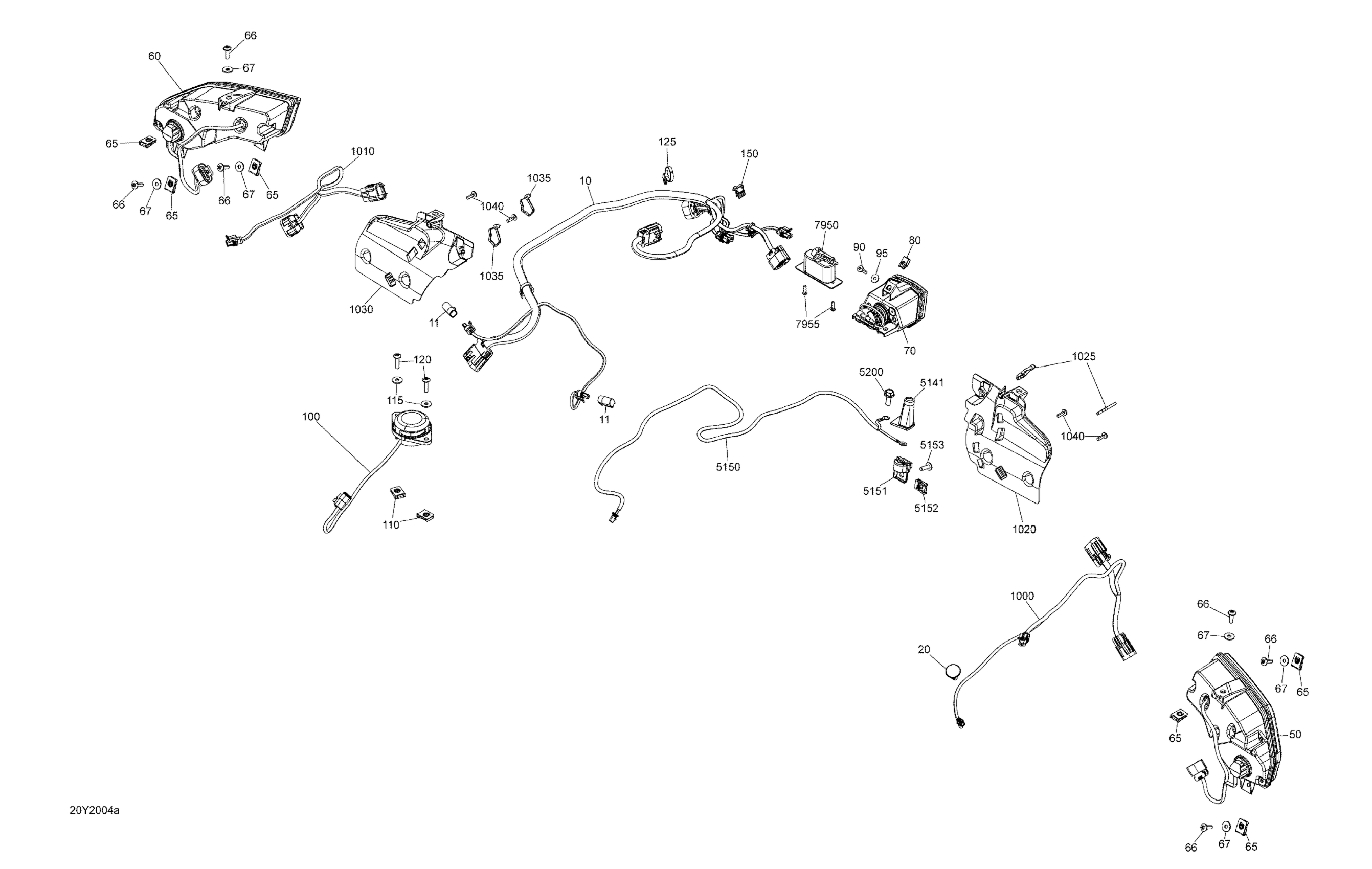

Can-Am F3 T SE6, 2021 Electrical System Cargo Diagram

#

Description
Price

10

Rear Box Wiring Harness

710007691

$77.00

11

Connector Plug | Includes 10h to 10h1

710004900

$16.00

20

Cap

708400046

$4.00

50

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

60

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

65

Panel Nut M6 X 1.0

250100208

$1.07

66

Torx Screw M6 X 20

250000722

$1.34

67

Flat washer M6

250200164

$0.83

70

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

80

Panel Nut M5 X 0.8

250000958

$3.48

90

Torx Truss Screw M5 X 20

250000715

$2.06

95

Stainless Steel Flat Washer M5

234052670

$0.83

100

Passenger Detection Switch

710008103

$72.28

110

Panel Nut M6 X 1.0

250100208

$1.07

115

Stainless Steel Flat Washer

234062670

$1.74

120

Torx Truss Screw M6 X 25

250000807

$1.74

125

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

150

Clip Tie-Rap

710002899

$8.45

1000

LH Cargo Harness

710006437

$1,030.00

1010

Cargo Harness RH

710006429

$28.00

1020

LH Connector Support

710004643

$13.00

1025

Tie-Rap 180 mm

414115200

$0.09

1030

RH Connector Support

710004644

$11.00

1035

Tie-Rap 180 mm

414115200

$0.09

1040

Torx Screw K50 X 16

250000720

$1.39

5141

Antenna Cap

708302051

$26.00

5150

Antenna Cable Ass'y

710006406

$87.00

5151

Antenna Support | Includes 0ah to 0ah1

708301797

Unavailable

5152

Panel Nut M6 X 1.0

250100208

$1.07

5153

Torx Screw M6 X 20

250000722

$1.34

5156

Antenna

710005434

Unavailable

5200

Hex. Flange Screw M8 X 20

207682044

$0.92

7950

License Light | Includes 0an to 0an1

710001451

$76.00

7955

Flange Torx Screw K40 X 16

250000287

$1.74
