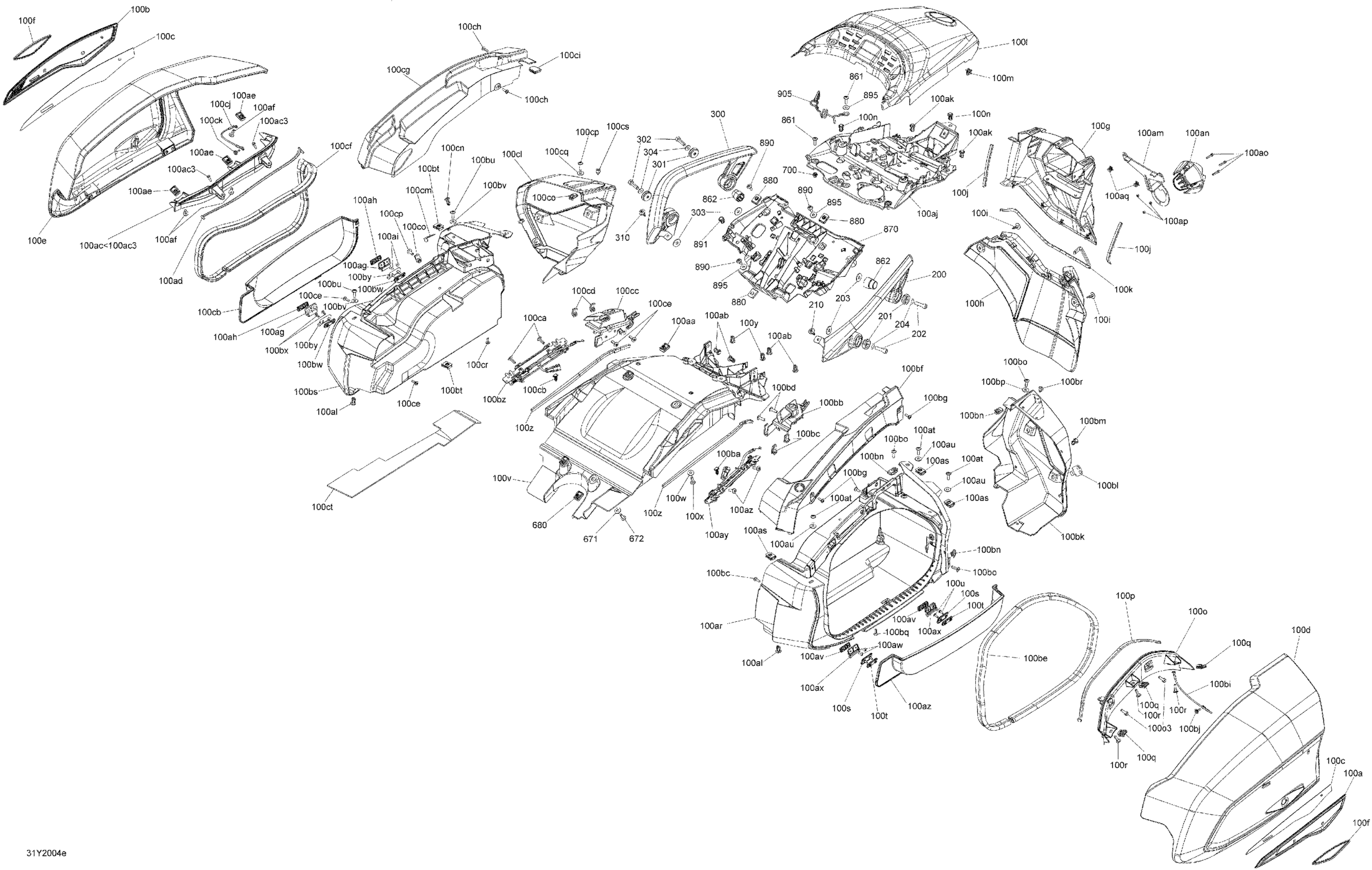

Can-Am F3 T SE6, 2020 Body And Accessories Cargo Diagram

#

Description
Price

100a

LH Trim Box

708301859

$4.49

100b

RH Trim Box

708301860

$4.49

100c

Trim Box Double Face Tape

704905469

$3.69

100d

Vegas White, LH Trunk Cover

708301917

$459.99

100d

Liquid Titan, LH Trunk Cover | Model B-429 Liquid Titan

708302828

$459.99

100e

Vegas White, RH Trunk Cover

708301922

$459.99

100e

Liquid Titan, RH Trunk Cover | Model B-429 Liquid Titan

708302829

$459.99

100f

Amber, Lateral Reflector

705002423

$15.49

100f

Red, Lateral Reflector

705003412

$15.49

100g

Rear Fender

708301584

$204.99

100h

Rear Fender Extention

708301747

$204.99

100i

Tuflock Phillips Plastic Screw

414745900

$1.69

100j

Neoprene Seal, 150 MM

293250385

$3.39

100k

Seal 1000Mm Long

219704373

$8.26

100l

Deep Black, Rear Fairing

708302912

$249.99

100m

Edge Clip

517302785

$0.88

100n

Tuflok Plastic Rivet

293150230

$1.47

100o<100o3

LH Inner Cover | Included 100s to 100s3

708301663

$83.99

100o3

Hex. Forming Screw M5 X 16

210251650

$1.15

100p

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100q

Panel Nut M6 X 1.0

250100208

$1.46

100r

Torx Screw M6 X 20

250000722

$1.68

100s

Female Hinge

708302044

$11.49

100t

Retaining Plate

708302046

$13.49

100u

Torx Truss Screw K40 X 12

250000577

$2.11

100v

Under Tail

708301609

$46.49

100w

Stainless Steel Flat Washer

234062670

$2.11

100x

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100y

Tuflok Plastic Rivet

293150230

$1.47

100z

Neoprene Seal, 150 MM

293250385

$3.39

100aa

Panel Nut M6 X 1.0

250100208

$1.46

100ab

Tuflok Plastic Rivet

293150230

$1.47

100ac<100ac3

RH Inner Cover | Included 100ah to 100ah3

708301664

$83.99

100ac3

Hex. Forming Screw M5 X 16

210251650

$1.15

100ad

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100ae

Panel Nut M6 X 1.0

250100208

$1.46

100af

Torx Screw M6 X 20

250000722

$1.68

100ag

Female Hinge

708302044

$11.49

100ah

Retaining Plate

708302046

$13.49

100ai

Torx Truss Screw K40 X 12

250000577

$2.11

100aj

Electronic Component Support

708302571

$23.99

100ak

Tuflok Plastic Rivet

293150230

$1.47

100al

Tuflok Plastic Rivet

293150230

$1.47

100am

Rear Fog Light Support

719000069

$61.99

100an

Rear Fog Light Guard

719000067

$13.22

100ao

Socket Head Screw M5 X 25

205052588

$1.90

100ap

Hex. Nut M5

232051600

$1.15

100aq

Edge Clip

517302785

$0.88

100ar

LH Cargo

708302404

$94.99

100as

Panel Nut M6 X 1.0

250100208

$1.46

100at

Torx Screw M6 X 20

250000722

$1.68

100au

Stainless Steel Flat Washer

234062670

$2.11

100av

Retaining Plate

708302046

$13.49

100aw

Torx Truss Screw K40 X 12

250000577

$2.11

100ax

Male Hinge

708302045

$11.49

100ay

LH Latch Assembly

708301794

$154.99

100az

Torx Screw M6 X 20

250000722

$1.68

100ba

Connector Holder

710002033

$3.39

100bb

LH Control

708301222

$43.99

100bc

Panel Nut M6 X 1.0

250100198

$2.11

100bd

Torx Screw M6 X 20

250000722

$1.68

100be

Molded Weather Strip

293250420

$30.99

100bf

LH Cargo Fairing

708302401

$78.99

100bg

Torx Screw K50 X 16

250000720

$1.69

100bi

Retainer Cable

708300385

$38.99

100bj

Screw M4 X 16

250000725

$3.49

100bk

LH Light Support

708302283

$49.99

100bl

Brace

708302284

$12.99

100bm

Tuflok Plastic Rivet

293150230

$1.47

100bn

Panel Nut M6 X 1.0

250100198

$2.11

100bo

Torx Screw M6 X 20

250000722

$1.68

100bp

Stainless Steel Flat Washer

234062670

$2.11

100bq

Torx Screw K50 X 16

250000720

$1.69

100br

Rubber Bumper

293830005

$8.09

100bs

RH Cargo

708302405

$94.99

100bt

Panel Nut M6 X 1.0

250100208

$1.46

100bu

Torx Screw M6 X 20

250000722

$1.68

100bv

Stainless Steel Flat Washer

234062670

$2.11

100bw

Retaining Plate

708302046

$13.49

100bx

Torx Truss Screw K40 X 12

250000577

$2.11

100by

Male Hinge

708302045

$11.49

100bz

RH Latch Assembly

708301795

$154.99

100ca

Torx Screw M6 X 20

250000722

$1.68

100cb

Connector Holder

710002033

$3.39

100cc

RH Control

708301697

$43.99

100cd

Panel Nut M6 X 1.0

250100198

$2.11

100ce

Torx Screw M6 X 20

250000722

$1.68

100cf

Molded Weather Strip

293250420

$30.99

100cg

RH Cargo Fairing

708302402

$78.99

100ch

Torx Screw K50 X 16

250000720

$1.69

100ci

Antena Cap

708301805

$3.89

100cj

Retainer Cable

708300385

$38.99

100ck

Screw M4 X 16

250000725

$3.49

100cl

RH Light Support

708302285

$49.99

100cm

Brace

708302284

$12.99

100cn

Tuflok Plastic Rivet

293150230

$1.47

100co

Panel Nut M6 X 1.0

250100198

$2.11

100cp

Torx Screw M6 X 20

250000722

$1.68

100cq

Stainless Steel Flat Washer

234062670

$2.11

100cr

Torx Screw K50 X 16

250000720

$1.69

100cs

Rubber Bumper

293830005

$8.09

100ct

Heat Shield

705009908

$47.99

200

LH Rear Holding Handle

708003456

$105.99

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300

RH Rear Holding Handle

708003457

$105.99

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

861

Torx Screw M6 X 20

250000722

$1.68

862

Anchorage Socket

708303508

$1.29

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Truss M8 X 16

250000881

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

895

Stainless Steel Flat Washer

234062670

$2.11

905

Lanyard | Included 905 to 905d

708002532

$22.99
