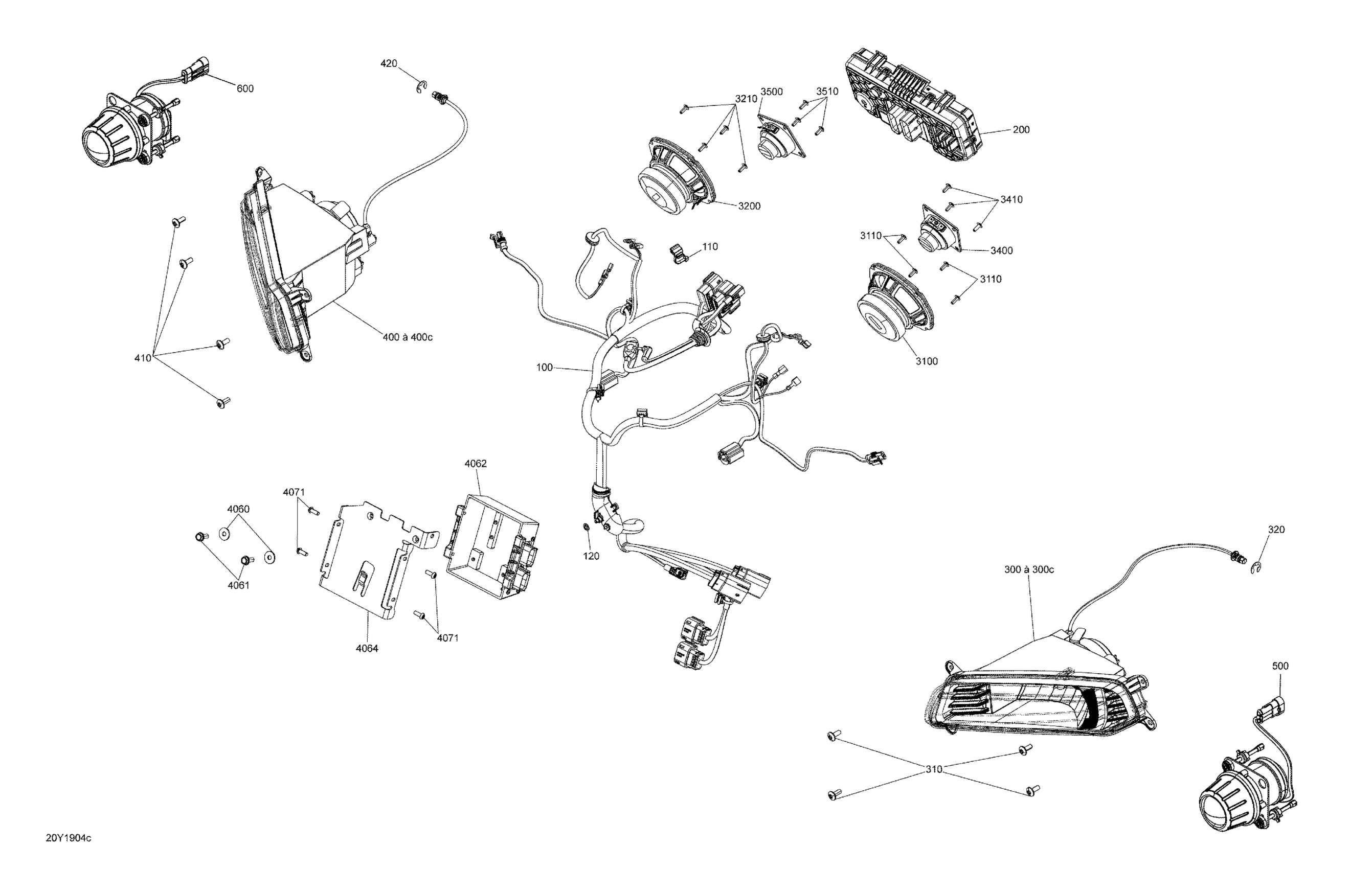

Can-Am 004 - F3 T SE6, 2019 10- Electrical System Console Diagram

#

Description
Price

100

Harness Consol

710006485

$294.99

100

Harness Consol

710006486

$294.99

110

Clip Tie-Rap

293750063

$8.75

120

Push Nut

250100034

$1.29

200

Multifunction Gauge_Full Size Color

710006937

$1,209.99

300>300c

LH Headlamp

710004701

$239.99

300a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

300b

Rubber Cap Protector

219800280

$19.49

300c

Spring

219800281

$3.49

310

Torx Truss Screw M6 X 16

250000721

$1.69

320

E-Circlip

293370013

$0.65

400>400c

RH Headlight | Includes 0d to 0d3

710006998

$239.99

400a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

400b

Rubber Cap Protector

219800280

$19.49

400c

Spring

219800281

$3.49

410

Torx Truss Screw M6 X 16

250000721

$1.69

420

E-Circlip

293370013

$0.65

500

LH Low Beam | Europe, Brazil

710004150

$439.99

500

LH Low Beam | Australia, Japan

710004152

$449.99

600

RH Low Beam | Europe, Brazil

710004151

$449.99

600

RH Low Beam | Australia, Japan

710004153

$449.99

3100

4.5" Speaker

710005433

$35.99

3110

Torx Truss Screw K40 X 12

250000577

$2.11

3200

4.5" Speaker

710005433

$35.99

3210

Torx Truss Screw K40 X 12

250000577

$2.11

3400

2.5" Speaker

710005432

$22.49

3410

Torx Truss Screw K40 X 12

250000577

$2.11

3500

2.5" Speaker

710005432

$22.49

3510

Torx Truss Screw K40 X 12

250000577

$2.11

4060

Stainless Steel Flat Washer

234062670

$2.11

4061

Hex. Flange Screw M6 X 16

210261650

$1.67

4062

Amplifier 6 x 20 Watts

710006566

$455.49

4064

Amplifier Holder

710005814

$17.49

4071

Screw-Torx Button Head M5 X 14

235551454

$7.51
