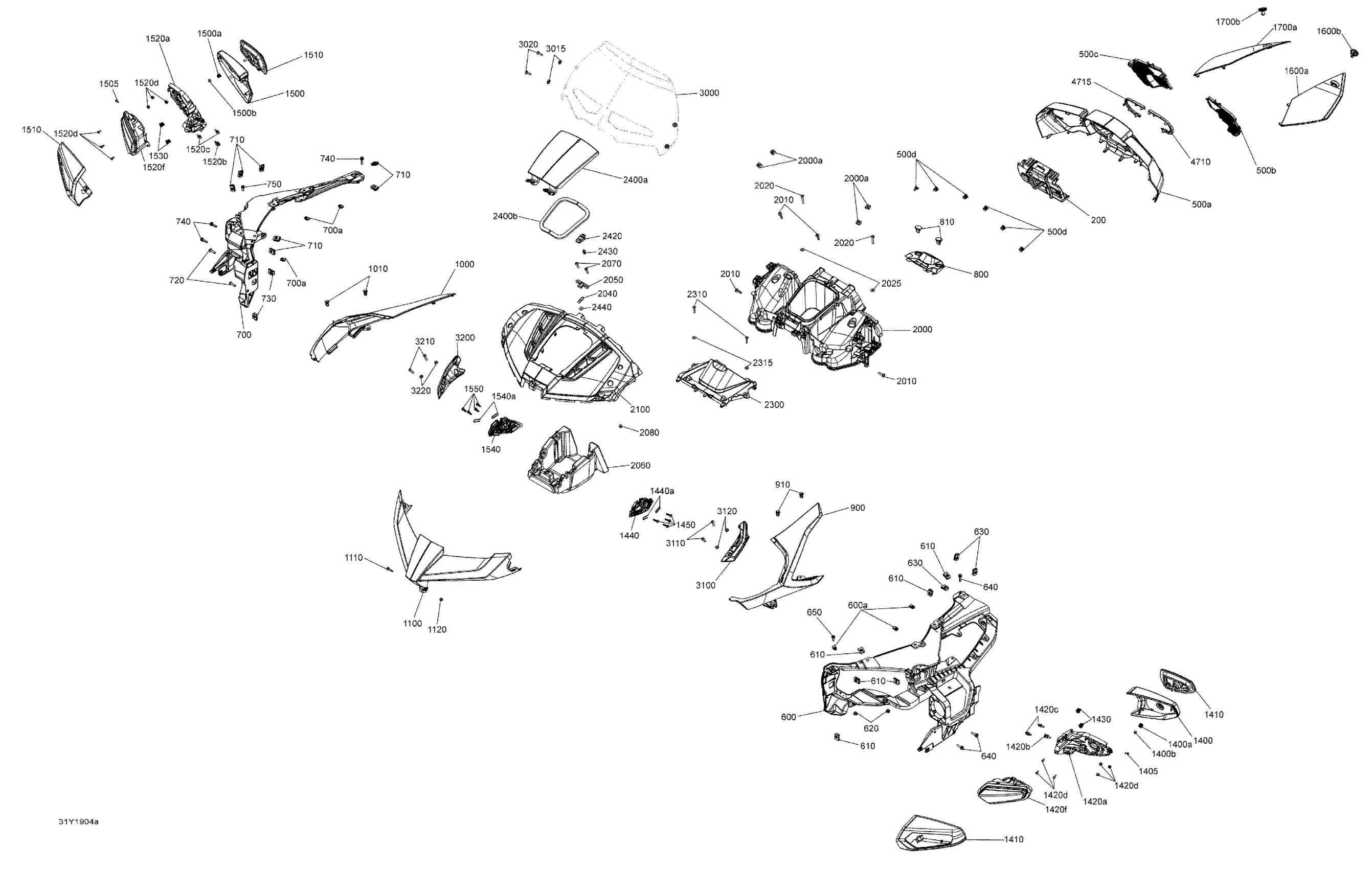

Can-Am F3 T SE6, 2019 Body And Accessories Console Diagram

#

Description
Price

200

Speedometer Support

705012178

$10.99

500a

Dashboard

708400230

$63.99

500b

LH Grille

708400231

$10.99

500c

RH Grille

708400232

$10.99

500d

Edge Clip

517302785

$0.88

600>600a

LH Console Support | Included 100 to 100b

708400170

$99.99

600a

Panel Nut M5 X 0.8

250000958

$4.23

610

Panel Nut M6 X 1.0

250100208

$1.46

620

Hex. Flange Elastic Nut M6

233261494

$1.58

630

Panel Nut M6 X 1.0

250100208

$1.46

640

Hex. Flange Screw M6 X 25

250000793

$2.11

650

Hex. Flange Screw M6 X 16

210261650

$1.67

700>700a

RH Console Support | Included 300 to 300b

708400171

$104.99

700a

Panel Nut M5 X 0.8

250000958

$4.23

710

Panel Nut M6 X 1.0

250100208

$1.46

720

Torx Screw M6 X 25

250000758

$2.11

730

Panel Nut M6 X 1.0

250100208

$1.46

740

Hex. Flange Screw M6 X 25

250000793

$2.11

750

Hex. Flange Screw M6 X 16

210261650

$1.67

800

Switch Bezel

708400205

$14.67

810

Cap

708400046

$3.89

810

Cap

708400046

$3.89

900

Deep Black, LH Consol Fairing

708400340

$219.99

910

Tuflok Plastic Rivet

293150230

$1.47

1000

Deep Black, RH Consol Fairing

708400338

$219.99

1010

Tuflok Plastic Rivet

293150230

$1.47

1100

Deep Black, Nose Fairing

708400337

$229.99

1110

Torx Screw M5 X 25

250000762

$2.11

1120

Elastic Flange Nut M5

233251494

$2.11

1400>1400b

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$144.99

1400a

Spring

705010625

$10.99

1400b

Hex. Elastic Stop Nut M6

232561600

$1.15

1405

Torx Truss Screw K40 X 12

250000577

$2.11

1410

Deep Black, LH Rear View Mirror Trim

708400465

$57.99

1410

Deep Black, Mirror Shell LH | Australia

708400346

$114.99

1420a

LH Mirror Support

708400224

$33.99

1420b

Flat Head Stud M5

705006733

$20.99

1420c

Stud Ball M5

708400538

$18.49

1420d

Torx Truss Screw K40 X 12

250000577

$2.11

1420e

Edge Clip

517302785

$0.88

1420f

LH Front Flasher Unit

710006197

$164.49

1420a

LH Mirror Support

708400224

$33.99

1420b

Flat Head Stud M5

705006733

$20.99

1420c

Stud Ball M5

708400538

$18.49

1420d

Edge Clip

517302785

$0.88

1430

Edge Clip

517302785

$0.88

1440>1440a

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$27.99

1440a

Spring

705006661

$3.39

1450

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1500>1500b

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$144.99

1500a

Spring

705010625

$10.99

1500b

Hex. Elastic Stop Nut M6

232561600

$1.15

1505

Torx Truss Screw K40 X 12

250000577

$2.11

1510

Deep Black, RH Rear View Mirror Trim

708400466

$57.99

1510

Deep Black, RH Rear View Mirror Trim

708400506

$114.99

1520a

RH Mirror Support

708400225

$33.99

1520b

Flat Head Stud M5

705006733

$20.99

1520c

Stud Ball M5

708400538

$18.49

1520d

Torx Truss Screw K40 X 12

250000577

$2.11

1520e

Edge Clip

517302785

$0.88

1520f

RH Front Flasher Unit

710006198

$164.49

1520a

RH Mirror Support

708400225

$33.99

1520b

Flat Head Stud M5

705006733

$20.99

1520c

Stud Ball M5

708400538

$18.49

1520d

Edge Clip

517302785

$0.88

1530

Edge Clip

517302785

$0.88

1540>1540a

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$27.99

1540a

Spring

705006661

$3.39

1550

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1600a

Black Polycarbonate, LH Acces Panel

708400238

$22.99

1600b

Cover Latch Quarter Turn

708400065

$2.79

1700a

Black Polycarbonate, RH Acces Panel

708400239

$22.99

1700b

Cover Latch Quarter Turn

708400065

$2.79

2000>2000a

Upper Pod | Included 550 to 550f

708400219

$154.99

2000a

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

2010

Torx Truss Screw M6 X 25

250000807

$2.11

2020

Torx Screw Nylon

250000732

$2.11

2025

Stainless Steel Flat Washer M5

234052670

$1.01

2040

Spring

705006661

$3.39

2050

Receptacle

708400215

$7.87

2060

Pod Foam

708400103

$16.49

2070

Torx Screw M5 X 25

250000762

$2.11

2080

Elastic Flange Nut M5

233251494

$2.11

2100

Upper Fairing

708400221

$36.99

2300

Column Fairing

708400108

$17.99

2310

Torx Screw M5 X 25

250000762

$2.11

2315

Stainless Steel Flat Washer M5

234052670

$1.01

2400a

Glove Box Door

708400217

$169.99

2400b

Seal

293250406

$28.99

2420

Lever

708400213

$42.99

2430

Stud M5

705011056

$19.49

2440

Stainless Steel Flat Washer M5

234052670

$1.01

3100

Carbon Black, LH Windshield Base

708400127

$129.99

3110

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

3120

Stainless Flat Washer M6

234061600

$0.33

3200

Carbon Black, RH Windshield Base

708400128

$129.99

3210

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

3220

Stainless Flat Washer M6

234061600

$0.33

4710

Deep Black, LH Trim Gauge

705012349

$5.59

4715

Deep Black, RH Trim Gauge

705012351

$5.59
