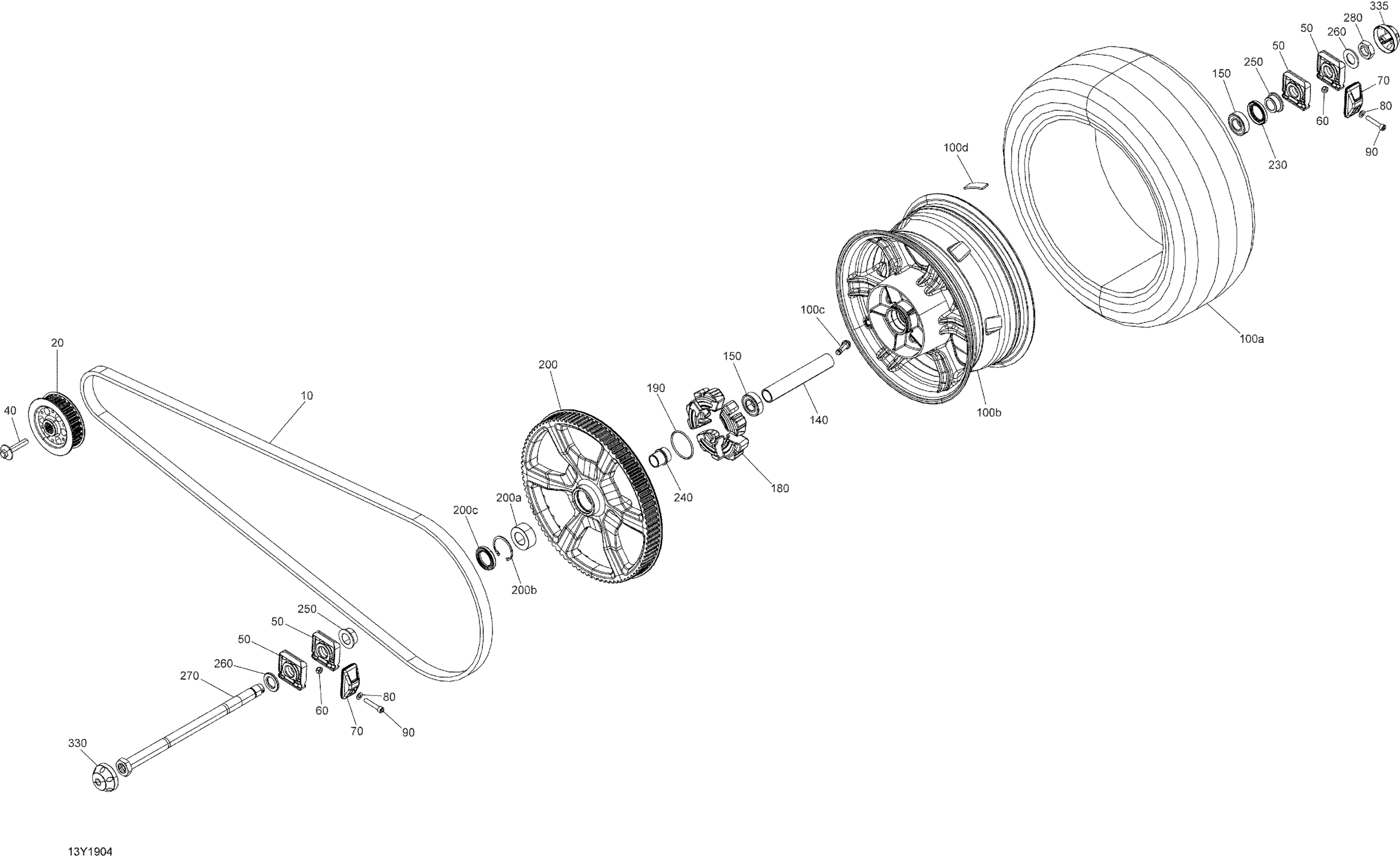

Can-Am F3 T SE6, 2019 Drive System, Rear Diagram

#

Description
Price

10

Drive Belt

705501304

$409.99

20

Sprocket 28 Teeth

705503239

$159.99

40

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

50

Sliding Block

705502448

$14.82

60

Hex. Elastic Nut M8

250100141

$2.00

70

Adjustment Support

705502450

$15.89

80

Flat Washer 8 mm

234081410

$0.83

90

Socket Screw DIN.912

250000713

$2.85

100a

Rear Tire 225/50R15

705503310

$201.49

100b

Black, Rear Rim

705501992

$391.99

100c

Rim Valve With Cap

705400193

$8.69

100d

Self Adhesive Weight, 5G 20mm

705502106

$4.69

140

Spacer Tube

705502093

$17.59

150

Ball Bearing

293350115

$12.11

180

Damper

705500736

$24.49

190

O-Ring

293300124

$3.38

200

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$499.99

200a

Double Row Bearing

293350065

$33.99

200b

Circlip

293370053

$9.95

200c

Seal

293200094

$10.33

230

Seal

293200094

$10.33

240

Spacer

705500853

$23.49

250

Spacer

705501602

$19.49

260

Flat Washer

250200163

$3.49

270

Rear Wheel Axle

705501691

$99.49

280

Hex. Jam Nut M24

250100170

$12.12

330

LH Cap

705501081

$9.27

335

RH Cap

705501022

$9.19
