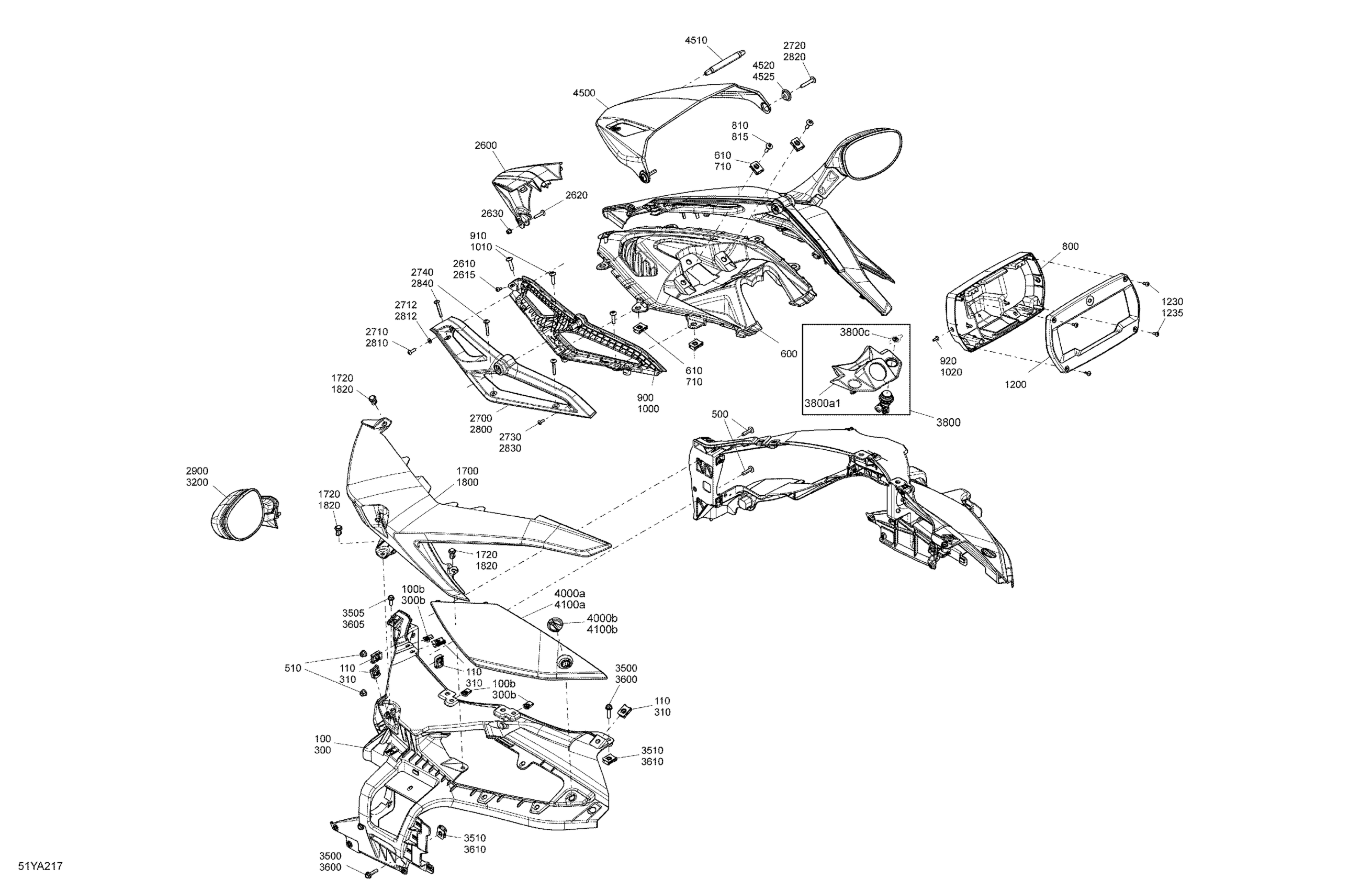

Can-Am F3 S - Special Series - Gravity Grey, 2021 Body - Console - China Diagram

#

Description
Price

100

LH Console Support | Included 100 to 100b

708400170

$99.99

100b

Panel Nut M5 X 0.8

250000958

$4.23

110

Panel Nut M6 X 1.0

250100208

$1.46

300

RH Console Support | Included 300 to 300b

708400171

$104.99

300b

Panel Nut M5 X 0.8

250000958

$4.23

310

Panel Nut M6 X 1.0

250100208

$1.46

500

Torx Screw M6 X 25

250000758

$2.11

510

Hex. Flange Elastic Nut M6

233261494

$1.58

600

Upper Fairing

708400208

$36.99

610

Panel Nut M6 X 1.0

250100208

$1.46

710

Panel Nut M6 X 1.0

250100208

$1.46

800

Rear Gauge Trim

709402490

$22.49

810

Torx Screw M6 X 20

250000722

$1.68

815

Torx Screw M6 X 20

250000722

$1.68

900

LH Slider Support

708400053

$34.99

910

Torx Truss Screw M6 X 25

250000807

$2.11

920

Torx Truss PT K40 x 12

250001131

$2.11

1000

RH Slider Support

708400054

$37.99

1010

Torx Truss Screw M6 X 25

250000807

$2.11

1020

Torx Truss PT K40 x 12

250001131

$2.11

1200

Front Gauge Trim

709402487

$22.49

1230

Torx Truss PT K40 x 12

250001131

$2.11

1235

Torx Truss PT K40 x 12

250001131

$2.11

1700

Deep Black, LH Consol Fairing

708400341

$229.99

1720

Tuflok Plastic Rivet

293150230

$1.47

1800

Deep Black, RH Consol Fairing

708400339

$229.99

1820

Tuflok Plastic Rivet

293150230

$1.47

2600

Black Deep Nose Fairing

708400011

$37.99

2610

Torx Truss PT K40 x 12

250001131

$2.11

2615

Torx Truss PT K40 x 12

250001131

$2.11

2620

Torx Screw M5 X 25

250000762

$2.11

2630

Elastic Flange Nut M5

233251494

$2.11

2700

LH Upper Console Header

708400016

$27.99

2710

Torx Truss Screw M5 X 16, T25

250000578

$2.11

2712

Flat Washer M5

234051670

$2.11

2720

Black, Torx Screw M6 X 35

250000646

$0.98

2730

Torx Truss PT K40 x 12

250001131

$2.11

2740

Torx Screw Nylon

250000732

$2.11

2800

RH Upper Console Header

708400017

$27.99

2810

Torx Truss Screw M5 X 16, T25

250000578

$2.11

2812

Flat Washer M5

234051670

$2.11

2820

Black, Torx Screw M6 X 35

250000646

$0.98

2830

Torx Truss PT K40 x 12

250001131

$2.11

2840

Torx Screw Nylon

250000732

$2.11

2900

LH Housing Rear View Mirror Ass'y

705015049

$274.99

3200

RH Housing Rear View Mirror Ass'y

705015050

$274.99

3500

Hex. Flange Screw M6 X 25

250000793

$2.11

3505

Hex. Flange Screw M6 X 16

210261650

$1.67

3510

Panel Nut M6 X 1.0

250100208

$1.46

3600

Hex. Flange Screw M6 X 25

250000793

$2.11

3605

Hex. Flange Screw M6 X 16

210261650

$1.67

3610

Panel Nut M6 X 1.0

250100208

$1.46

3800

Switch Trim Ass'y | Included 3800 to 3800c

708400545

$104.99

3800a1

Switch Bezel

708400205

$14.67

3800c

Rear Fog Light Decal

704908774

$47.99

4000a

Black Polycarbonate, LH Acces Panel

708400238

$22.99

4000b

Cover Latch Quarter Turn

708400065

$2.79

4100a

Black Polycarbonate, RH Acces Panel

708400239

$22.99

4100b

Cover Latch Quarter Turn

708400065

$2.79

4500

Gauge Cover | Included 4500 to 4525

219400531

$201.99

4510

Gauge Cover | Included 4500 to 4525

219400531

$201.99

4520

Gauge Cover | Included 4500 to 4525

219400531

$201.99

4525

Gauge Cover | Included 4500 to 4525

219400531

$201.99
