Description

Price

10

Front Bottom Pan

502008638

$184.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Bottom Pan Central Foam

502007545

$9.59

70

LH Bottom Pan Central Foam

502007546

$13.99

80

RH Lower Bottom Pan Foam

502007800

$20.99

90

LH Lower Bottom Pan Foam

502007799

$7.89

400

RH Bottom Pan

502007737

$134.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

470

Heat Shield

502007895

$19.99

475

Push Nut

508000853

$2.09

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$0.55

600

LH Bottom Pan Ass'y | Includes 600 to 600c

502007739

$134.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Torx Truss M5 X 20

250000586

$4.44

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Front Bottom Pan Foam

502008334

$11.99

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

710

Stopper

502008149

$1.99

720

Reflective Sheet

502008156

$4.79

800

Front Bumper | Includes 800 to 800b

502007869

$164.49

800a

Liquid Titan, Front Bumper Ass'y | Includes 800 to 800c

502008377

$121.99

800a2

Insert M5 X 0.8

293450268

$2.09

800a3

Insert

293450398

$4.99

800b

Bumper Trim

502007880

$29.99

800c

Insert

293450398

$4.99

806

RH Bumper Fastener

502008192

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

850

RH Bumper Reinforcement

502007762

$13.49

855

Hex. Flange Screw M6 X 16

207661644

$0.74

860

LH Bumper Reinforcement

502007763

$13.49

865

Hex. Flange Screw M6 X 16

207661644

$0.74

910

Torx Screw M6 X 25

250000758

$2.11

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1600

Deep Black, RH Bottom Pan Panel

502008023

$53.99

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1620

Washer

517124300

$0.19

1650

Stopper

502007757

$4.69

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1660

Washer

517124300

$0.19

1800

Deep Black, LH Bottom Pan Panel

502007717

$53.99

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47

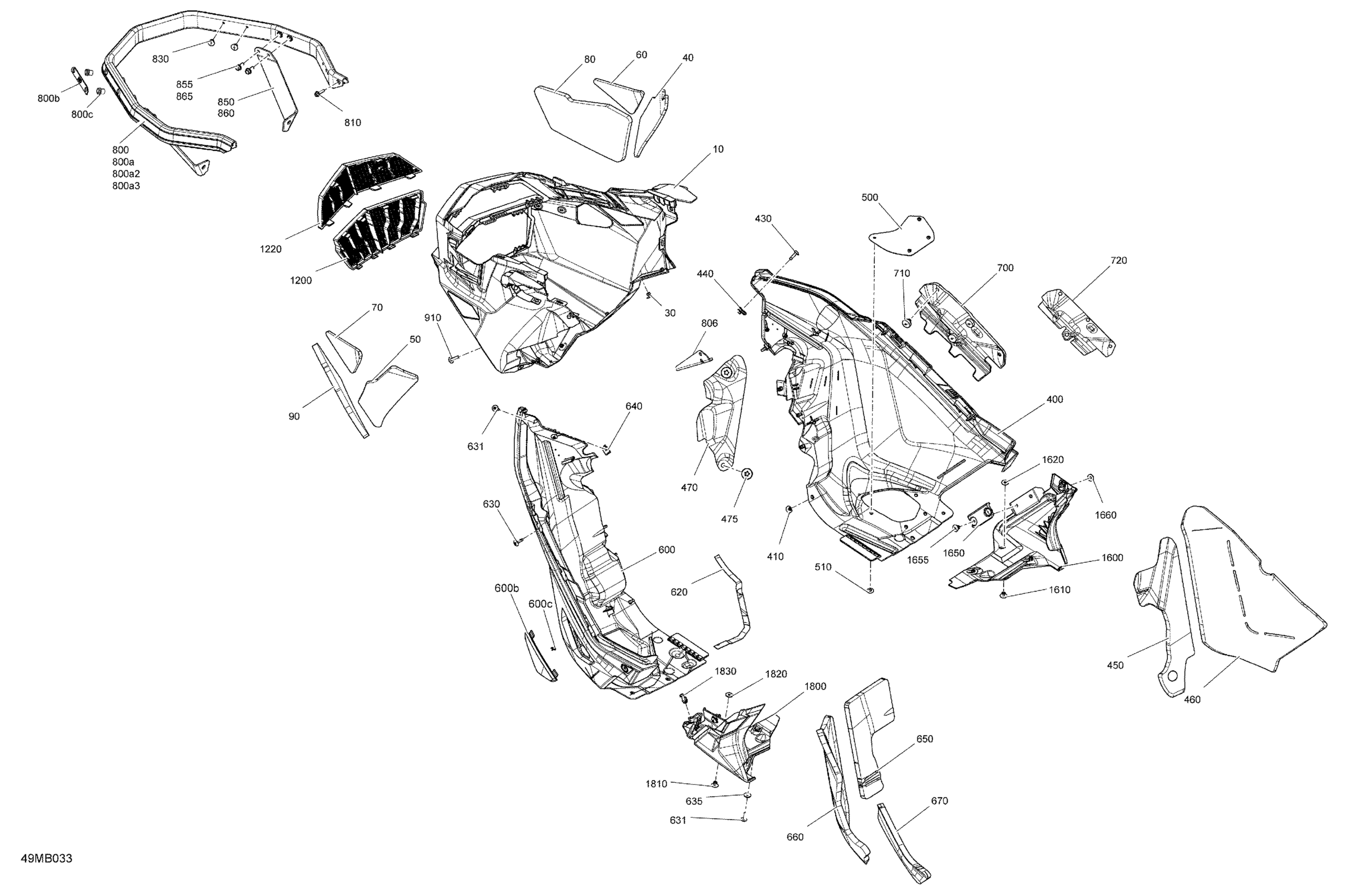

Ski-Doo 004 - EXPEDITION SE 900 ACE TURBO, Europe, 2022 07- Body - Bottom Pan Diagram

Front Bottom Pan

Pop Rivet 3/16" | DS 650 X

RH Upper Bottom Pan Foam

LH Upper Bottom Pan Foam

RH Bottom Pan Central Foam

LH Bottom Pan Central Foam

RH Lower Bottom Pan Foam

LH Lower Bottom Pan Foam

RH Bottom Pan

Pop Rivet 3/16" | DS 650 X

Torx Truss M5 X 20

Panel Nut M5 X 0.8

RH Front Bottom Pan Foam

RH Rear Bottom Pan Foam

Heat Shield

Push Nut

Plate

Pop Rivet 3/16"

LH Bottom Pan Ass'y | Includes 600 to 600c

Bottom Pan Door

Hairpin Cotter

Gasket, Neoprene 2000Mm Long

Torx Truss M5 X 20

Torx Truss M5 X 20

Washer M5

Panel Nut M5 X 0.8

LH Bottom Pan Upper Foam

LH Front Bottom Pan Foam

LH Rear Bottom Pan Foam

Heat Shield

Stopper

Reflective Sheet

Front Bumper | Includes 800 to 800b

Liquid Titan, Front Bumper Ass'y | Includes 800 to 800c

Insert M5 X 0.8

Insert

Bumper Trim

Insert

RH Bumper Fastener

Hex. Flange Screw M5 X 20, Scotch Grip

Pop Rivet 3/16" | DS 650 X

RH Bumper Reinforcement

Hex. Flange Screw M6 X 16

LH Bumper Reinforcement

Hex. Flange Screw M6 X 16

Torx Screw M6 X 25

Lower Prefilter Grille

Upper Prefilter Grille

Deep Black, RH Bottom Pan Panel

Pop Rivet 3/16" | DS 650 X

Washer

Stopper

Pop Rivet 3/16" | DS 650 X

Washer

Deep Black, LH Bottom Pan Panel

Pop Rivet 3/16" | DS 650 X

Washer

Tuflok Plastic Rivet
