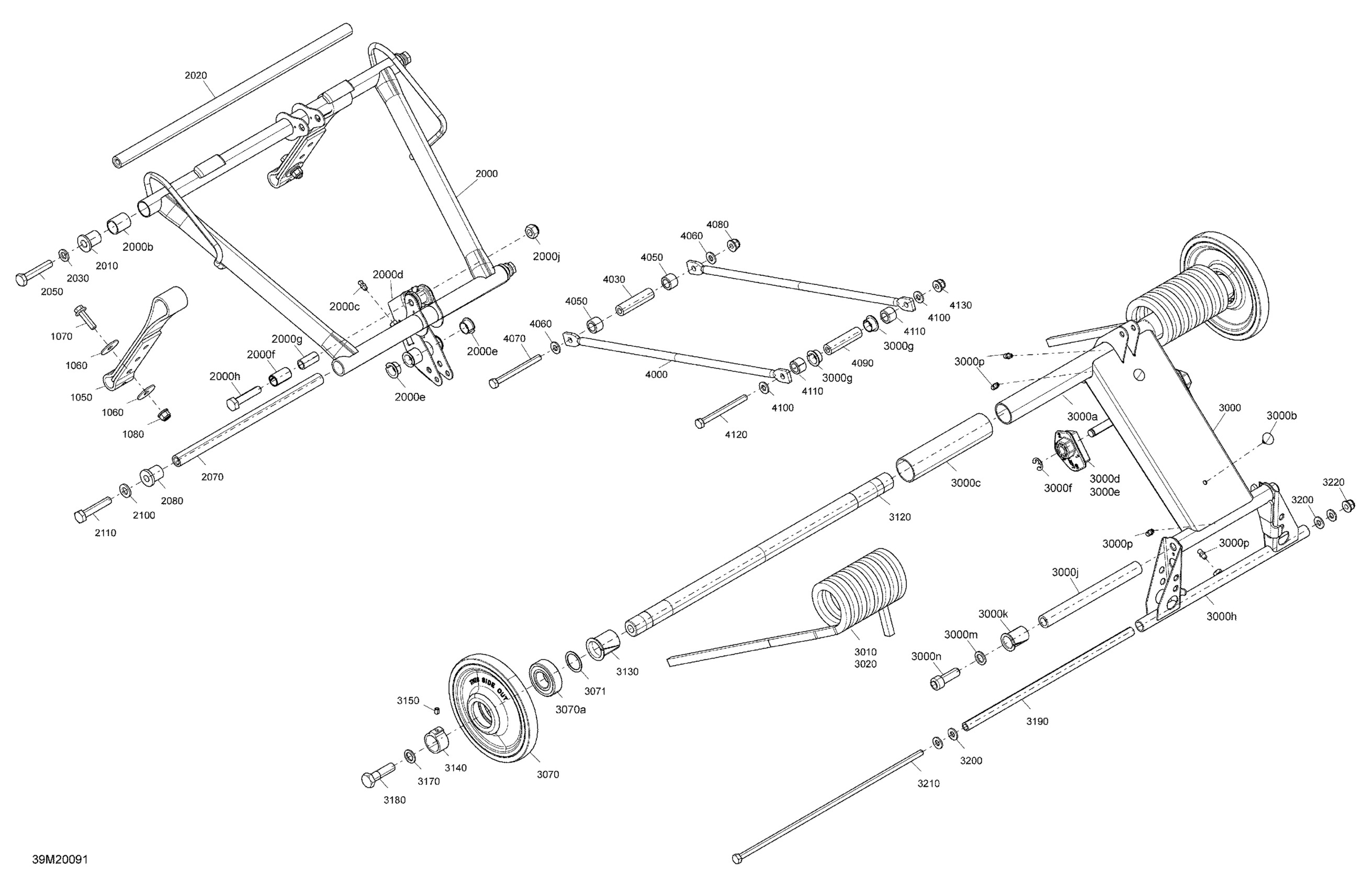

Ski-Doo EXPEDITION LE/SE 600R E-TEC - 2020 Suspension, Rear - System - Upper Section - LE-SE Diagram

#

Description
Price

1050

Stopper Strap

503192360

$19.37

1060

Flat Washer 8 mm

250200128

$2.00

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

1080

Elastic Flange Nut M8

233281466

$0.96

2000

Front Arm Ass'y | Includes 2000 to 2000k

503195490

$248.48

2000b

Extended Bushing

503191556

$5.54

2000c

Grease Fitting

408200700

$3.21

2000d

Rocker

503192211

$76.09

2000e

Swivel Bushing

503191555

$5.54

2000f

Bushing

503193037

$14.90

2000g

Bushing | Includes 240d to 240d1

503189282

$4.06

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.63

2010

Bushing

503191262

$13.19

2020

Upper Shaft

503195664

$76.09

2030

Washer

503192496

$0.73

2050

Hex. Screw S.Grip M10 X 55

250000605

$7.09

2070

Lower Shaft

503191390

$26.84

2080

Bushing

503189324

$10.84

2100

Flat Washer

250200143

$3.01

2110

Hex. Screw S.Grip M10 X 55

250000605

$7.09

3000

Rear Arm Ass'y | Includes 3000 to 3000q

503195402

$248.48

3000a

Rear Arm

503195403

Unavailable

3000b

Black, Dart

414644300

$0.90

3000c

Plastic Bushing

503191740

$5.54

3000d

LH Cam Adjuster

503191565

$13.54

3000e

RH Cam Adjuster

503191566

$13.54

3000f

E-Circlip

293370013

$0.60

3000g

Swivel Bushing

503191555

$5.54

3000h

Pivot Arm | Includes 3000j to 3000j3

503195154

$93.25

3000j

Lower Shaft

503192330

$44.75

3000k

Cushion

503191640

$5.54

3000m

Washer

503192491

$4.25

3000n

Socket Head Screw M12 X 35

205523554

$4.15

3000p

Grease Fitting

408200700

$3.21

3010

Black LH Square Spring

503192378

$105.94

3020

Black RH Square Spring

503192377

$105.94

3070

Wheel 165 | Includes 3070 to 3070a

503190803

$48.48

3070a

Ball Bearing

293350115

$10.82

3071

Washer

503190328

$11.00

3120

Upper Shaft

503195618

$76.09

3130

Cushion

503191451

$10.84

3140

Retaining Ring

503194366

$36.54

3150

Socket Set Screw M6 X 8

206260844

$1.43

3170

Washer

503192491

$4.25

3180

Screw Hex Cap Din 931

207024554

$2.63

3190

Axle Pivot

503191396

$76.09

3200

Washer

503192494

$3.01

3210

Bolt 369MM

503195156

$24.60

3220

Elastic Flange Nut M8

233281466

$0.96

4000

Link Rod

503191765

$17.13

4030

Axle Bar (Long)

503190643

$14.90

4030

Bar Axle (Short)

503190113

$36.54

4050

Spacer

503190114

$14.90

4060

Washer

503192494

$3.01

4070

Screw M8 X 90

503193372

$4.15

4070

Hex. Screw M8 X 130

230083044

$7.01

4080

Elastic Flange Nut M8

233281466

$0.96

4090

Axle Bar (Long)

503190643

$14.90

4090

Bar Axle (Short)

503190113

$36.54

4100

Washer

503192494

$3.01

4110

Spacer

503190114

$14.90

4120

Screw M8 X 90

503193372

$4.15

4120

Hex. Screw M8 X 130

230083044

$7.01

4130

Elastic Flange Nut M8

233281466

$0.96
