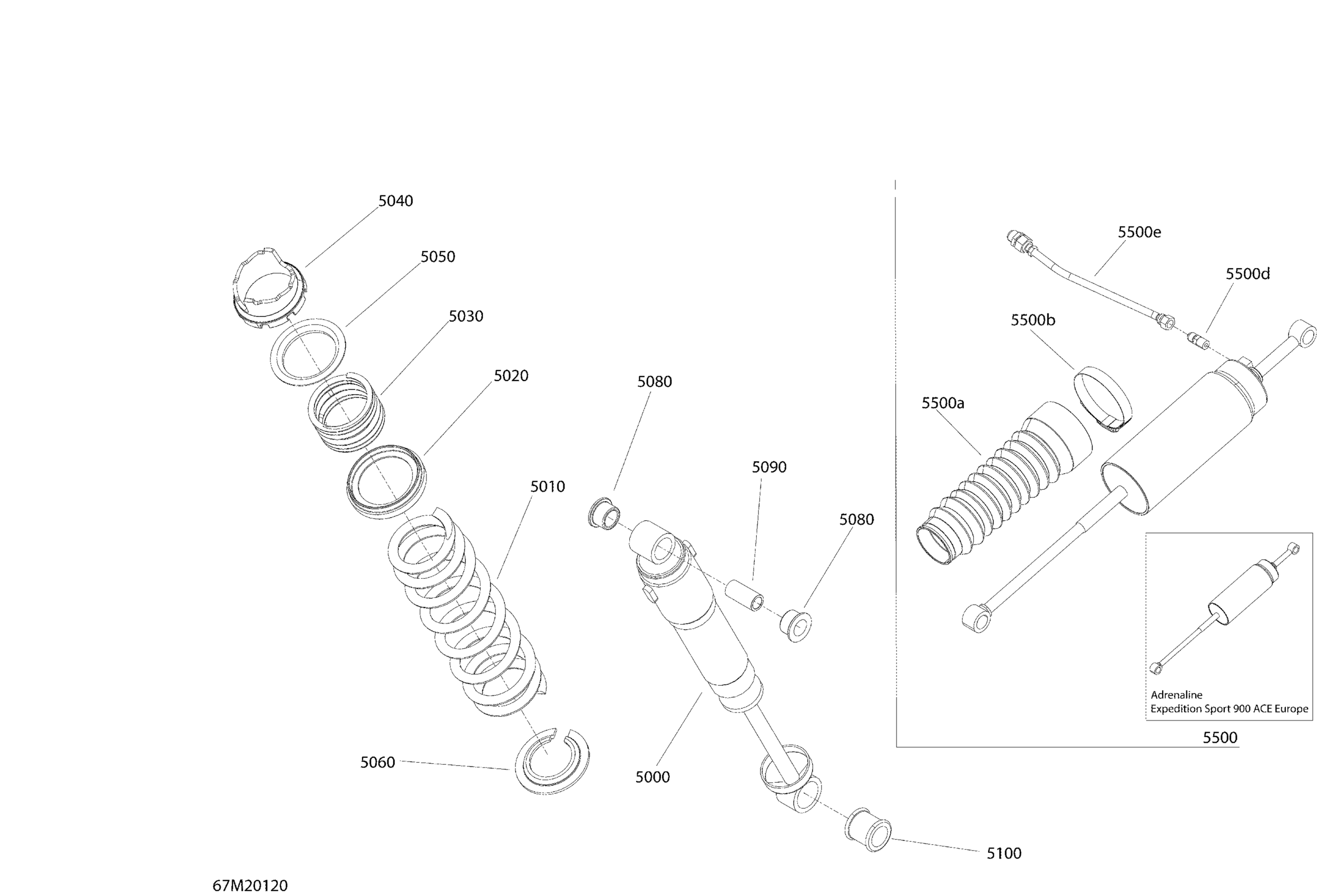

Ski-Doo EXPEDITION LE/SE 600R E-TEC - 2020 Suspension, Rear - Shocks - SE Diagram

Description

Price

5000

Center Shock

503192266

$164.49

5000

Center Shock

503192991

$248.99

5010

Deep Black, Spring (189mm) Long

503193160

$90.99

5020

Spring Spacer

503191281

$8.89

5030

Black, Spring (51mm) Short

503193837

$67.99

5040

Adjustment Cam

505073625

$12.99

5050

Spring Guide

503191872

$2.29

5060

Spring Stopper

706200881

$12.99

5070

Protector

503193663

$37.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5500

Rear Shock Ass'y | Includes 5500 to 5500k

503195082

$716.99

5500a

Protection Boot

570278300

$59.99

5500b

Tridon Clamp

293650064

$8.29

5500d

Male Pneumatic Connector

503191939

$44.49

5500e

Pneumatic Hose Ass'y

503195148

$129.99
