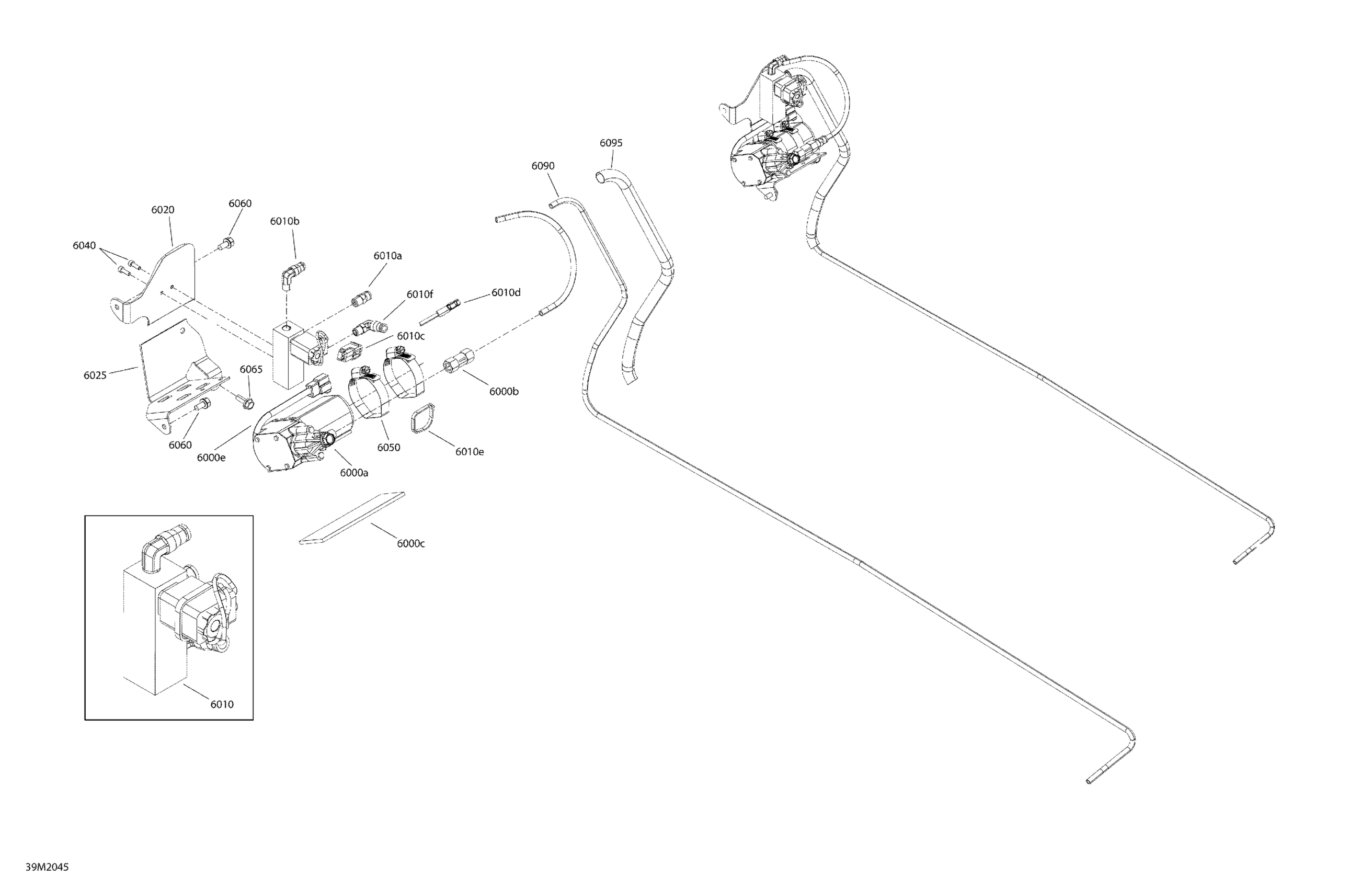

Ski-Doo 004 - EXPEDITION LE/SE 600R E-TEC - North America, 2020 08- Suspension, Rear - Air Compressor Diagram

Description

Price

6000

Not Available As Spare Part - Friction Washer

Unavailable

6000a

Compressor

503194941

$469.99

6000b

Female Connector

706201253

$28.99

6000c

Rubber Damper

503191940

$10.49

6000e

Tubing 6 Mm 3000Mm Long

219704425

$13.75

6010

Air Manifold | Included 6010 to 6010f

503194894

$1.00

6010a

Check Valve

706000860

$42.99

6010b

Connector

706000869

$34.99

6010c

Male Terminal

515175232

$1.58

6010d

Male Terminal Housing, 2 Circuits

515175654

$9.12

6010e

Tie-Rap 180 mm

414115200

$0.11

6010f

Elbow 90°

706000872

$28.99

6020

Support

503194920

$42.99

6025

Support

503194921

$42.99

6040

Socket Head Screw M4 X 10 | 400HO (Europe)

205041044

$1.15

6050

Norma Gear Clamp

293650090

$4.54

6060

Hex. Flange Screw M6 X 12

210261250

$1.90

6065

Hex. Flange Screw M6 X 16

207661654

$2.11

6090

Hose 4.32Mm 3000Mm Long

219704415

$55.99

6095

Protector Tube | Not shown

503195447

$13.49

6110

Hose

706000891

$9.69

6120

Protector Tube | Not shown

503195447

$13.49

6170

Suspension Bracket

503195440

$19.99
