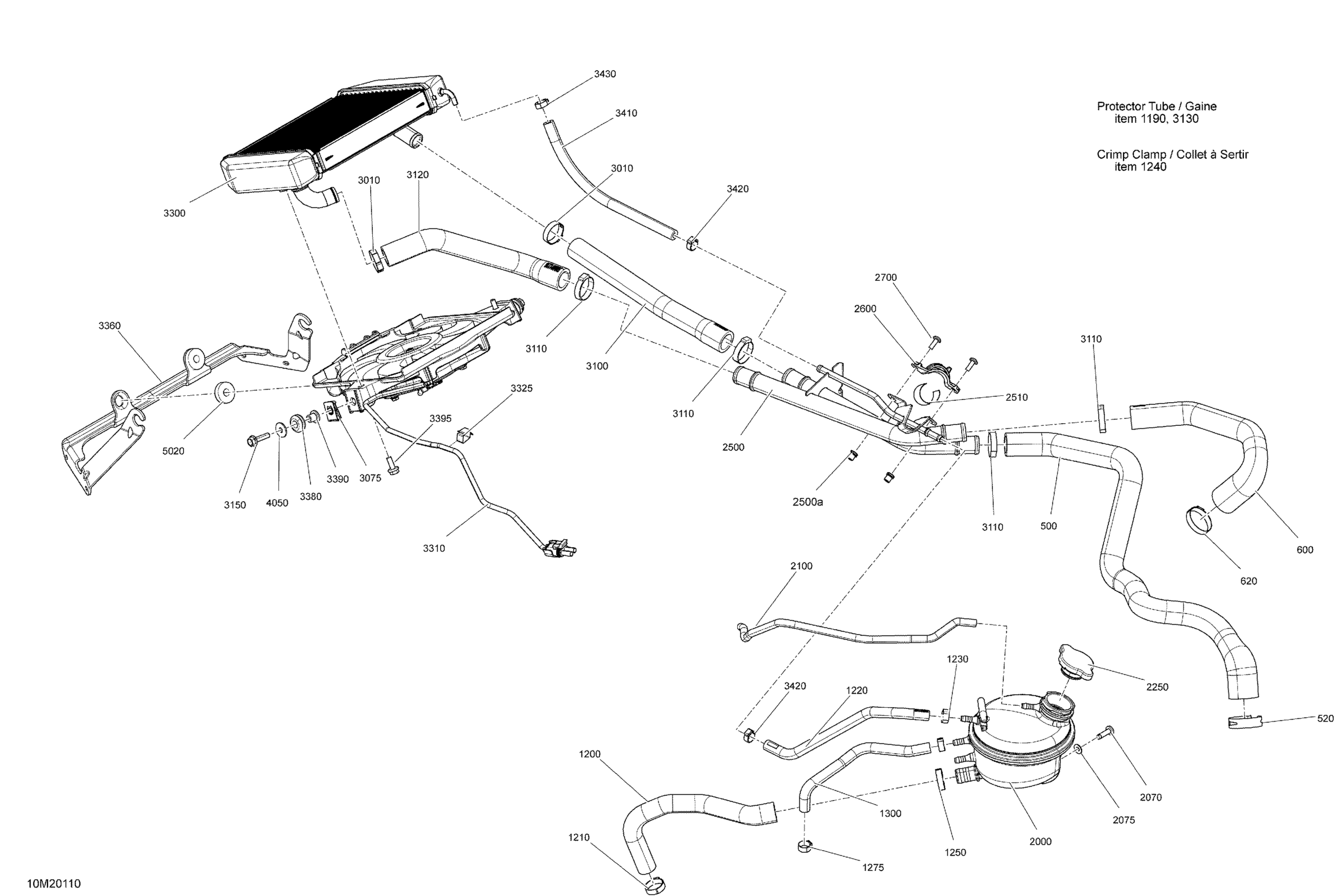

Ski-Doo 004 - EXPEDITION LE/SE 600R E-TEC - North America, 2020 03- Cooling - System Diagram

Description

Price

500

Hose

509001284

$29.99

520

Norma Spring Clamp

293650264

$4.44

600

Hose

509001161

$15.49

620

Oetiker Gear Clamp 36.1MM

509000045

$8.29

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1200

Hose

509001164

$15.49

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Hose

509001165

$15.49

1230

Oetiker Clamp

293650046

$2.89

1240

Crimp Clamp, 15.3-706R

293650047

$3.29

1250

Oetiker Clamp

509001041

$2.09

1275

Oetiker Clamp

293650046

$2.89

1300

Hose

509001457

$15.88

2000

Coolant Tank

509001040

$92.99

2070

Torx Screw M6 X 20

250000722

$1.68

2075

Flat Washer

250200039

$0.74

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2250

Radiator Pressure Cap

509000180

$20.49

2500

Tube | Includes 2500 to 2500a

509001227

$35.99

2500a

Insert M5 X 0.8

293450268

$2.09

2510

Protector

512061214

$2.11

2600

Clamp

509001049

$4.55

2700

Torx Screw M5 X 14

250000742

$1.47

3010

Crimp Clamp

293650099

$4.29

3075

Panel Nut M6 X 1.0

250100208

$1.46

3100

Hose

509001234

$18.49

3110

Oetiker Clamp

293650141

$4.29

3120

Hose

509001236

$18.49

3130

Protector Tube

707001349

$20.99

3150

Hex. Flange Screw M6 X 25

207562544

$1.69

3300

Radiator

509001037

$214.99

3310

Fan Ass'y

509001039

$239.99

3325

Clip

414227300

$1.67

3360

Support

509001046

$65.99

3380

Grommet

709000582

$4.69

3390

Bushing

293900100

$7.65

3395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

3410

was 709200646 Hose | Engine 800 Max Model

219704444

$13.22

3420

Oetiker Clamp

293650140

$2.69

3430

Oetiker Clamp

293650046

$2.89

4050

Flat Washer

250200082

$0.42

5020

Grommet

709200981

$0.77
