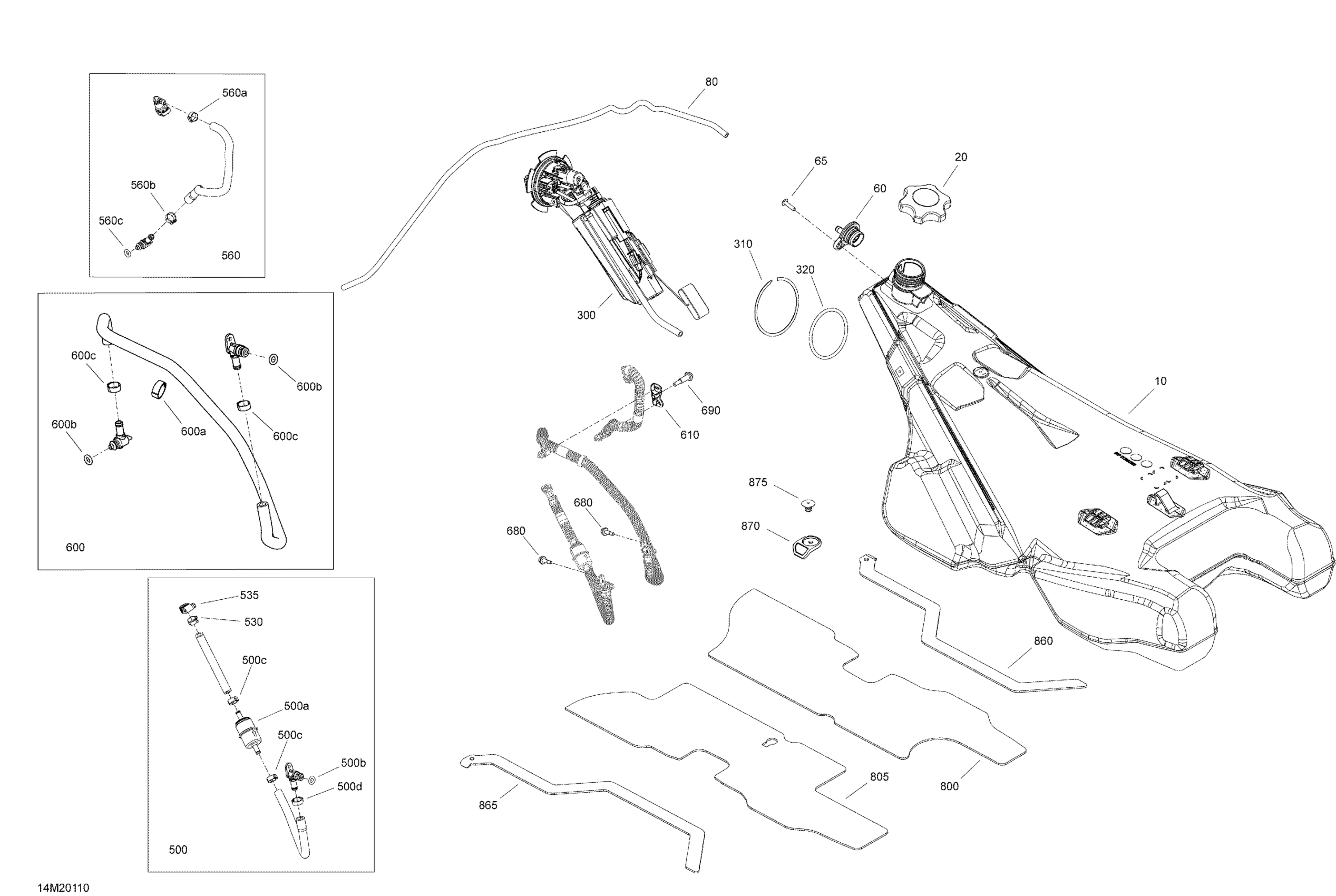

Ski-Doo EXPEDITION LE/SE 600R E-TEC - 2020 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513034099

$280.57

20

Fuel Tank Cap

513033860

$22.36

60

Check Valve

513033849

$34.30

65

Truss Torx Screw K40 X 16

250000918

$2.00

80

Polyurethane Hose 10000Mm Long

219704410

$46.12

300

Fuel Pump Ass'y | Includes 300 to 300c

513034082

$249.97

310

Circlip

513033798

$12.45

320

O-Ring

513033862

$17.13

500

Kit Hose Assy | Includes 500 to 500d This part replaces 513033918.

861805534

$77.58

500a

Fuel Filter

513034047

$35.99

500b

O-Ring

513033668

$9.16

500c

Oetiker Clamp

293650125

$2.69

500d

Crimp Clamp

293650053

$2.42

530

Tridon Gear Clamp

293650170

$1.74

535

Crimp Clamp, 15.3-706R

293650047

$2.64

560

Hose Ass'y | Includes 560 to 560c

513033932

$53.70

560a

Oetiker Clamp

293650125

$2.69

560b

Crimp Clamp

293650053

$2.42

560c

O-Ring

513033668

$9.16

600

Hose Ass`y | Includes 600 to 600c This part replaces 513034001.

415130221

$144.00

600a

Ring

513033910

$6.66

600b

O-Ring

513033668

$9.16

600c

Crimp Clamp

293650053

$2.42

610

Bracket

513033903

$1.22

680

Hex. Flange Screw M5 X 16

250000911

$0.70

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.07

800

Insulated Foam

513033871

$10.45

805

Insulated Foam

513033872

$10.45

860

RH Foam

513033981

$4.30

865

LH Foam

513033982

$4.30

870

Retainer Plate

513033917

$0.52

875

Pop Rivet 3/16" | DS 650 X

293150104

$0.86
