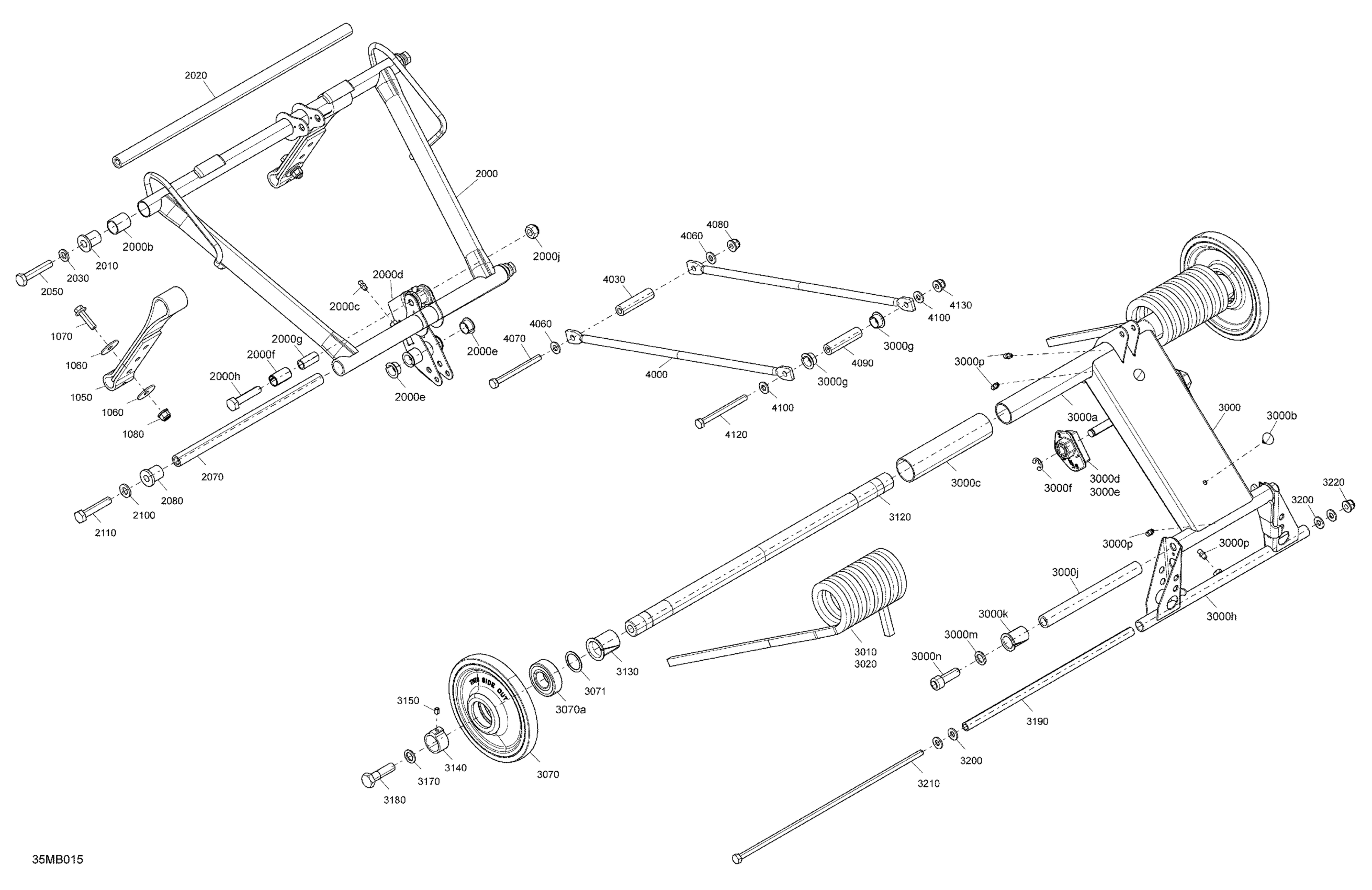

Ski-Doo EXPEDITION LE 600R E-TEC - 2022 Suspension - Rear - Upper Section Diagram

#

Description
Price

1050

Stopper Strap

503195313

$28.49

1060

Washer | Not Shown

503193995

$4.54

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

1080

Hex. Flange Elastic Nut M6

233261466

$2.00

2000

Front Arm Ass'y | Includes 2000 to 2000k

503195490

$269.99

2000b

Extended Bushing

503191556

$7.83

2000c

Grease Fitting

408200700

$3.49

2000d

Rocker

503192211

$83.99

2000e

Swivel Bushing

503191555

$7.83

2000f

Bushing

503193037

$16.18

2000g

Bushing | Includes 240d to 240d1

503189282

$4.34

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Bushing

503191262

$15.79

2020

Upper Shaft

503195664

$83.99

2030

Washer

503192496

$0.77

2050

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2070

Lower Shaft

503191390

$28.99

2080

Bushing

503189324

$14.15

2100

Washer

503192496

$0.77

2110

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3000

Rear Arm Ass'y | Includes 3000 to 3000q

503195402

$269.99

3000a

Rear Arm

503195403

Unavailable

3000b

Black, Dart

414644300

$0.98

3000c

Plastic Bushing

503191740

$7.83

3000d

LH Cam Adjuster

503191565

$16.49

3000e

RH Cam Adjuster

503191566

$16.49

3000f

E-Circlip

293370013

$0.65

3000g

Swivel Bushing

503191555

$7.83

3000h

Pivot Arm | Includes 3000j to 3000j3

503195154

$104.99

3000j

Lower Shaft

503192330

$45.99

3000k

Cushion

503191640

$5.93

3000m

Washer

503192491

$4.54

3000n

Socket Head Screw M12 X 35

205523554

$4.44

3000p

Grease Fitting

408200700

$3.49

3010

Black LH Square Spring

503192378

$111.49

3020

Black RH Square Spring

503192377

$111.49

3070

Wheel 165 | Includes 3070 to 3070a

503190803

$51.99

3070a

Ball Bearing

293350115

$12.11

3071

Washer

503190328

$12.65

3120

Upper Shaft

503195618

$83.99

3130

Cushion

503191451

$14.15

3140

Retaining Ring

503194366

$39.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503196491

$1.90

3180

Screw Hex Cap Din 931

207024554

$2.89

3190

Axle Pivot

503191396

$80.49

3200

Washer

503192494

$3.17

3210

Bolt 369MM

503195156

$25.99

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503191765

$18.49

4030

Axle Bar (Long)

503190643

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar (Long)

503190643

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01
