Description

Price

10a

Driver Seat Base

510007142

$72.99

10b

Driver Seat Foam

510006413

$329.99

10c

Driver Seat Cover

510006414

$203.99

20

Seat Support Ass'y | Includes 20 to 20b

510007010

$86.99

20b

Insert M5 X 0.8

293450268

$2.09

30

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

60

Passenger Backrest Ass'y | Includes 60 to 60c

860202036

$319.49

60a.a.c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

60b

Hex. Flange Screw M6 X 35

207663544

$0.90

60c

Elastic Flange Nut M6 X 1.0

233261416

$2.11

80

Storage Box Ass'y | Includes 80 to 80m

510007165

$379.99

80b

Seal, 1PC = 3M

293830188

$39.99

80c

Latch

269502449

$4.39

80d

Box Cover

511001274

$39.99

80e

Access Cover

510006789

$8.74

80f

Torx-Truss Screw K40 X 10

250001034

$0.98

80g

Torx Screw M5 X 20

250000724

$1.69

80h

Warning Label

516009465

Unavailable

80j

Retaining Cable

293750092

$12.99

80k

Plastite Screw M4 X 10

250000805

$2.11

130a.a

Passenger Seat Base

510006410

$72.99

130a.b

Passenger Seat Foam

510006411

$329.99

130a.c

Passenger Seat Cover

510006412

$203.99

130a.d

Seat wiring Harness

515178588

$51.99

130b

Avdel Rivet

293150027

$2.49

130c

Passenger Chassis Module Ass'y | Includes 130c to 130c.b

510006817

$429.99

130c.b

Cushion

506152520

$15.72

130d

Warning Label

516009941

$0.01

130e

Seat Trim

510006736

$12.99

130f

Tuflok Plastic Rivet

293150230

$1.47

140a.a

LH Ext. Passenger Hand Hold

510006492

$67.99

140a.b

LH Int. Passenger Hand Hold

510006527

$67.99

140a.c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$102.99

140a.d

LH Passenger Handle Deflector

510006495

$28.99

140a.e

Screw M4 X 16

250000889

$3.09

140a.f

Torx-Truss M/S M5 X 14

250000941

$2.11

140a.g

Rocker Switch

515178505

$27.49

140a.h

Heated Grip Wiring Harness

515178464

$28.99

140b.a

RH Ext. Passenger Hand Hold

510006486

$67.99

140b.b

RH Int. Passenger Hand Hold

510006487

$67.99

140b.c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$102.99

140b.d

RH Passenger Handle Deflector

510006489

$28.99

140b.e

Screw M4 X 16

250000889

$3.09

140b.f

Torx-Truss M/S M5 X 14

250000941

$2.11

140c

Passenger Handle Trim

510006602

$13.99

140d

Torx Truss M/S M8 x 35

250000753

$1.15

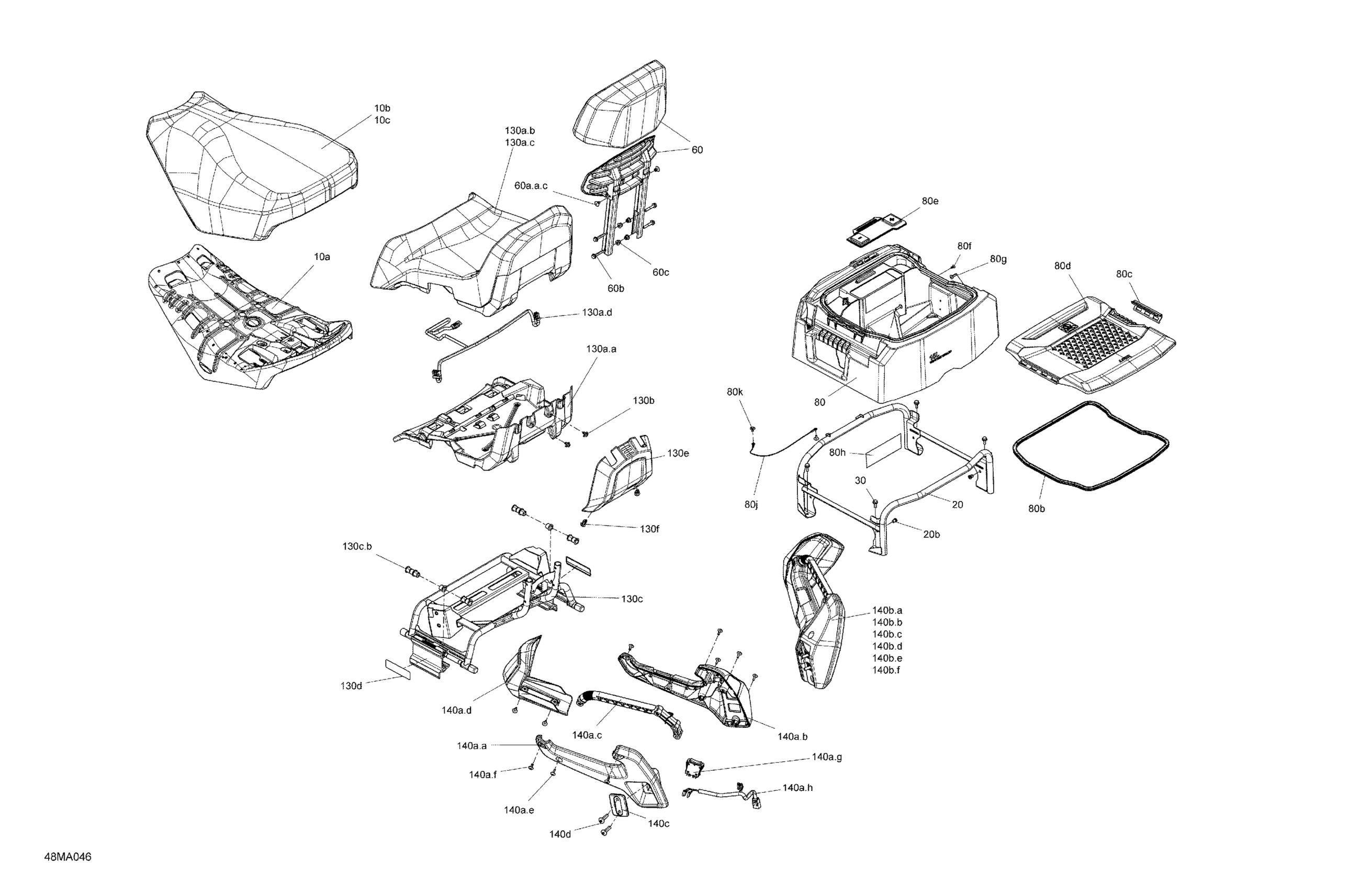

Ski-Doo 004 - EXPEDITION LE 600R E-TEC - North America, 2021 07- Body - Seat Diagram

Driver Seat Base

Driver Seat Foam

Driver Seat Cover

Seat Support Ass'y | Includes 20 to 20b

Insert M5 X 0.8

Hex. Flange Screw M6 X 16, Scotch Grip

Passenger Backrest Ass'y | Includes 60 to 60c

Pop Rivet 3/16" | DS 650 X

Hex. Flange Screw M6 X 35

Elastic Flange Nut M6 X 1.0

Storage Box Ass'y | Includes 80 to 80m

Seal, 1PC = 3M

Latch

Box Cover

Access Cover

Torx-Truss Screw K40 X 10

Torx Screw M5 X 20

Warning Label

Retaining Cable

Plastite Screw M4 X 10

Passenger Seat Base

Passenger Seat Foam

Passenger Seat Cover

Seat wiring Harness

Avdel Rivet

Passenger Chassis Module Ass'y | Includes 130c to 130c.b

Cushion

Warning Label

Seat Trim

Tuflok Plastic Rivet

LH Ext. Passenger Hand Hold

LH Int. Passenger Hand Hold

Passenger Heated Handhold | Includes 140a3 to 140a3b

LH Passenger Handle Deflector

Screw M4 X 16

Torx-Truss M/S M5 X 14

Rocker Switch

Heated Grip Wiring Harness

RH Ext. Passenger Hand Hold

RH Int. Passenger Hand Hold

Passenger Heated Handhold | Includes 140a3 to 140a3b

RH Passenger Handle Deflector

Screw M4 X 16

Torx-Truss M/S M5 X 14

Passenger Handle Trim

Torx Truss M/S M8 x 35
